SUBARU Intelligent Drive System (From '07 MY): Controls

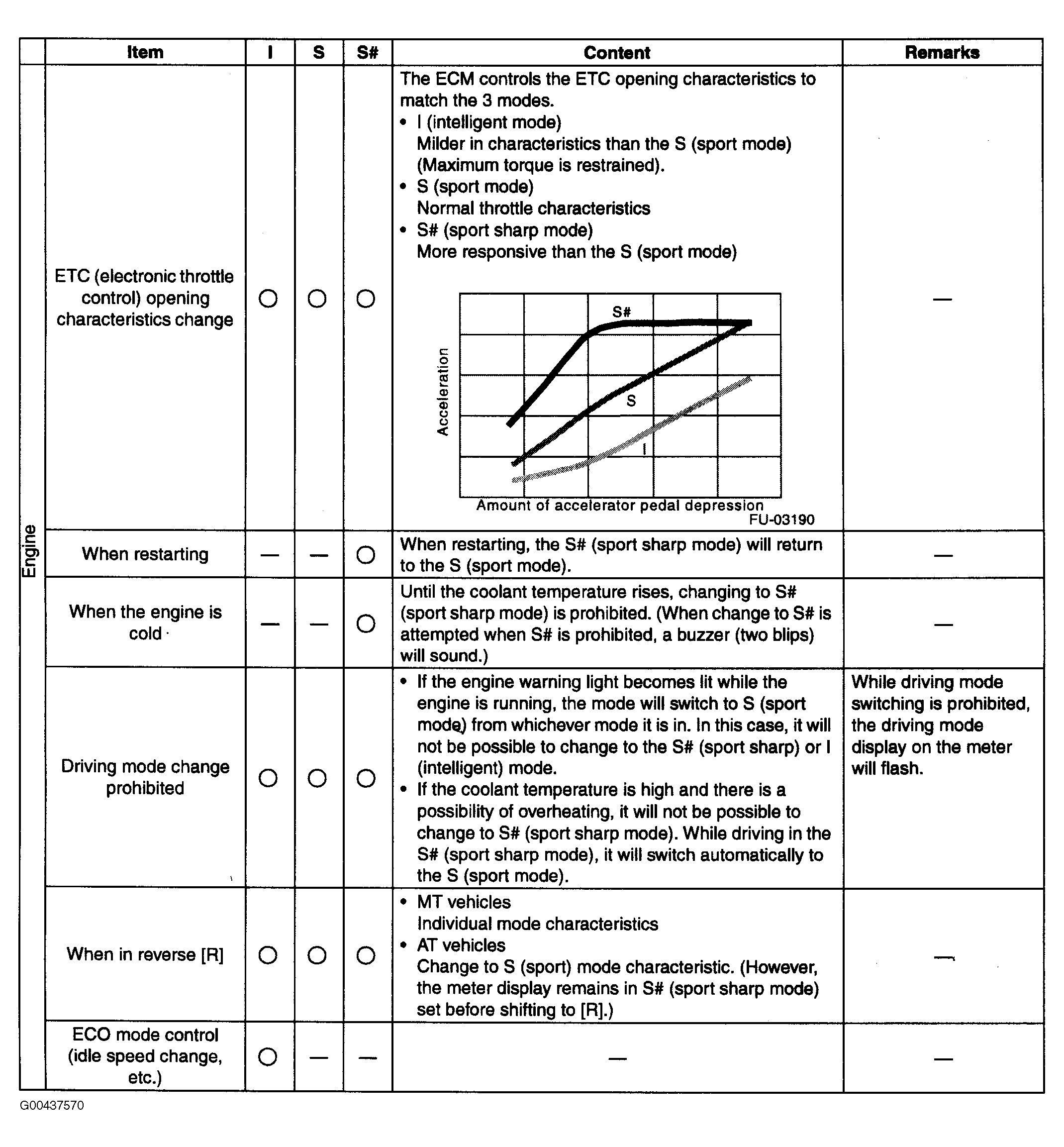

Fig 1: Subaru Intelligent Drive System Controls Table (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

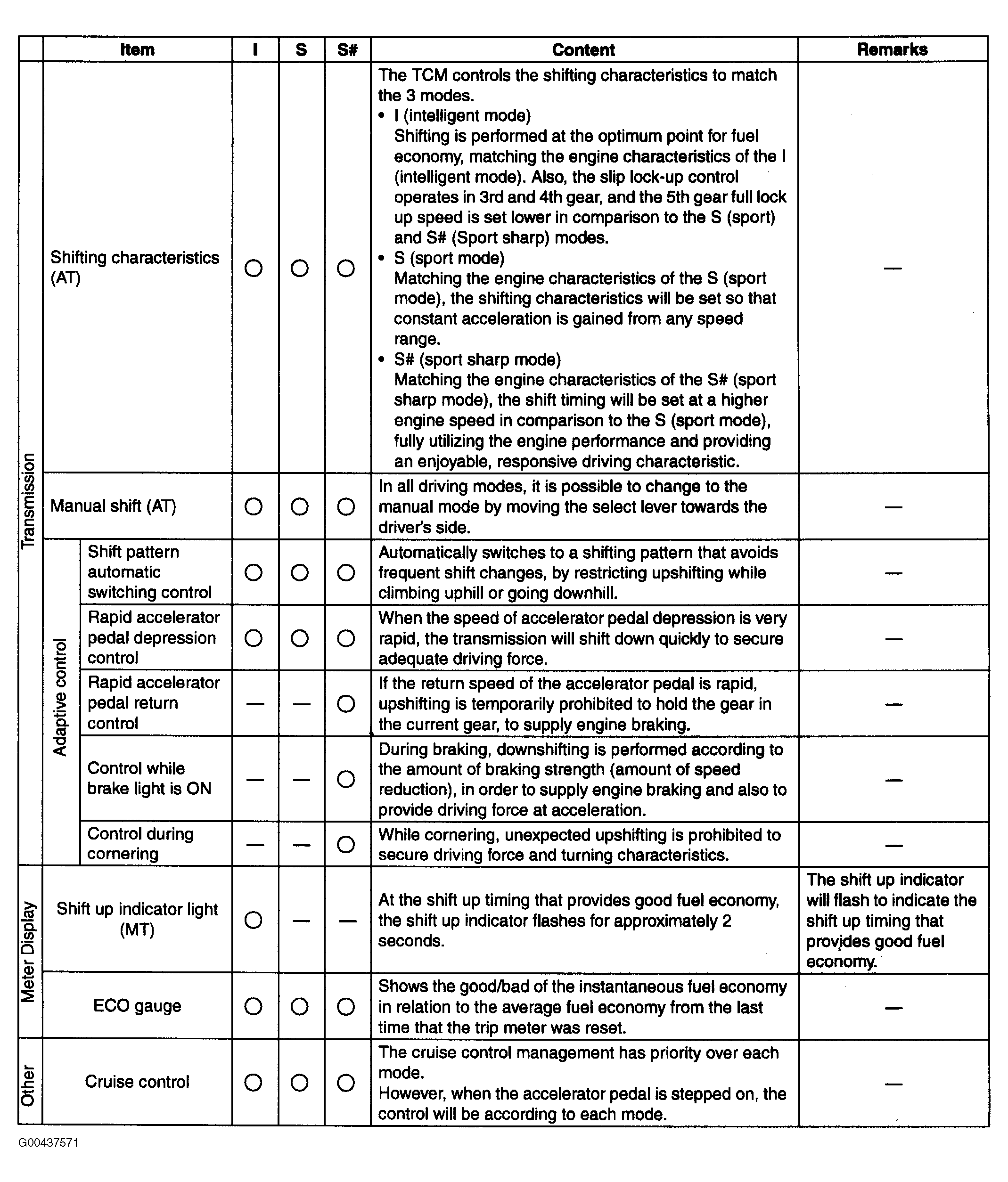

Fig 2: Subaru Intelligent Drive System Controls Table (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
