Home >> Subaru >> 2007 >> Outback XT Limited, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Lubrication System >> Engine Lubrication System (H4DOTC) >> General Description >> Components With Torque Specifications

Components With Torque Specifications

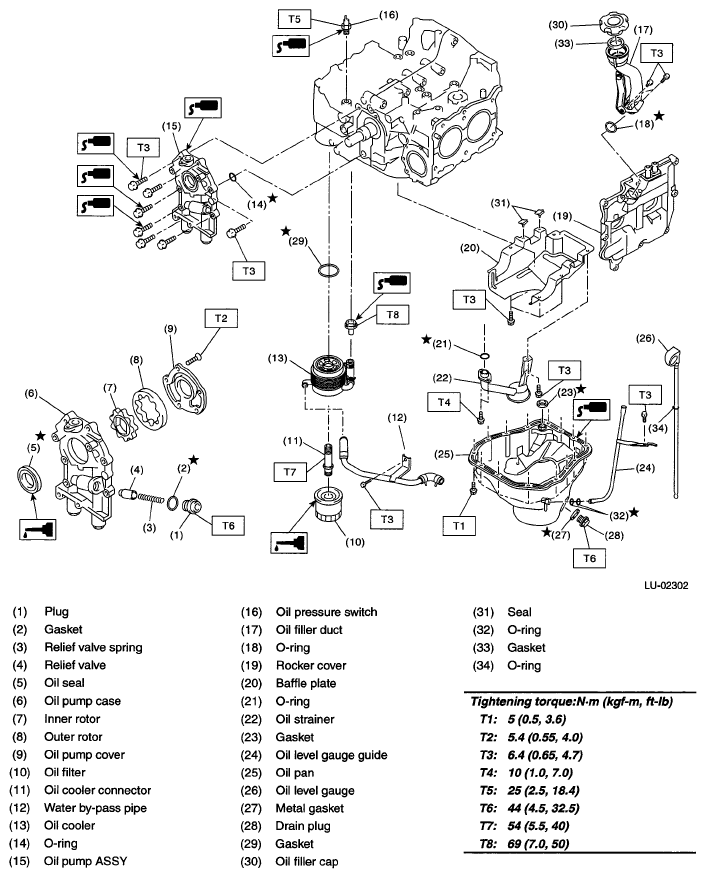

Fig 1: Lubrication System Replacement Components With Torque Specifications

G05340693

Courtesy of SUBARU OF AMERICA, INC.
