Front Transverse Link: Removal

Set the vehicle on a lift.
Lift-up the vehicle and remove the wheel.
Remove the sub frame.
Disconnect the stabilizer link from transverse link.
Remove the bolt securing ball joint of transverse link to housing.
- Sedan model

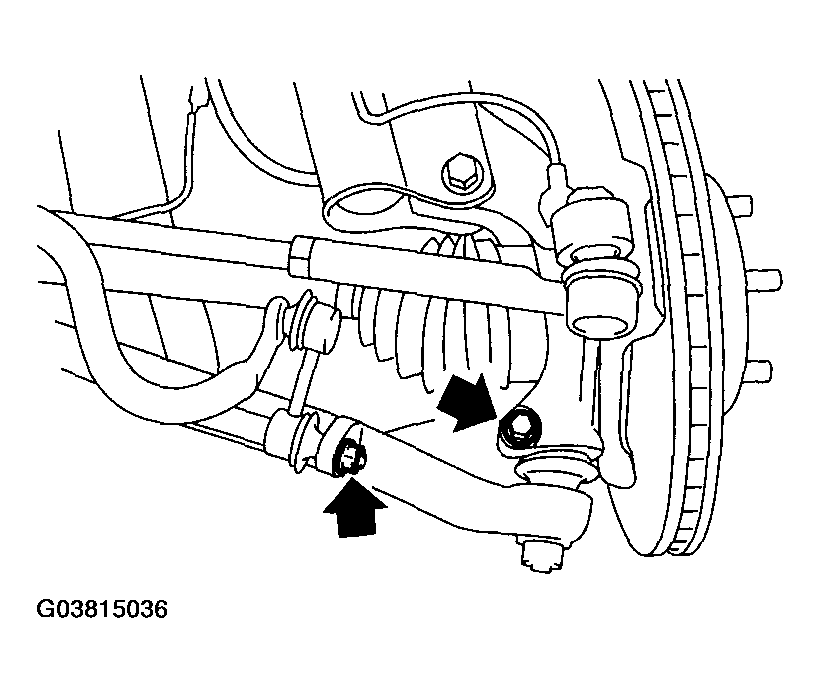

  Fig 1: Locating Bolt Securing Ball Joint Of Transverse Link To Housing (Sedan Model)
  Courtesy of SUBARU OF AMERICA, INC.
- Wagon model

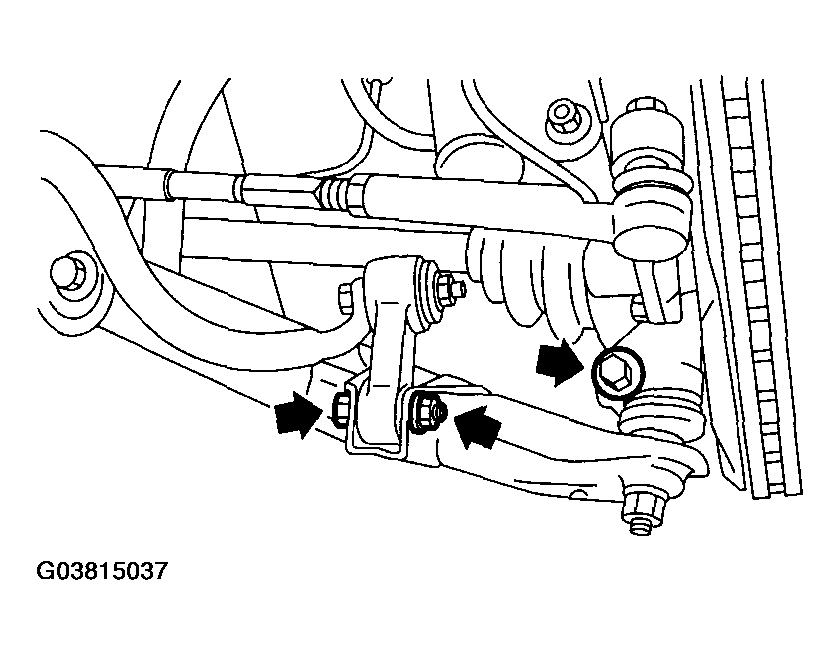

  Fig 2: Locating Bolt Securing Ball Joint Of Transverse Link To Housing (Wagon Model)
  Courtesy of SUBARU OF AMERICA, INC.
Remove the nut (do not remove bolt) securing transverse link to crossmember.
Remove the two bolts securing bushing bracket of transverse link to the vehicle body at rear bushing location.

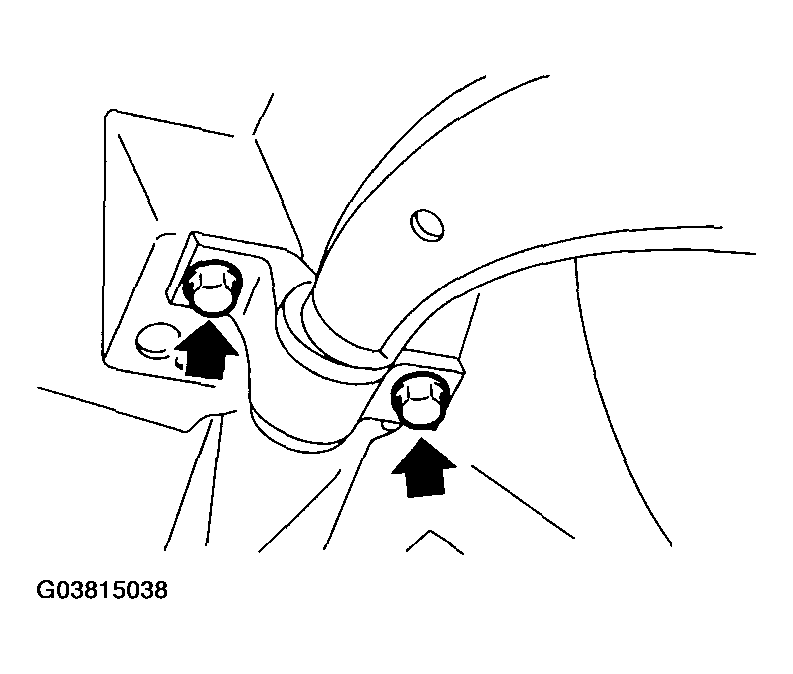

Fig 3: Locating Bushing Bracket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Extract the ball joint from housing.
Remove the bolt securing transverse link to crossmember, and then extract the transverse link from crossmember.

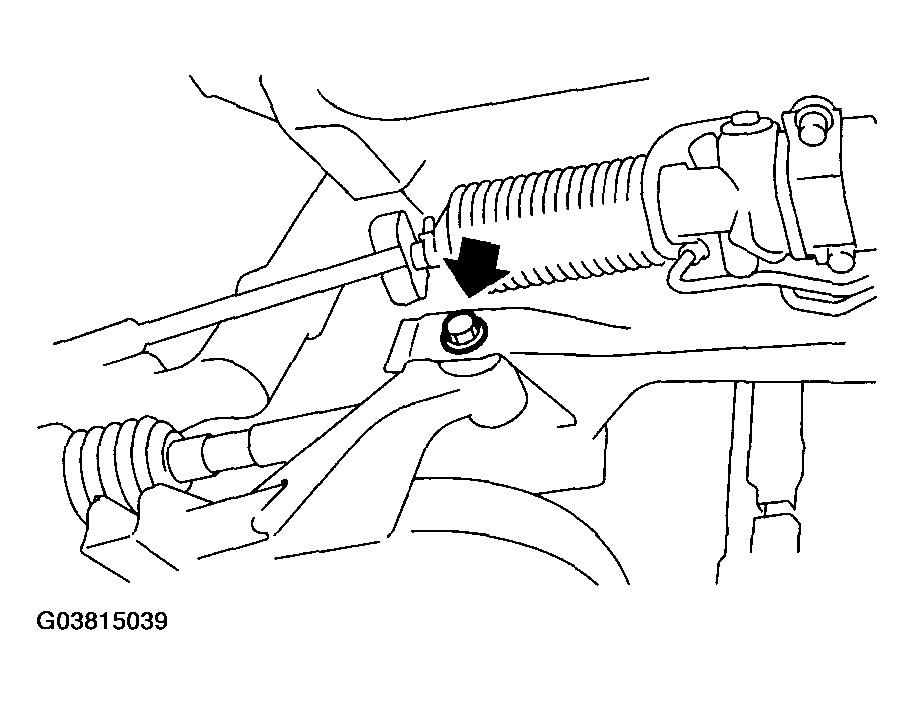

Fig 4: Locating Bolt Securing Transverse Link To Crossmember
Courtesy of SUBARU OF AMERICA, INC.
