Front Bushing

Assemble in the reverse order of disassembly.

CAUTION: Install the front bushing in correct direction, as shown in Fig 1 .

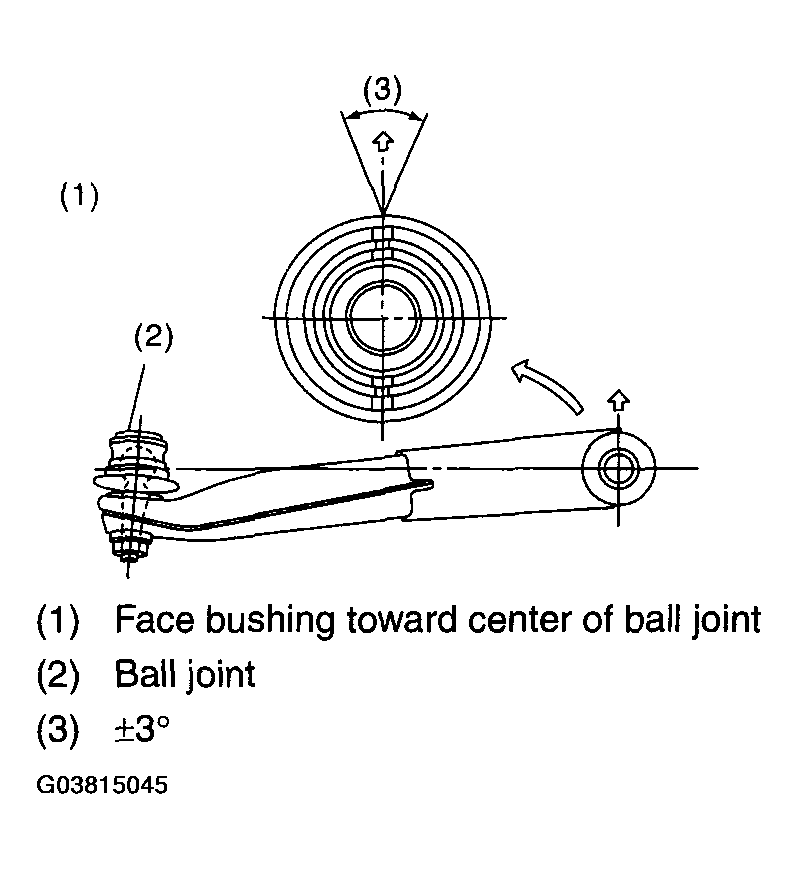

Fig 1: Identifying Front Bushing
G03815045Courtesy of SUBARU OF AMERICA, INC.
