TURBO MODEL AND STi MODEL

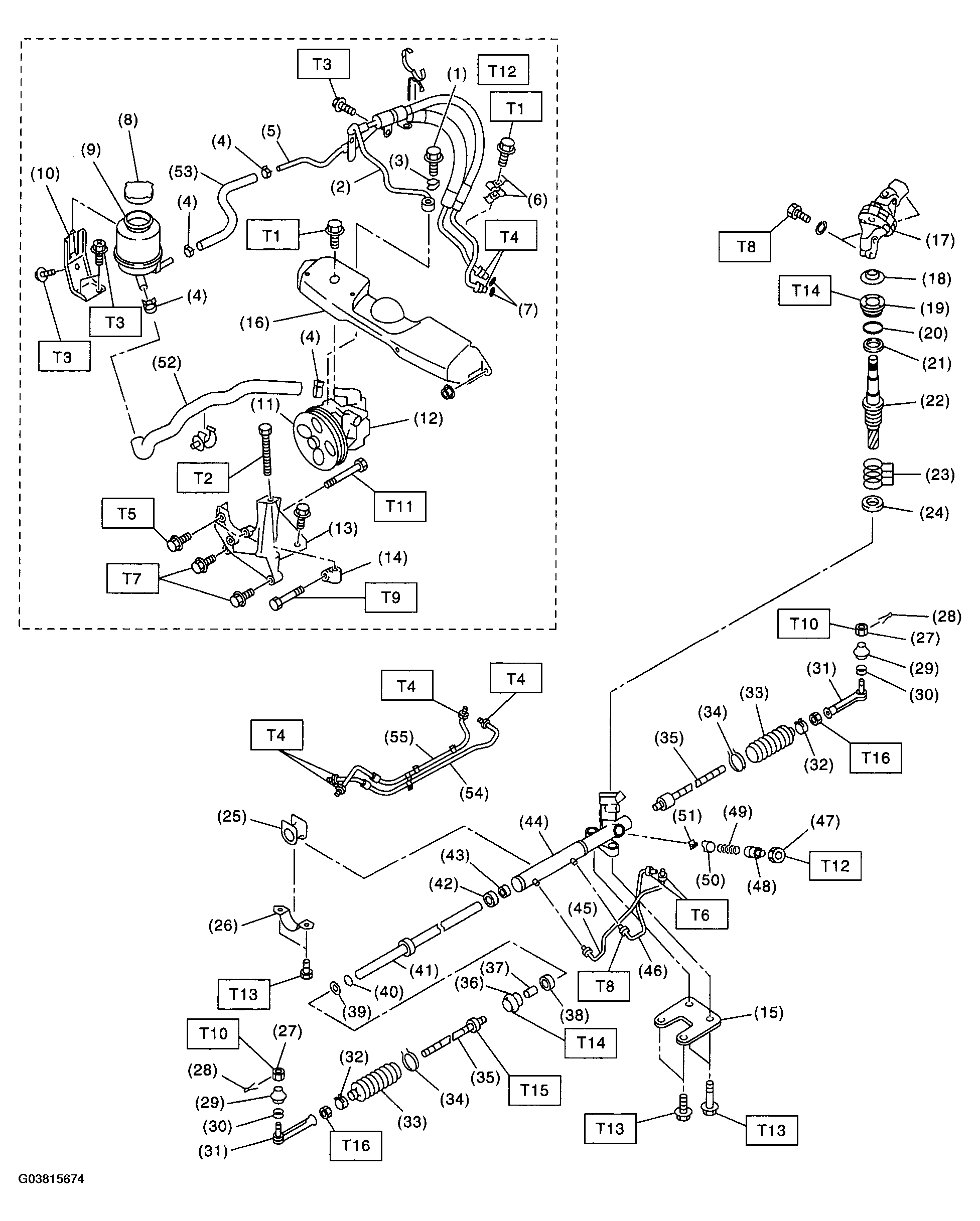

Fig 1: Exploded View Of Power Assisted System (Turbo Model And STI Model)
G03815674Courtesy of SUBARU OF AMERICA, INC.

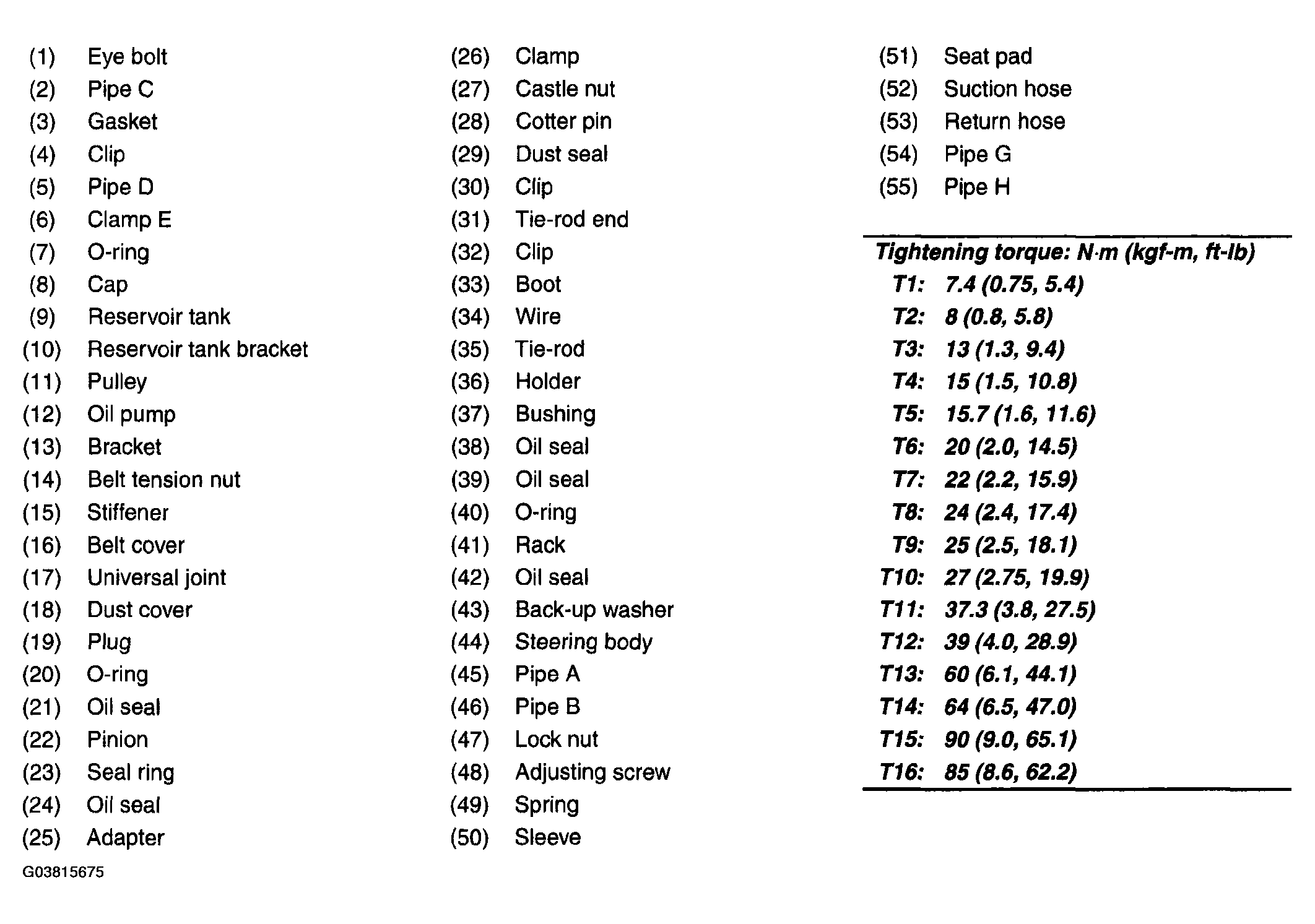

Fig 2: Power Assisted System Reference Table (Turbo Model And STi Model)
G03815675Courtesy of SUBARU OF AMERICA, INC.
