STi MODEL

WARNING: This page is about a different car, the 2006 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the four bolts from housing, and remove the front hub unit bearing.

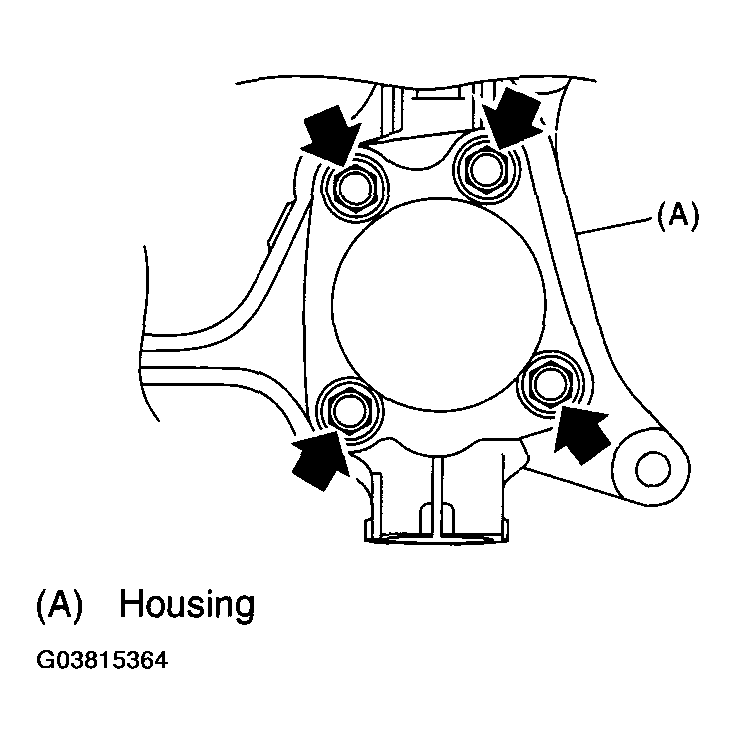

    Fig 1: Removing Bolts From Housing
    G03815364Courtesy of SUBARU OF AMERICA, INC.
  2. Disassemble the front hub unit bearing. < Ref. to DISASSEMBLY , Front Axle. >
