• Except for STI model

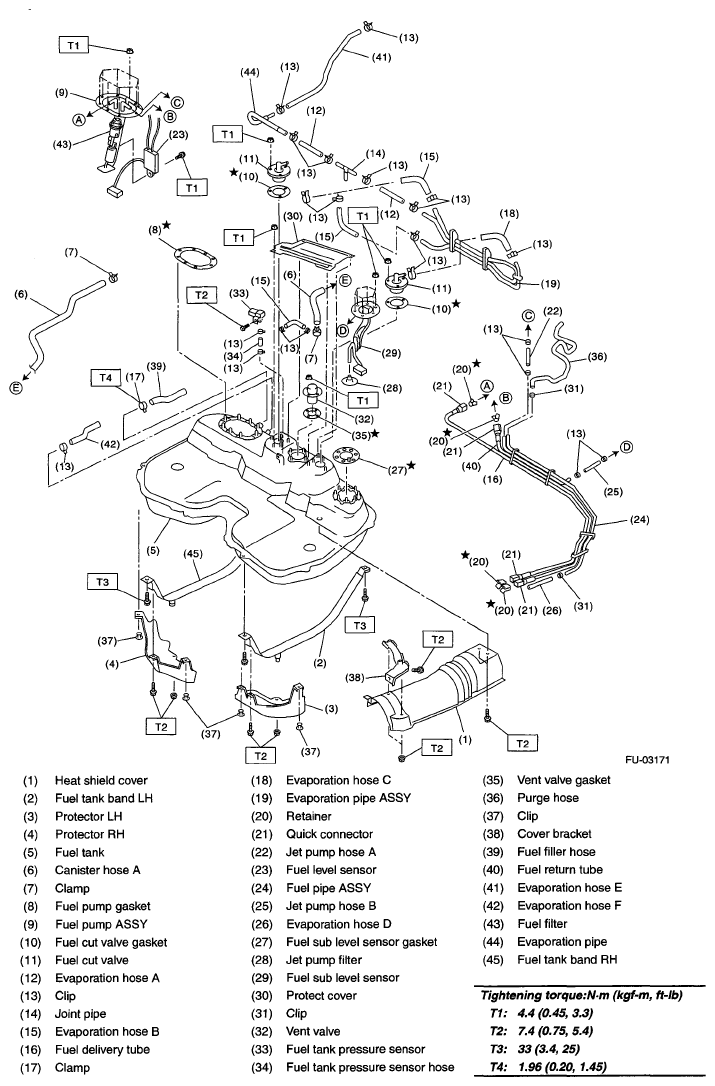

Fig 1: Fuel Tank Replacement Components (Except For STI Model) With Torque Specifications

G05333445

Courtesy of SUBARU OF AMERICA, INC.
