Sub Frame Alignment

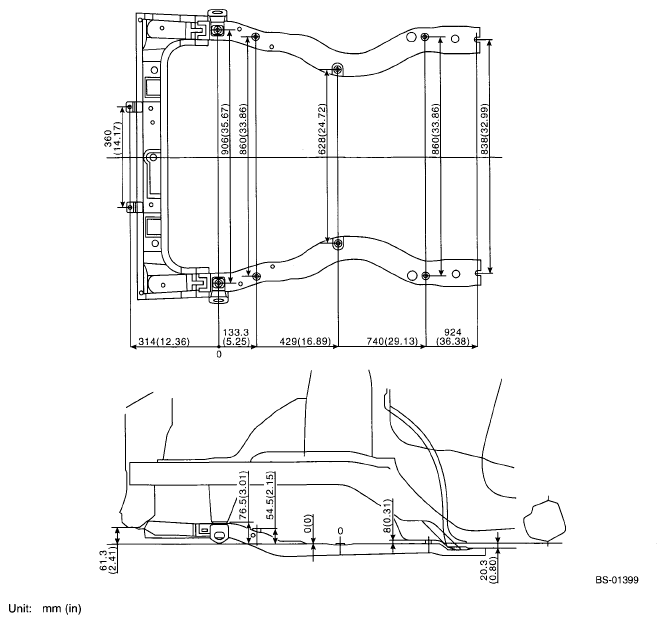

Fig 1: Identifying Sub Frame Alignment

G05004295

Courtesy of SUBARU OF AMERICA, INC.

Horizontal and vertical dimensions are values measured from datum points (0).
