Reservoir Tank: Installation

  1. Install the reservoir tank to bracket.
  2. Connect pipe D to return hose and suction hose to oil pump.

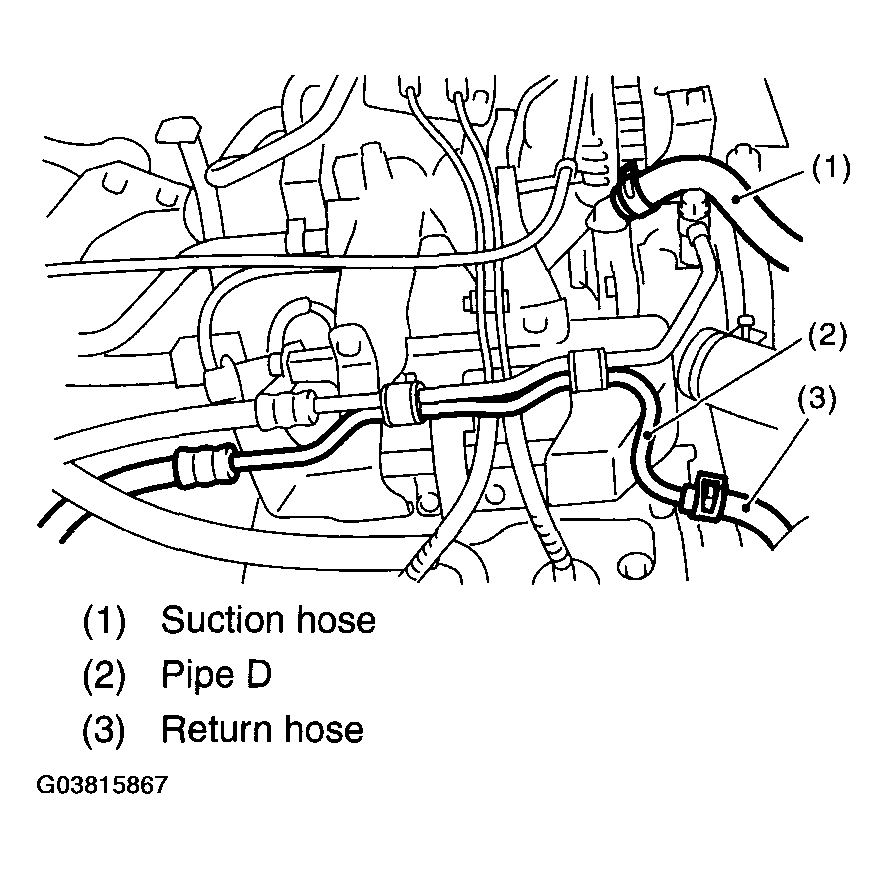

    Fig 1: Identifying Pipe D To Return Hose And Suction Hose To Oil Pump
    G03815867Courtesy of SUBARU OF AMERICA, INC.
  3. Feed the power steering fluid to the specified level. < Ref. to POWER STEERING FLUID . >
