Front Drive Shaft Assembly: Notes
WARNING: This page is about a different car, the 2006 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

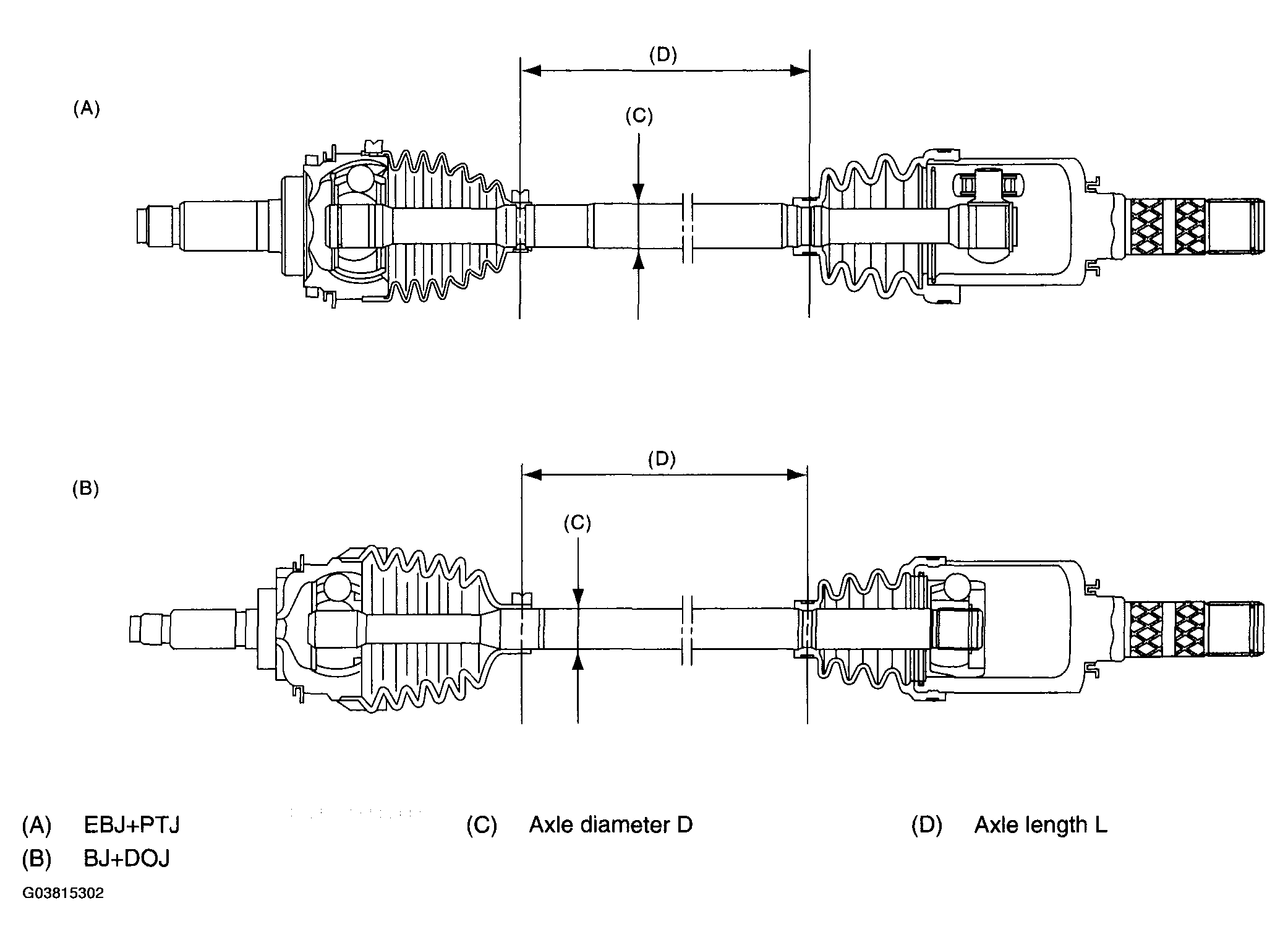

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATION
| Model | Type of drive shaft | Axle diameter D mm (in) | Axle length L mm (in) | |
|---|---|---|---|---|
| Sedan | Non-turbo, Turbo AT | EBJ+PTJ | 26 (1.02) | 338.8 (13.34) |
| Turbo MT (except for STi) | EBJ+PTJ | 28 (1.10) | 338.8 (13.34) | |
| Turbo MT (STi) | BJ+DOJ | 28 (1.10) | 295.6 (11.64) | |
| Wagon | Non-turbo, Turbo AT | EBJ+PTJ | 26 (1.02) | 329.6 (12.98) |
| Turbo MT | EBJ+PTJ | 28 (1.10) | 329.6 (12.98) | |
