Front Axle: Installation
WARNING: This page is about a different car, the 2006 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.
- Temporarily tighten the front axle to front strut.
- Insert the front drive shaft into front axle.
- Temporarily tighten the axle nut.
- Install the transverse link ball joint to housing.
Tightening torque:
50 N.m (5.1 kgf-m, 37 ft-lb)
- While aligning the alignment mark on the camber adjusting bolt head, tighten the housing and strut using a new self-locking nut.
Tightening torque:
175 N.m (17.8 kgf-m, 129 ft-lb)

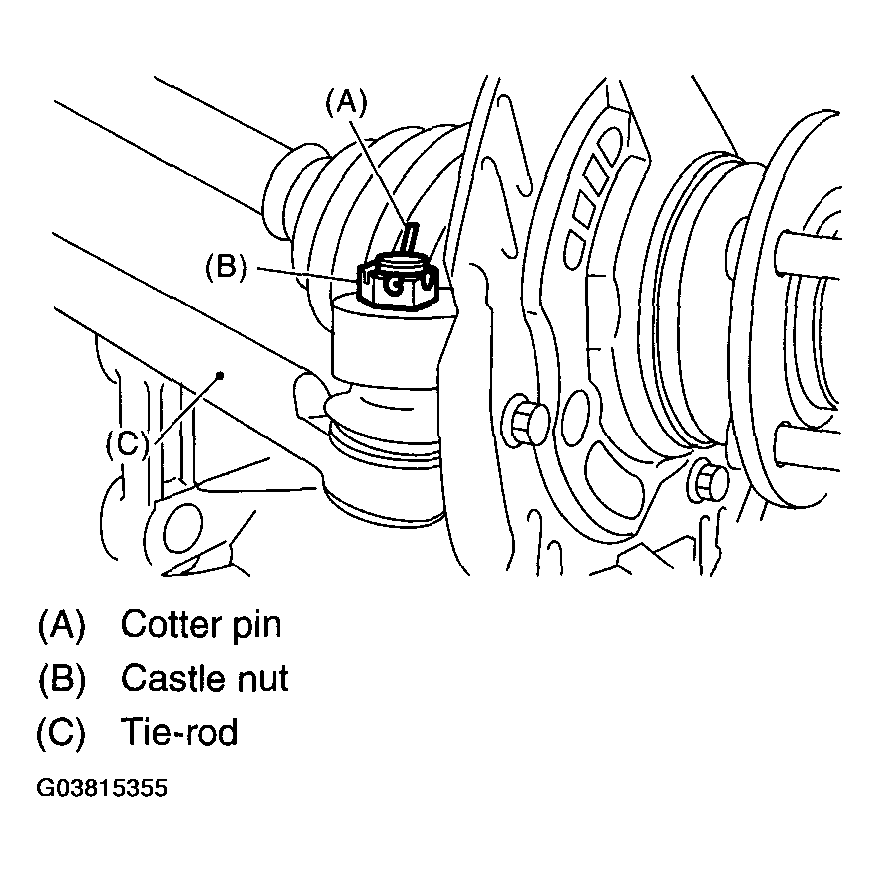

- Connect the tie-rod end ball joint to the knuckle arm with a castle nut.
Tightening torque:
27.0 N.m (2.75 kgf-m, 19.9 ft-lb)
CAUTION: When connecting, do not hit the cap at bottom of tie-rod with hammer. - Tighten the castle nut to specified torque and tighten further within 60° until the pin hole is aligned with the slot in nut. Bend the cotter pin to lock.
- Install the disc rotor on hub.
- Install the disc brake caliper on housing.
Tightening torque:
Except STi model
80 N.m (8.2 kgf-m, 59 ft-lb)
STi model
155 N.m (15.8 kgf-m, 114.3 ft-lb)
- Connect the stabilizer link.
Tightening torque:
Except STi model
30 N.m (3.1 kgf-m, 22 ft-lb)
STi model
45 N.m (4.6 kgf-m, 33 ft-lb)

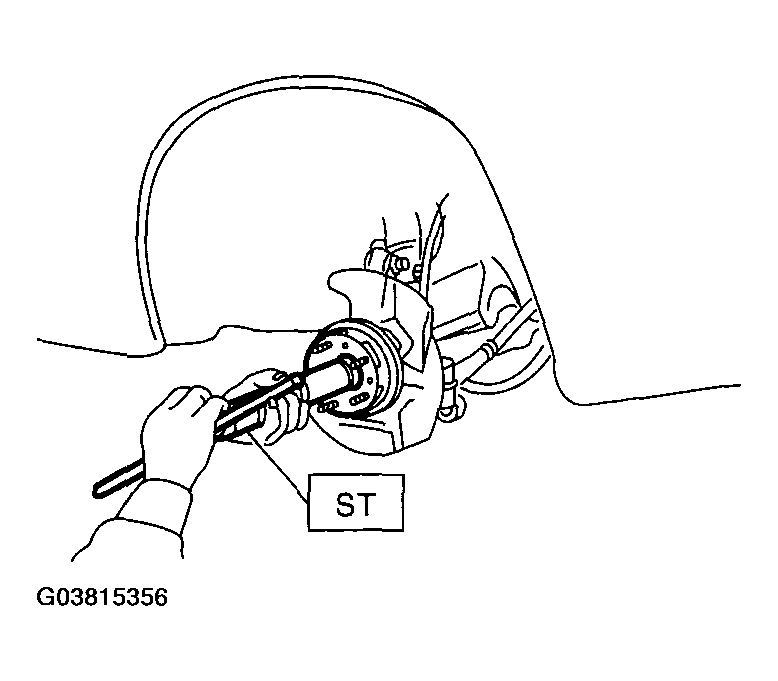

CAUTION: Use a new self-locking nut. - Using the ST1 and ST2, pull the front drive shaft into place.
ST1 922431000 AXLE SHAFT INSTALLER
ST2 927390000 ADAPTER
- While depressing the brake pedal, tighten a new axle nut to specified torque and lock it securely
Tightening torque:
220 N.m (22.4 kgf-m, 162 ft-lb)

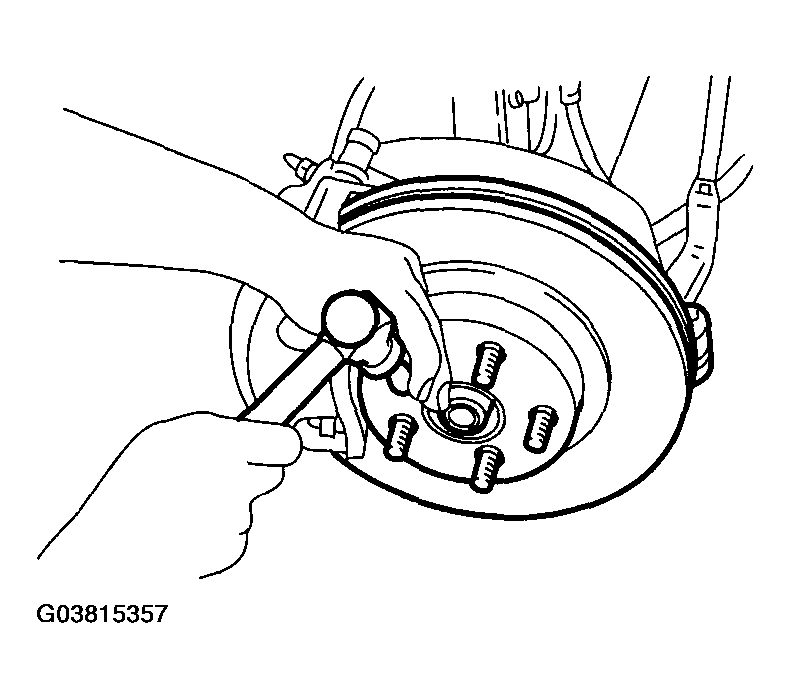

CAUTION: Be sure to tighten the axle nut to specified torque. Do not overtighten it as this may damage the wheel bearing. - After tightening the axle nut, lock it securely.
- Install the ABS wheel speed sensor on housing.
Tightening torque:
33 N.m (3.4 kgf-m, 24.3 ft-lb)
- Install the wheel and tighten the wheel nuts to specified torque.
Tightening torque:
90 N.m (9.2 kgf-m, 66 ft-lb)
