Wagon Model/Sedan Model

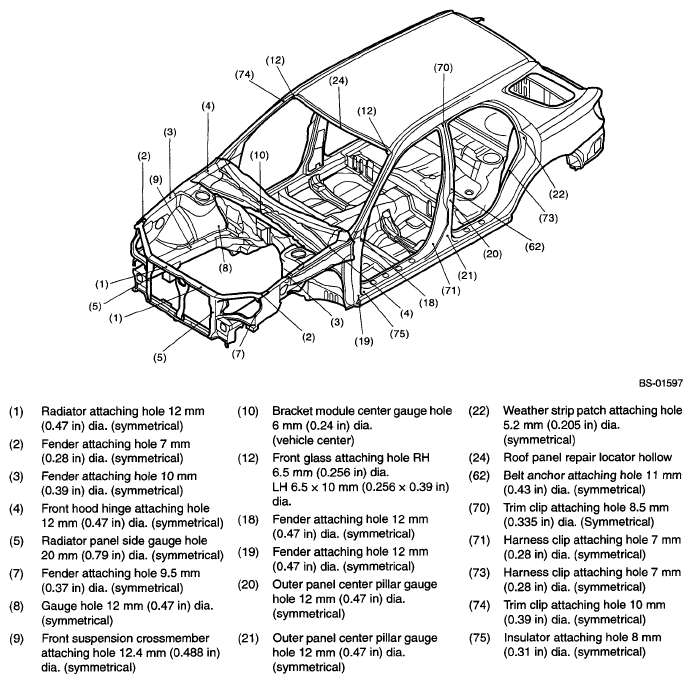

Fig 1: Identifying Datum Points For Wagon Model/Sedan Model

G05336943

Courtesy of SUBARU OF AMERICA, INC.
