Center Structure

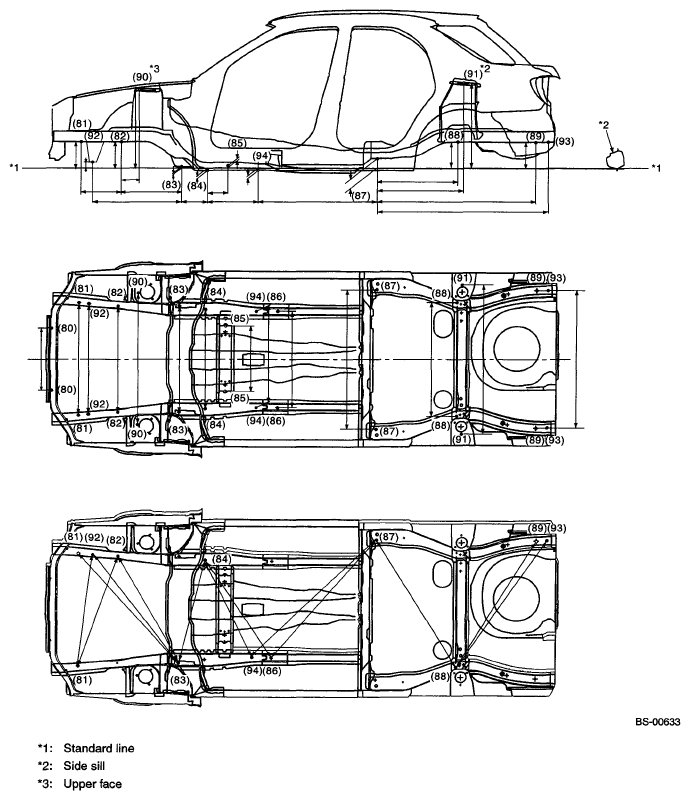

CENTER STRUCTURE DIMENSIONS
| Point of measurement | Dimension mm (in) |
|---|---|
| Datum line to (81) | 206 (8.11) |
| Datum line to (92) | 77 (3.03) |
| Datum line to (82) | 206 (8.11) |
| Datum line to (90) | 620 (24.41) |
| Datum line to (83) | 8 (0.31) |
| Datum line to (84) | 20 (0.79) |
| Datum line to (85) | 13 (0.51) |
| Datum line to (94) | 12 (0.47) |
| Datum line to (87) | 76 (2.99) |
| Datum line to (88) | 206 (8.11) |
| Datum line to (91) | 674 (26.54) |
| Datum line to (89) | 205 (8.07) |
| (81) to (82) | 317 (12.48) |
| (82) to (90) | 157 (6.18) |
| (82) to (83) | 485 (19.09) |
| (92) to (83) | 694 (27.32) |
| (83) to (84) | 206 (8.11) |
| (84) to (85) | 159 (6.26) |
| (84) to (94) | 380 (14.96) |
| (94) to (87) | 982 (38.66) |
| (87) to (88) | 633 (24.92) |
| (87) to (91) | 673 (26.50) |
| (87) to (89) | 1,258 (49.53) |
| (87) to (93) | 1,358 (53.46) |
| (80) RH to (80) LH | 500 (19.69) |
| (81) RH to (81) LH | 910 (35.83) |
| (92) RH to (92) LH | 906 (35.67) |
| (82) RH to (82) LH | 860 (33.86) |
| (90) RH to (90) LH | 1,065 (41.93) |
| (83) RH to (83) LH | 856 (33.70) |
| (84) RH to (84) LH | 800 (31.50) |
| (85) RH to (85) LH | 529 (20.83) |
| (94) RH to (94) LH | 776 (30.55) |
| (86) RH to (86) LH | 780 (30.71) |
| (87) RH to (87) LH | 1,128 (44.41) |
| (88) RH to (88) LH | 920 (36.22) |
| (91) RH to (91) LH | 1,205 (47.44) |
| (89) RH to (89) LH | 1,110 (43.70) |
| (93) RH to (93) LH | 1,110 (43.70) |
| (81) LH to (92) RH | 924 (36.38) |
| (81) LH to (82) RH | 940 (37.01) |
| (81) RH to (83) LH | 1,209 (47.60) |
| (92) RH to (83) LH | 1,124 (44.25) |
| (82) RH to (83) LH | 1,005 (39.57) |
| (83) LH to (84) RH | 854 (33.62) |
| (84) RH to (94) LH | 875 (34.45) |
| (84) RH to (86) LH | 951 (37.44) |
| (94) LH to (87) RH | 1,371 (53.98) |
| (86) LH to (87) RH | 1,269 (49.96) |
| (87) RH to (88) LH | 1,211 (47.68) |
| (88) LH to (89) RH | 1,192 (46.93) |
| (88) LH to (93) RH | 1,247 (49.09) |
