Universal Joint: Inspection

Check for wear, damage, or any other faults. If necessary, replace.

Service limit:

Universal joint play:

0 mm (0 in)

Maximum swing torque:

0.3 N (0.03 kgf, 0.07 lb)

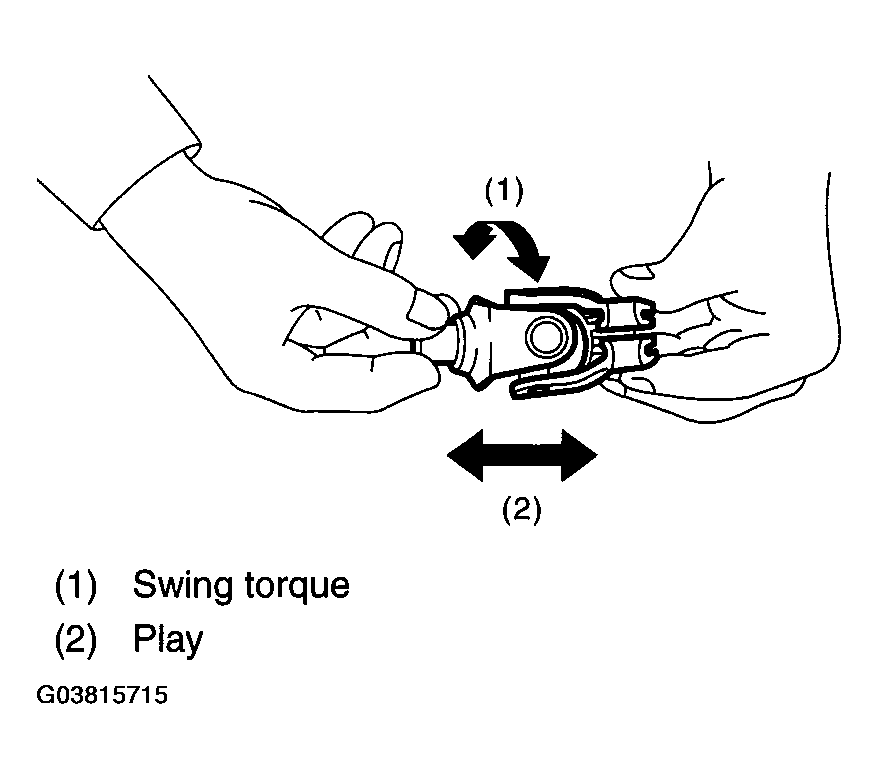

Fig 1: Checking Universal Joint Play

Courtesy of SUBARU OF AMERICA, INC.

Measurement of swing torque of universal joint is as shown in Fig 2, Yoke (Gearbox Side), Fig 3 Yoke (Gearbox Side), Fig 4 Yoke (Steering Column Side) & Fig 5 Yoke (Steering Column Side).

Service limit:

Maximum load: 3.8 N (0.39 kgf, 0.86 lb) or less

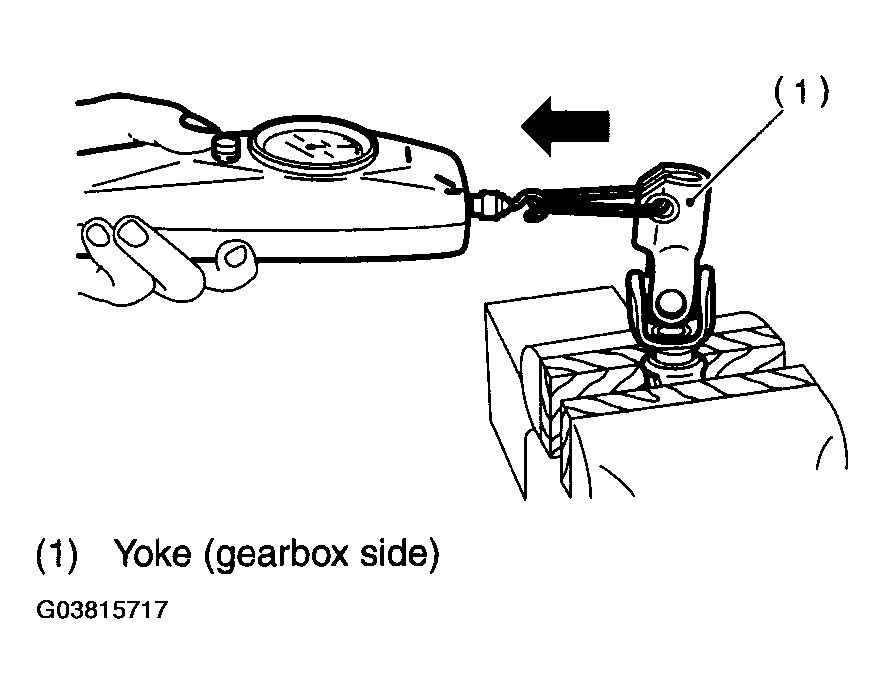

Fig 2: Checking Swing Torque Of Universal Joint (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Maximum load: 3.8 N (0.39 kgf, 0.86 lb) or less

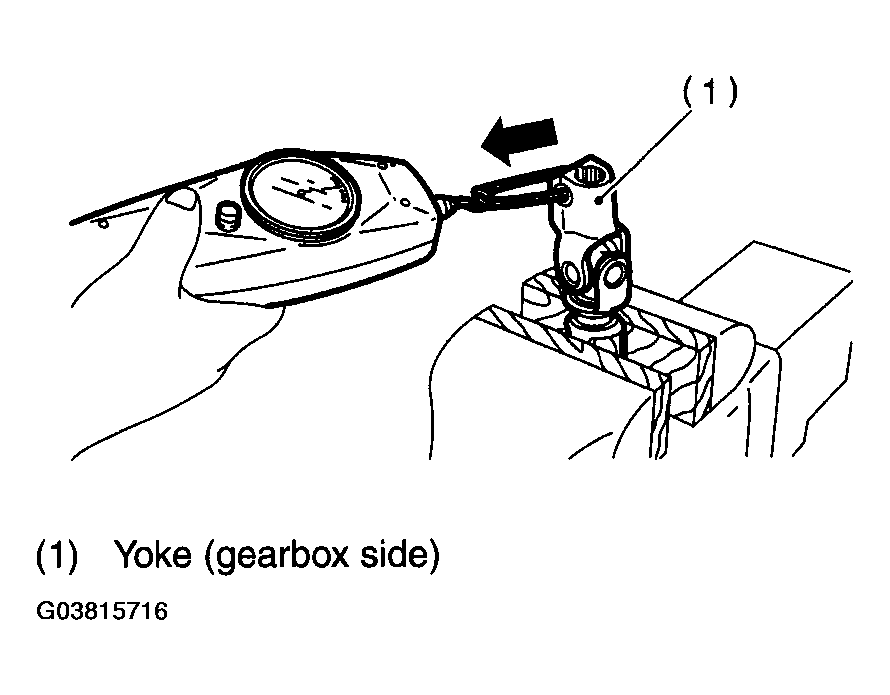

Fig 3: Checking Swing Torque Of Universal Joint (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Maximum load: 7.3 N (0.74 kgf, 1.64 lb) or less

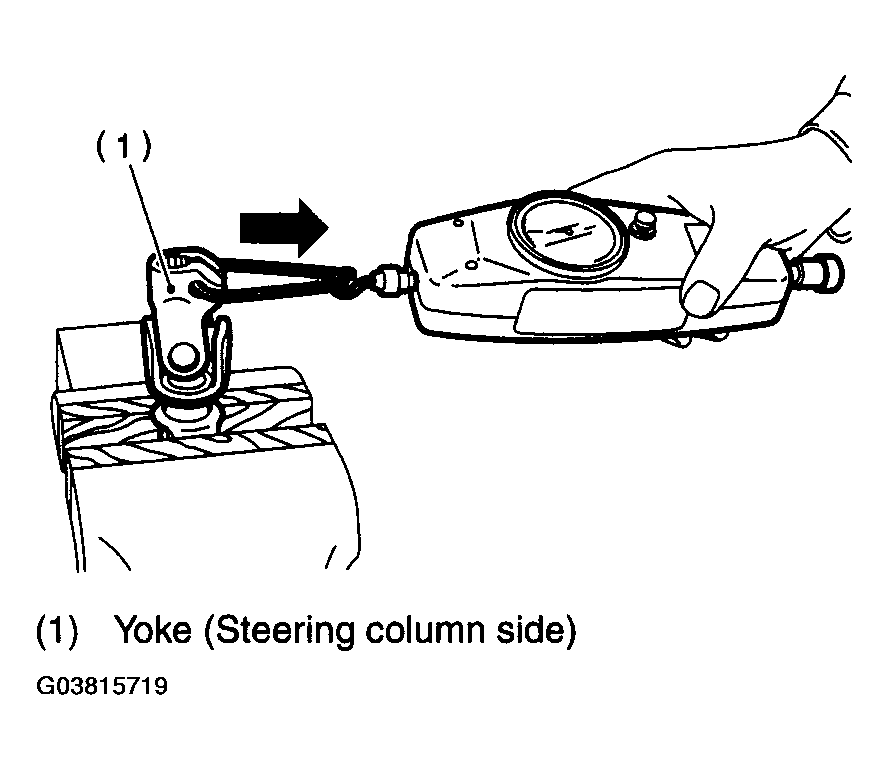

Fig 4: Checking Swing Torque Of Universal Joint (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Service limit:

Maximum load: 7.3 N (0.74 kgf, 1.64 lb) or less

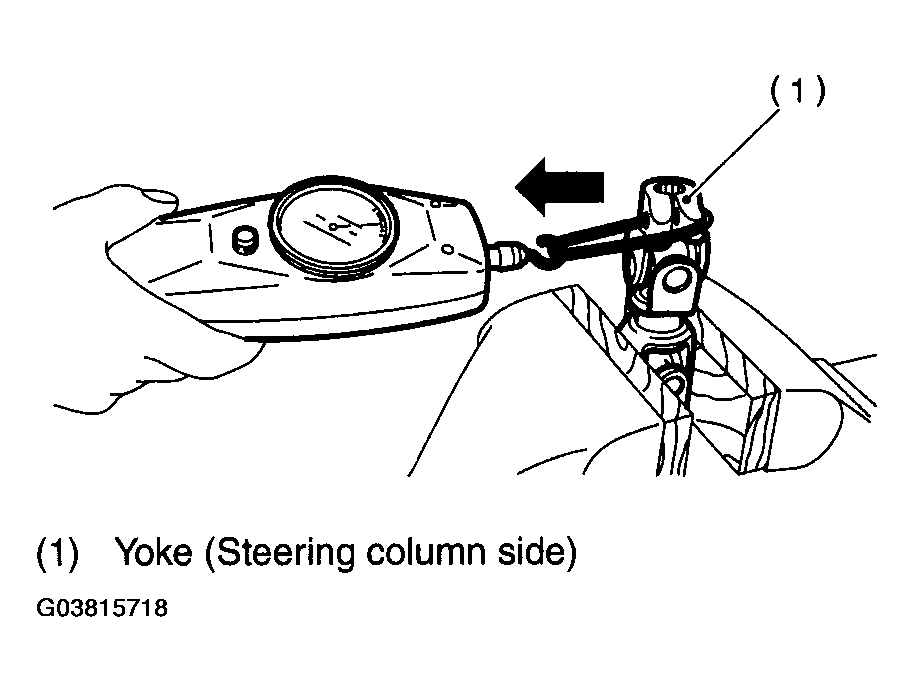

Fig 5: Checking Swing Torque Of Universal Joint (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
