Special Tool

SPECIAL TOOL CHART

ILLUSTRATION TOOL NUMBER DESCRIPTION REMARKS
Fig 1 925700000 WRENCH
  • Used for removing and installing tie-rod.
  • Apply this tool to rack.
Fig 2 925711000 PRESSURE GAUGE Used for measuring oil pump pressure.
Fig 3 926200000 STAND Used when inspecting characteristic of gearbox assembly and disassembling it.
Fig 4 34099AC010 ADAPTER HOSE A Used with PRESSURE GAUGE (925711000).
Fig 5 34099AC020 ADAPTER HOSE B Used with PRESSURE GAUGE (925711000).
Fig 6 926230000 SPANNER For the lock nut when adjusting backlash of gearbox.
Fig 7 34099PA100 SPANNER Used for measuring the rotating resistance of gear-box assembly.
Fig 8 34199AE040 OIL CHARGE GUIDE Used for charging power steering fluid.
Fig 9 926420000 PLUG When oil leaks from pinion side of gearbox assembly, remove pipe B from valve housing, attach this tool and check oil leaking points.
Fig 10 926370000 INSTALLER A
  • Used for installing valve assembly into valve housing assembly.
  • Used with STAND BASE (34099FA100).
Fig 11 34099FA100 STAND BASE Used for assembling power steering gearbox.
Fig 12 926390001 COVER & REMOVER ASSY Used for assembling rack assembly.
Fig 13 926400000 GUIDE
  • Right side of rack when installing rack bushing.
  • Used with GUIDE (927660000).
Fig 14 927660000 GUIDE
  • Right side of rack when installing rack bushing.
  • Used with GUIDE (926400000).
Fig 15 927620000 INSTALLER B
  • Used for installing oil seal of valve housing.
  • Used with INSTALLER A (926360000).
Fig 16 926360000 INSTALLER A
  • Used as a guide to install oil seal.
  • Used with INSTALLER B (927620000).
Fig 17 34199AE050 OIL SEAL REMOVER Used for removing oil seal.
Fig 18 34099FA110 INSTALLER Used for installing oil seal.
Fig 19 34099FA120 INSTALLER AND REMOVER SEAL
  • Used for installing valve housing oil seal.
  • Used with INSTALLER SEAL. (34099FA130)
  • Used for installing valve housing ball bearing.
  • Used for removing oil seal and ball bearing from valve housing.
Fig 20 34099FA130 INSTALLER SEAL
  • Used for installing valve housing oil seal.
  • Used with INSTALLER AND REMOVER SEAL (34099FA120).
Fig 21 927640000 INSTALLER B Used for ball bearing into housing.
Fig 22 34099FA060 PUNCH HOLDER
  • Used for caulking.
  • For Turbo model and STi model.
Fig 23 34099FA080 PUNCH
  • Used for removing caulking.
  • For Turbo model and STi model.
Fig 24 34199AE090 PLUG WRENCH
  • Used for removing plug.
  • For Turbo model and STi model.
Fig 25 34199AE100 PLUG OIL SEAL REMOVER
  • Used for removing plug oil seal.
  • For Turbo model and STi model.
Fig 26 34199AE110 PLUG OIL SEAL INSTALLER
  • Used for installing plug oil seal.
  • For Turbo model and STi model.
Fig 27 34199AE120 GEARBOX OIL SEAL REMOVER
  • Used for removing gearbox oil seal.
  • For Turbo model and STi model.
Fig 28 34199AE130 GEARBOX OIL SEAL INSTALLER
  • Used for installing gearbox oil seal.
  • For Turbo model and STi model.
Fig 29 34199FE040 INSTALLER A, B, C
  • Used for installing oil seal into rack assembly.
  • For Turbo model and STi model.
Fig 30 34199FE010 REMOVER
  • Used for removing back-up ring and oil seal.
  • For Turbo model and STi model.
Fig 31 34199FE050 GUIDE
  • Used for installing rack and seal into housing assembly.
  • For Turbo model and STi model.
Fig 32 34199FE000 INSTALLER & REMOVER
  • Used for removing and installing rack oil seal (outer & inner).
  • For Turbo model and STi model.
Fig 33 34199FE060 INSTALLER
  • Used for installing rack oil seal (outer).
  • For Turbo model and STi model.
Fig 34 34199FE020 BASE
  • Used for supporting housing assembly.
  • For Turbo model and STi model.

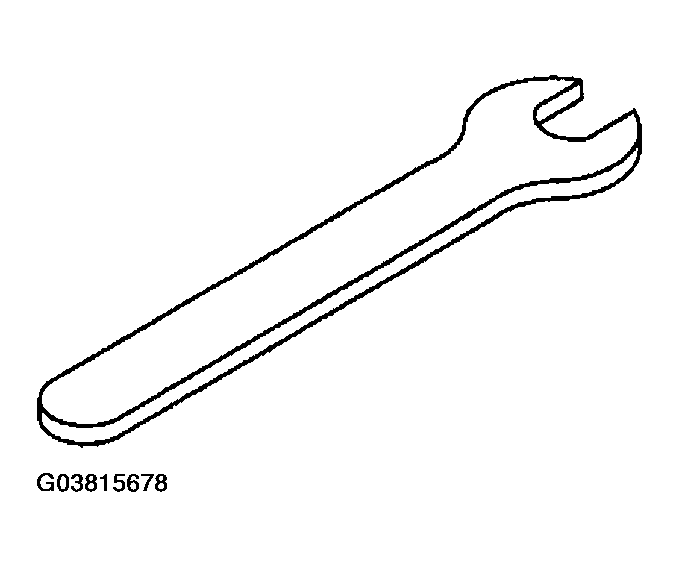

Fig 1: Identifying Special Tool ST-925700000
G03815678Courtesy of SUBARU OF AMERICA, INC.

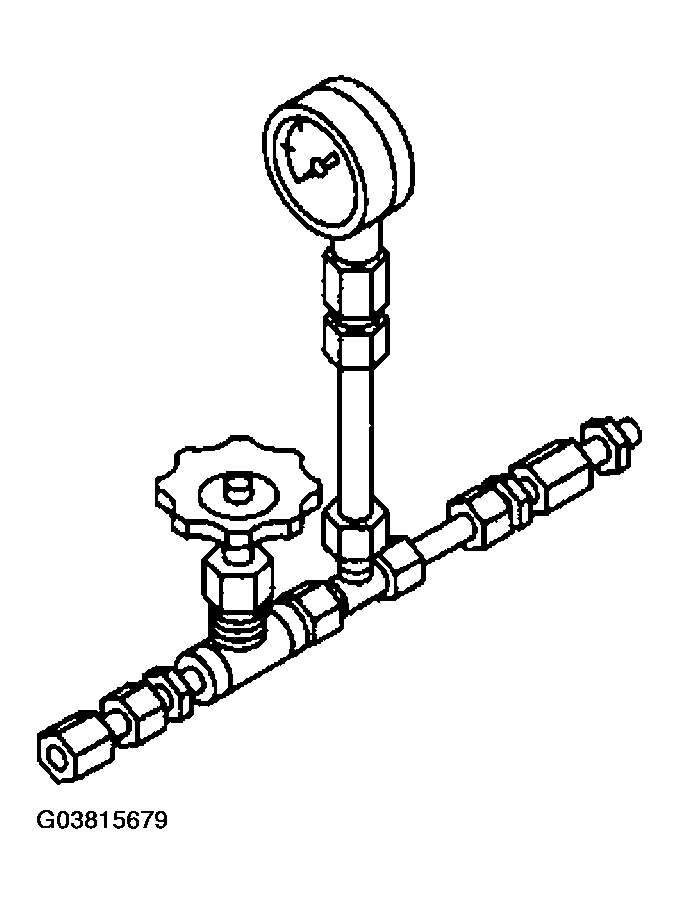

Fig 2: Identifying Special Tool ST-925711000
G03815679Courtesy of SUBARU OF AMERICA, INC.

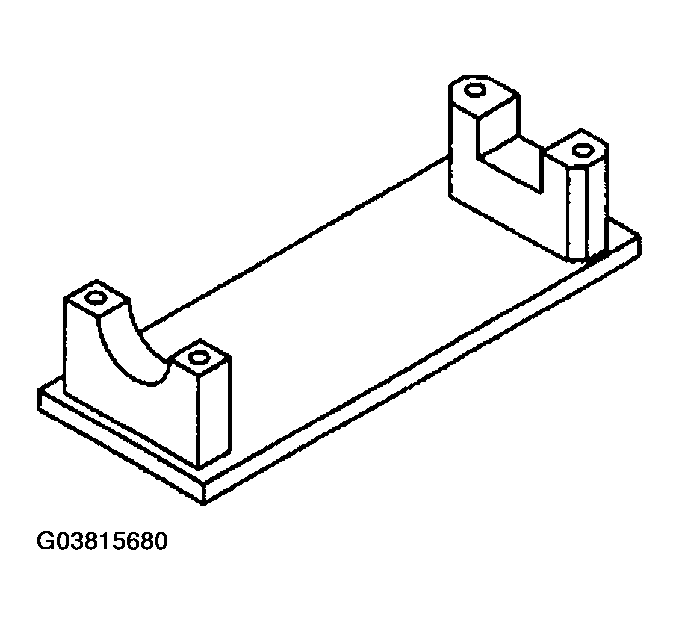

Fig 3: Identifying Special Tool ST-926200000
G03815680Courtesy of SUBARU OF AMERICA, INC.

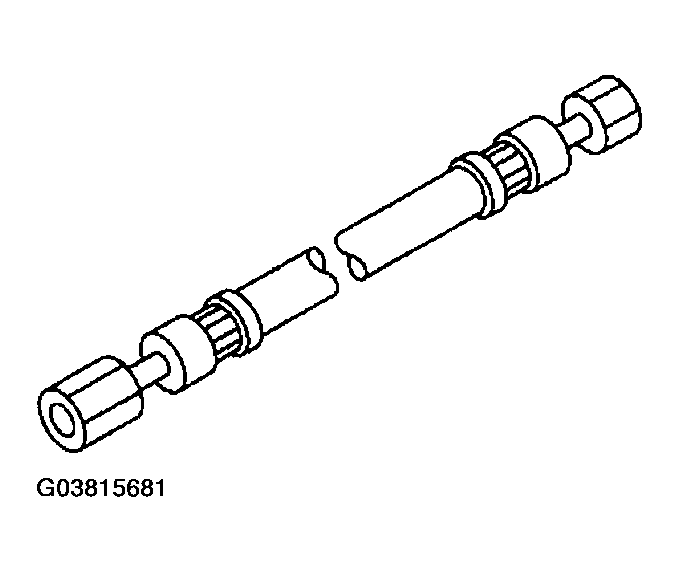

Fig 4: Identifying Special Tool ST34099AC010
G03815681Courtesy of SUBARU OF AMERICA, INC.

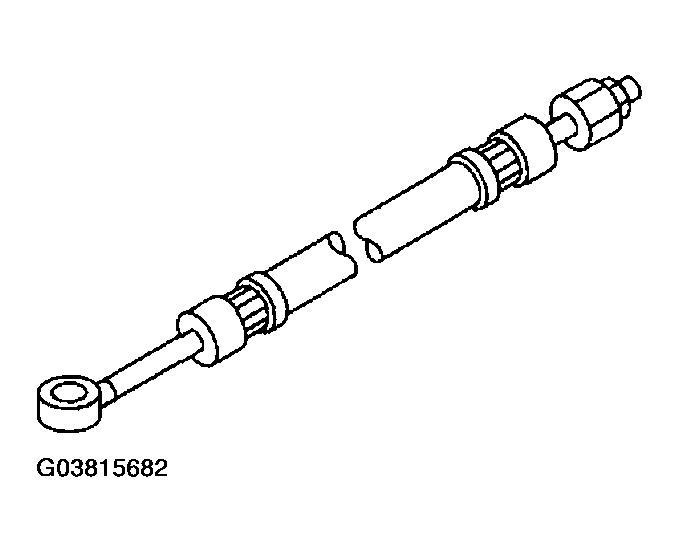

Fig 5: Identifying Special Tool ST34099AC020
G03815682Courtesy of SUBARU OF AMERICA, INC.

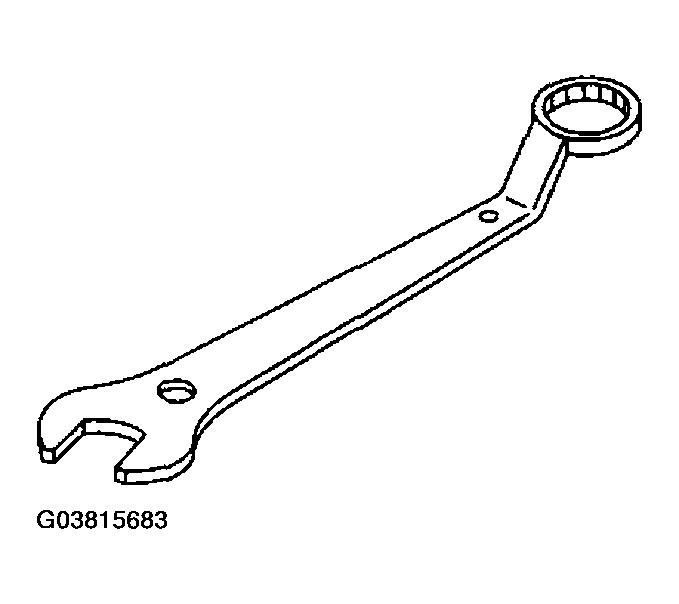

Fig 6: Identifying Special Tool ST-926230000
G03815683Courtesy of SUBARU OF AMERICA, INC.

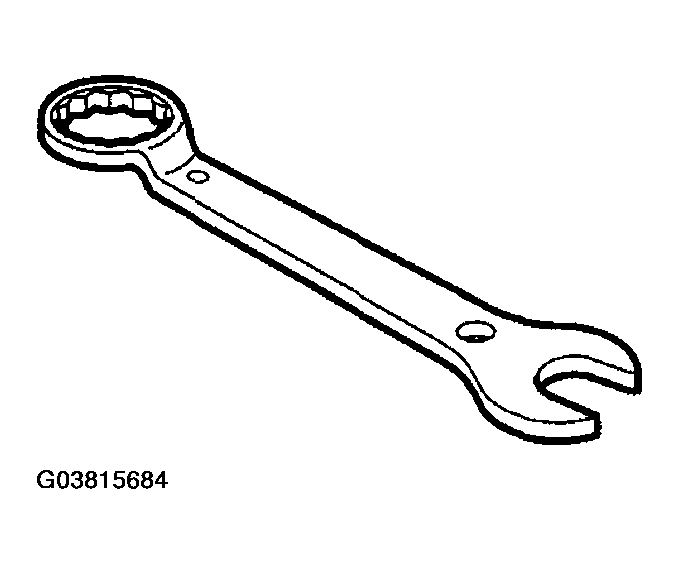

Fig 7: Identifying Special Tool ST34099PA100
G03815684Courtesy of SUBARU OF AMERICA, INC.

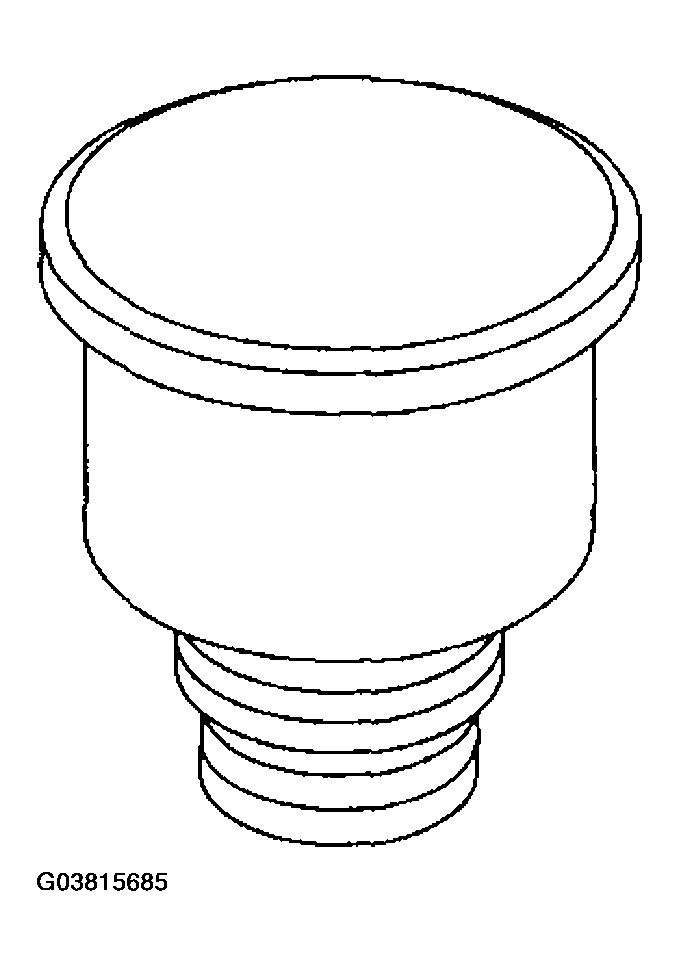

Fig 8: Identifying Special Tool ST34199AE040
G03815685Courtesy of SUBARU OF AMERICA, INC.

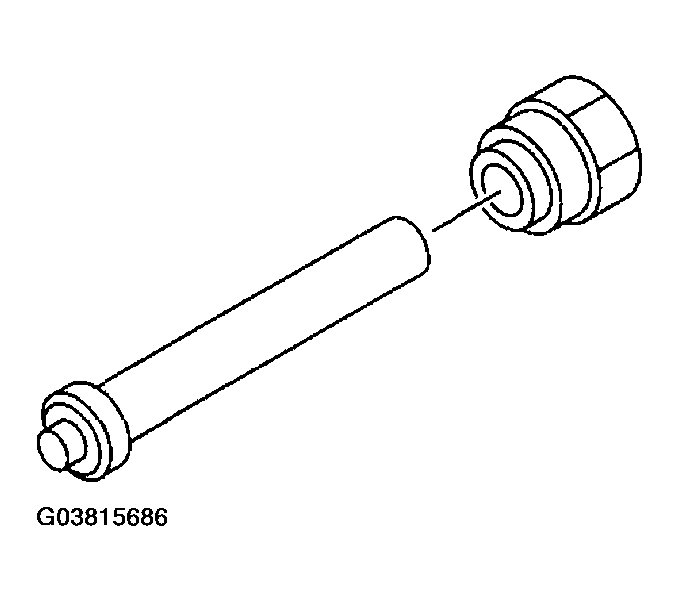

Fig 9: Identifying Special Tool ST-926420000
G03815686Courtesy of SUBARU OF AMERICA, INC.

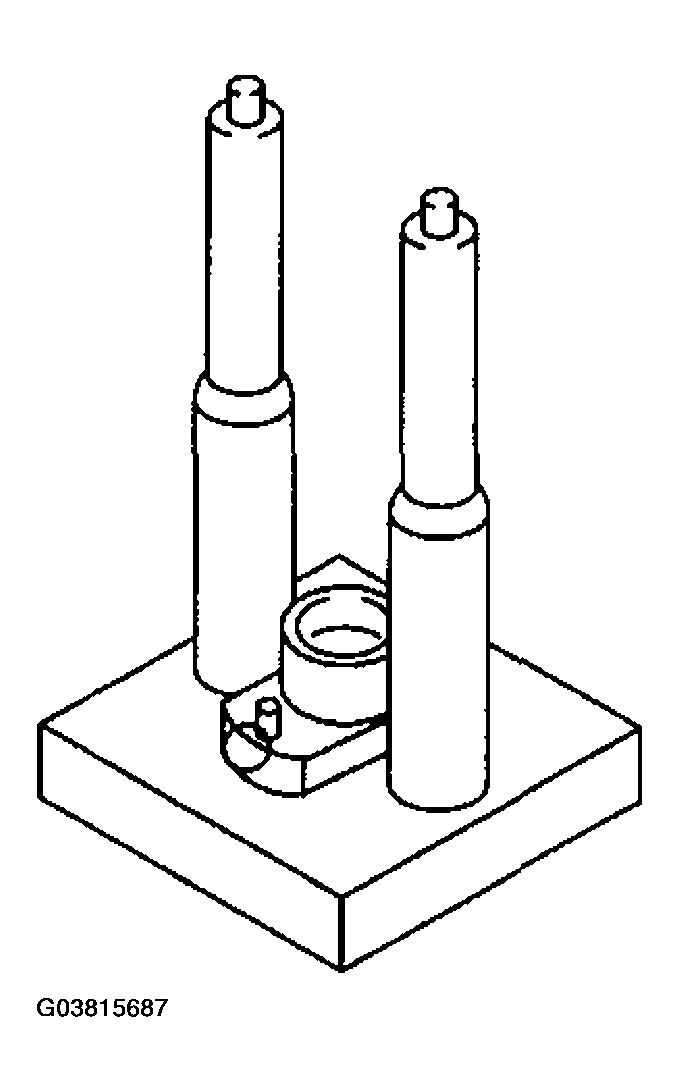

Fig 10: Identifying Special Tool ST-926370000
G03815687Courtesy of SUBARU OF AMERICA, INC.

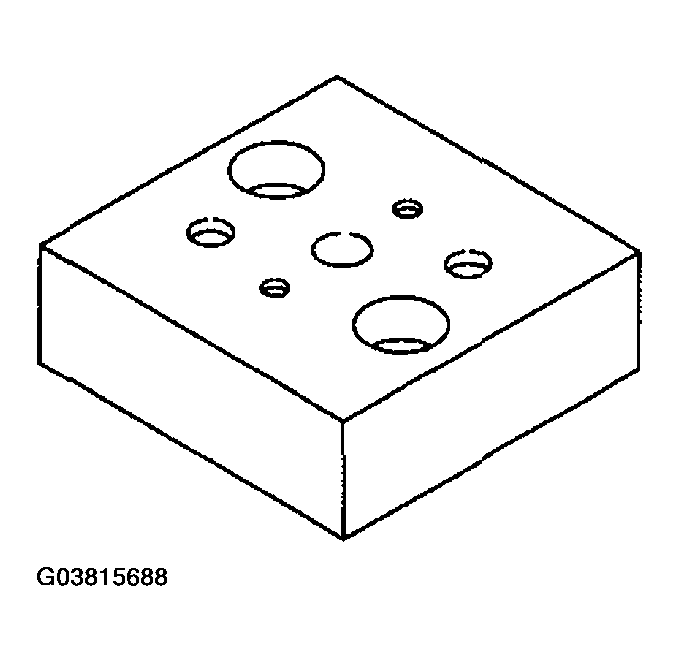

Fig 11: Identifying Special Tool ST34099FA100
G03815688Courtesy of SUBARU OF AMERICA, INC.

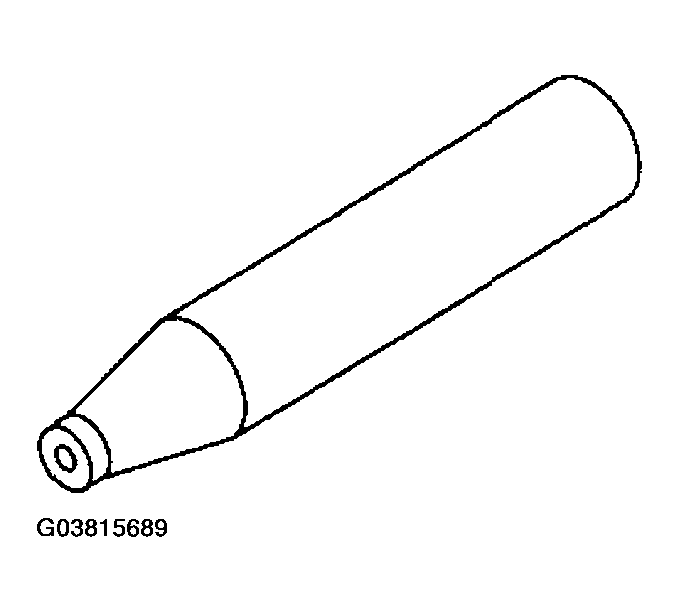

Fig 12: Identifying Special Tool ST-926390001
G03815689Courtesy of SUBARU OF AMERICA, INC.

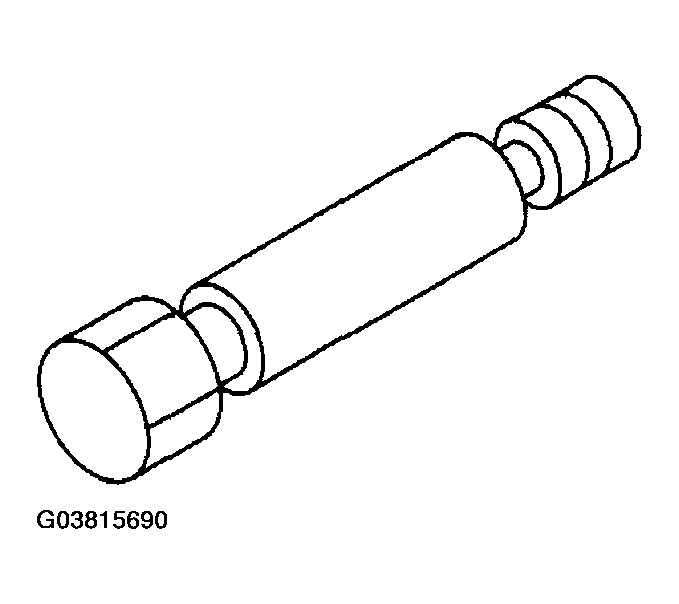

Fig 13: Identifying Special Tool ST-926400000
G03815690Courtesy of SUBARU OF AMERICA, INC.

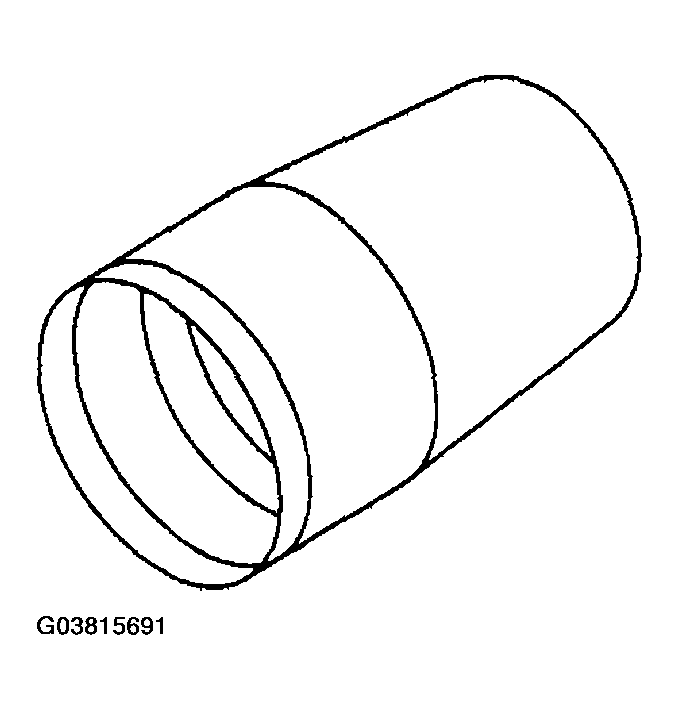

Fig 14: Identifying Special Tool ST-927660000
G03815691Courtesy of SUBARU OF AMERICA, INC.

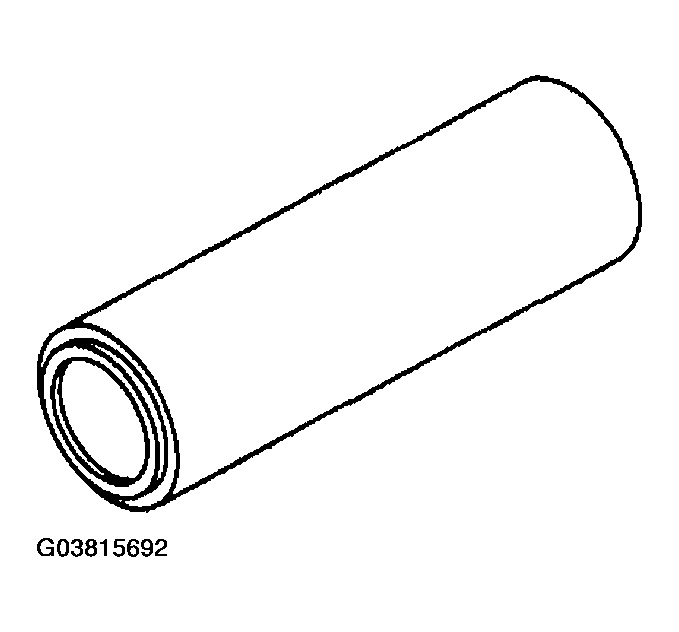

Fig 15: Identifying Special Tool ST-927620000
G03815692Courtesy of SUBARU OF AMERICA, INC.

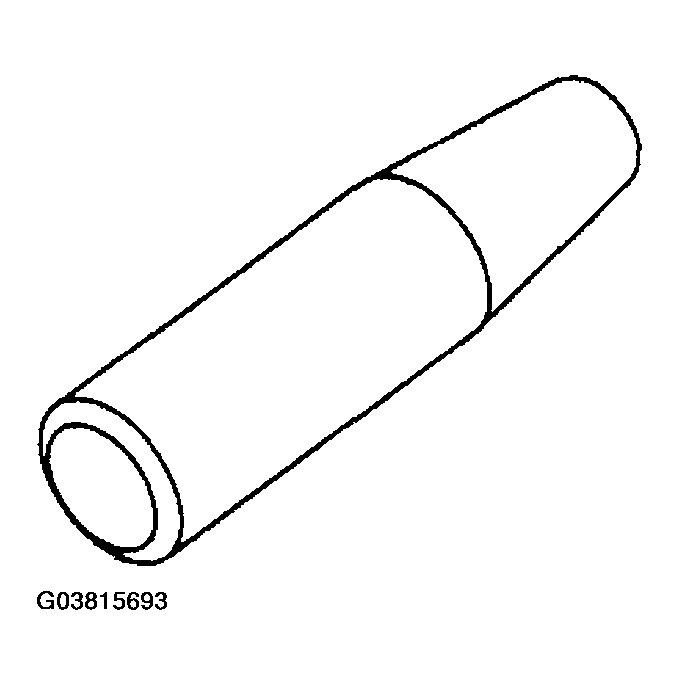

Fig 16: Identifying Special Tool ST-926360000
G03815693Courtesy of SUBARU OF AMERICA, INC.

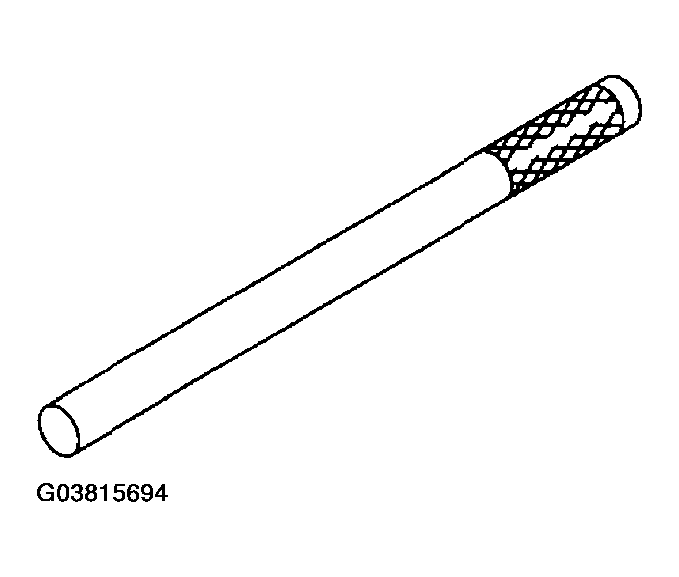

Fig 17: Identifying Special Tool ST34199AE050
G03815694Courtesy of SUBARU OF AMERICA, INC.

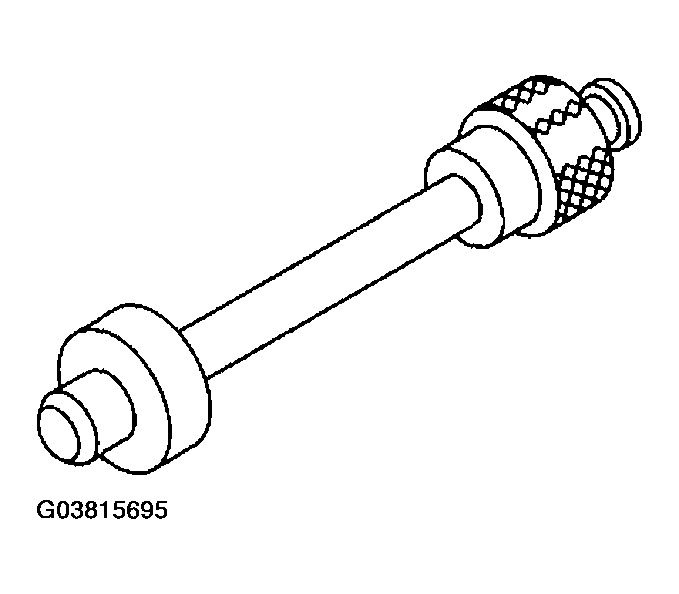

Fig 18: Identifying Special Tool ST34099FA110
G03815695Courtesy of SUBARU OF AMERICA, INC.

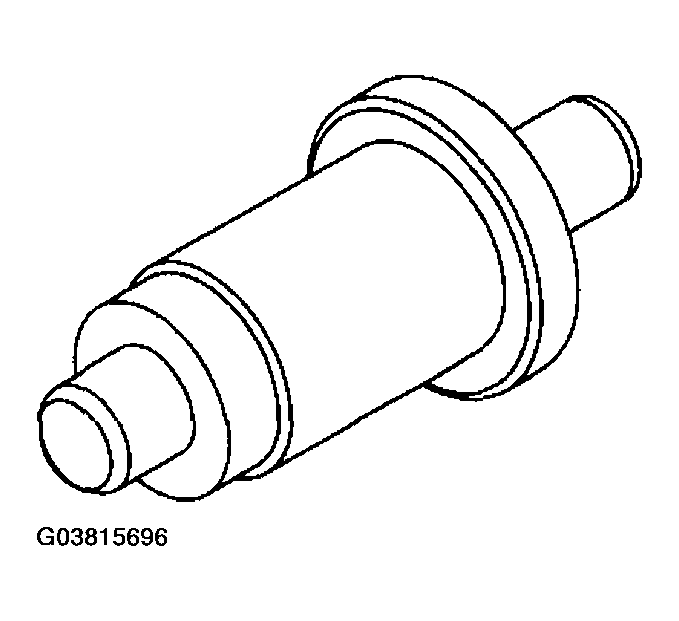

Fig 19: Identifying Special Tool ST34099FA120
G03815696Courtesy of SUBARU OF AMERICA, INC.

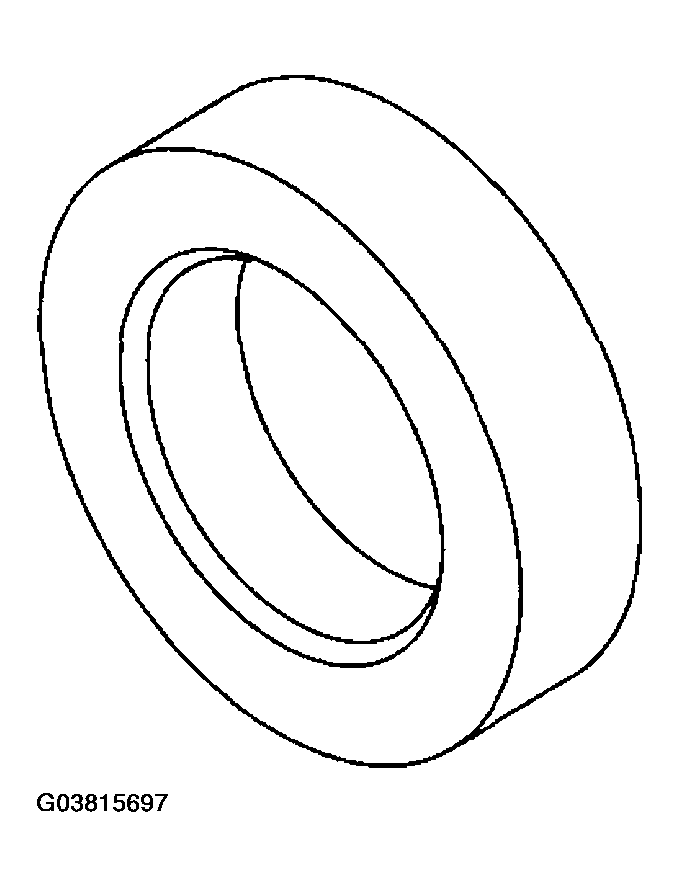

Fig 20: Identifying Special Tool ST34099FA130
G03815697Courtesy of SUBARU OF AMERICA, INC.

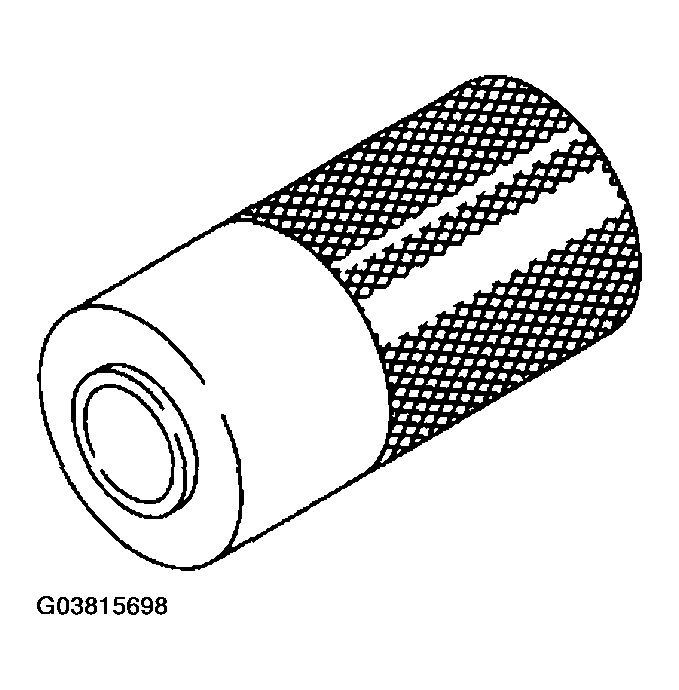

Fig 21: Identifying Special Tool ST-927640000
G03815698Courtesy of SUBARU OF AMERICA, INC.

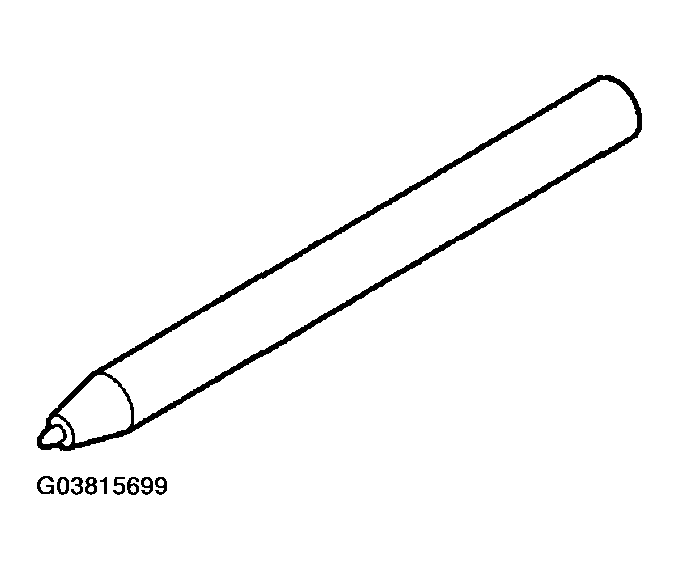

Fig 22: Identifying Special Tool ST34099FA060
G03815699Courtesy of SUBARU OF AMERICA, INC.

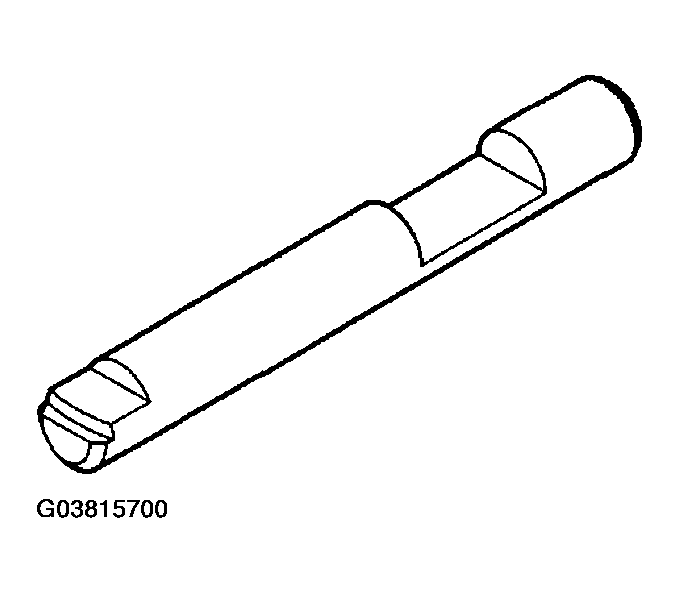

Fig 23: Identifying Special Tool ST34099FA080
G03815700Courtesy of SUBARU OF AMERICA, INC.

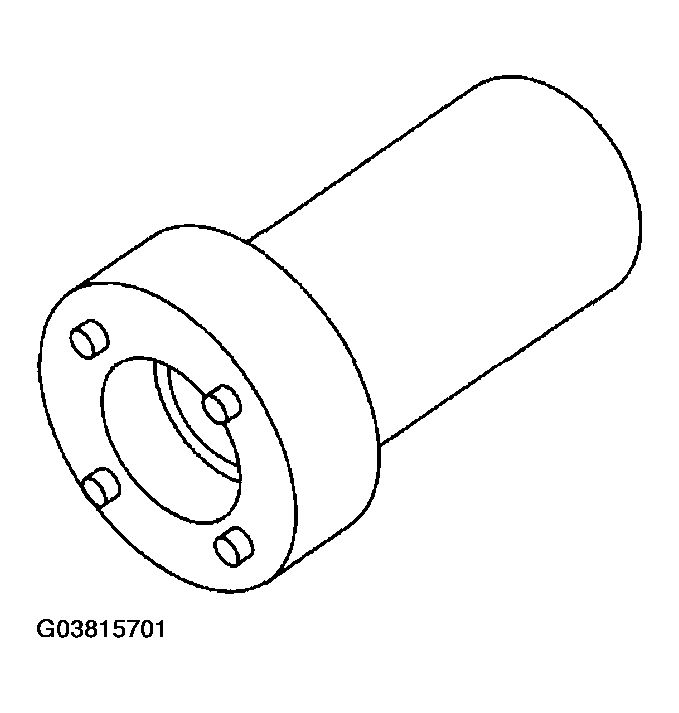

Fig 24: Identifying Special Tool ST34199AE090
G03815701Courtesy of SUBARU OF AMERICA, INC.

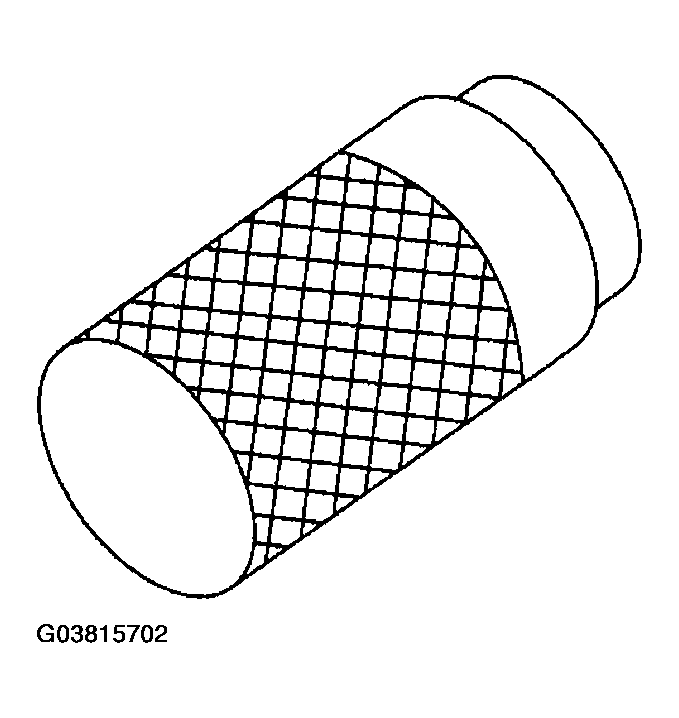

Fig 25: Identifying Special Tool ST34199AE100
G03815702Courtesy of SUBARU OF AMERICA, INC.

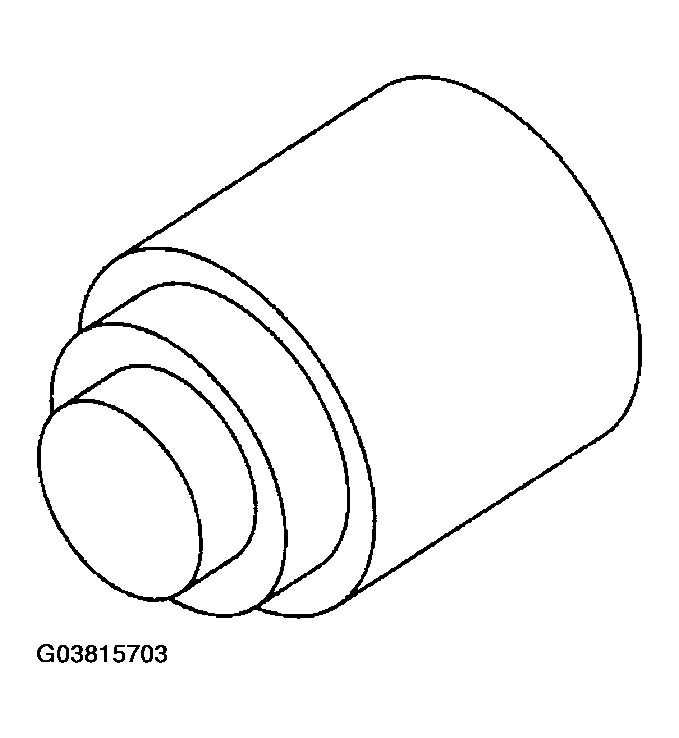

Fig 26: Identifying Special Tool ST34199AE110
G03815703Courtesy of SUBARU OF AMERICA, INC.

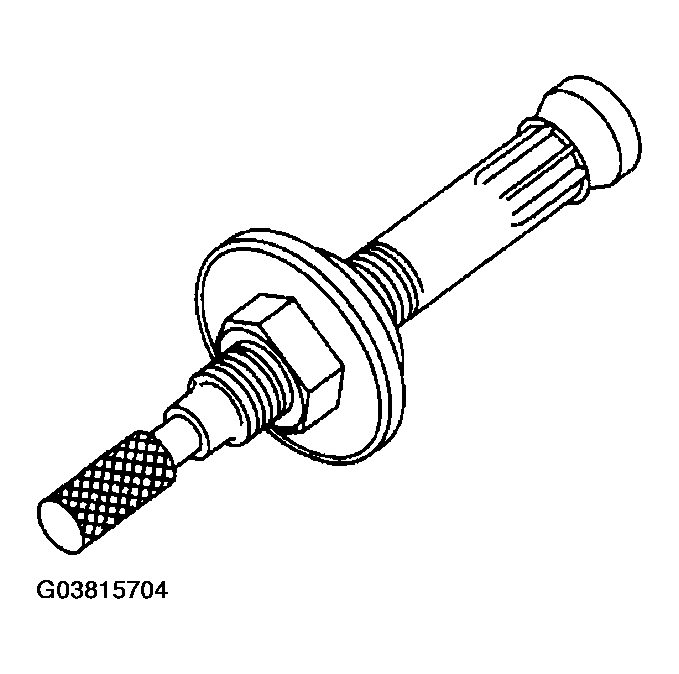

Fig 27: Identifying Special Tool ST34199AE120
G03815704Courtesy of SUBARU OF AMERICA, INC.

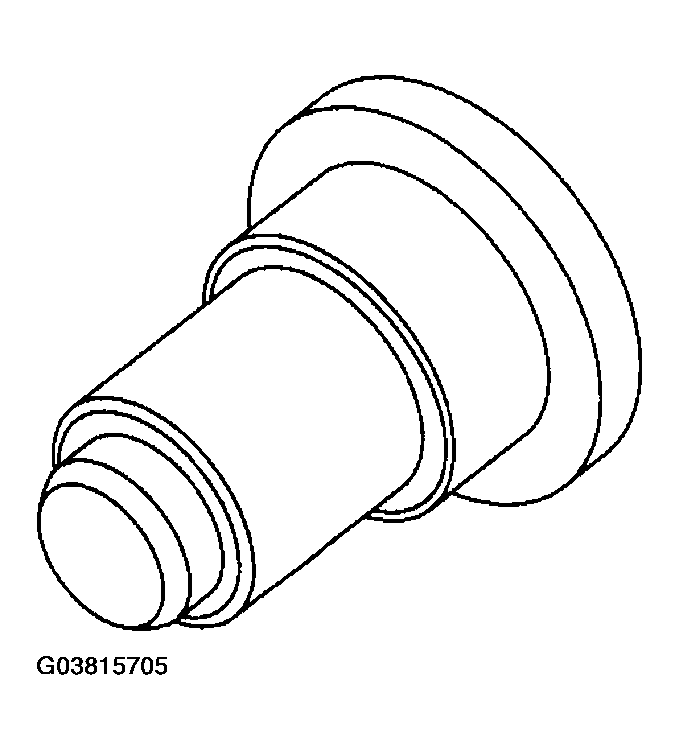

Fig 28: Identifying Special Tool ST34199AE130
G03815705Courtesy of SUBARU OF AMERICA, INC.

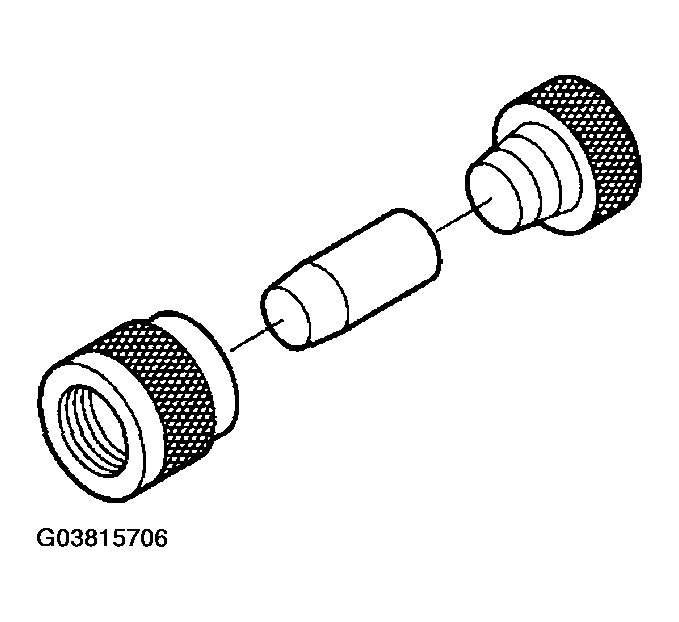

Fig 29: Identifying Special Tool ST34199FE040
G03815706Courtesy of SUBARU OF AMERICA, INC.

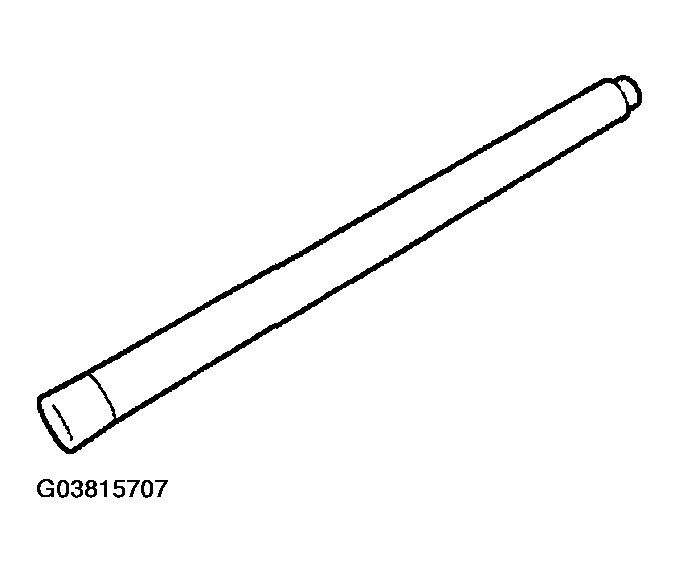

Fig 30: Identifying Special Tool ST34199FE010
G03815707Courtesy of SUBARU OF AMERICA, INC.

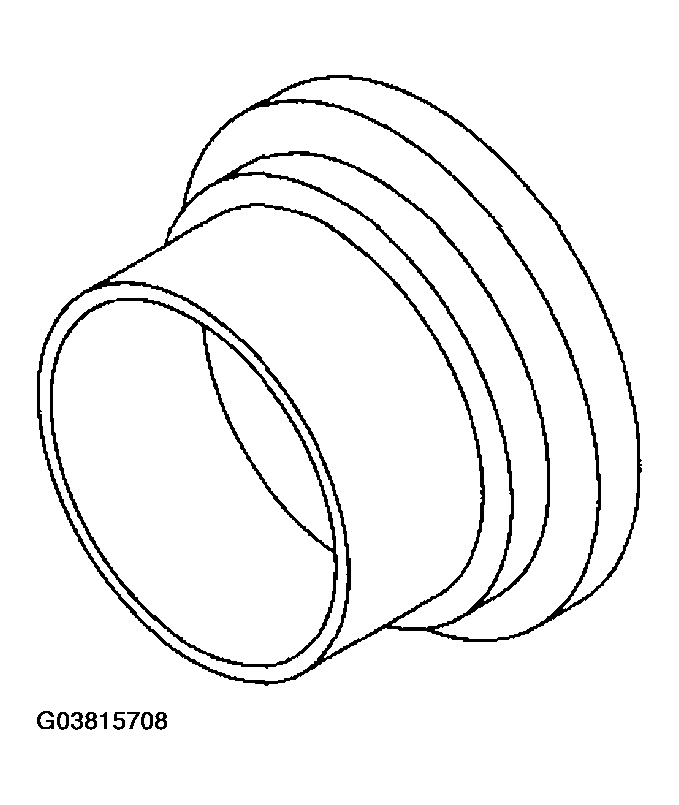

Fig 31: Identifying Special Tool ST34199FE050
G03815708Courtesy of SUBARU OF AMERICA, INC.

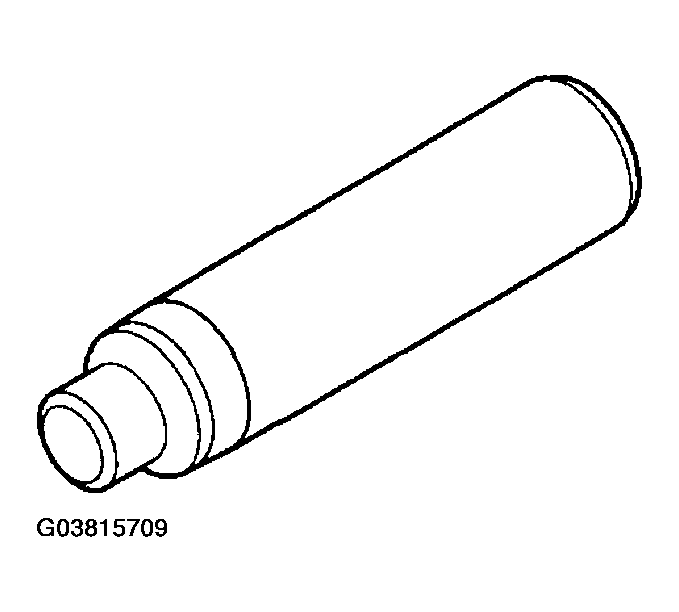

Fig 32: Identifying Special Tool ST34199FE000
G03815709Courtesy of SUBARU OF AMERICA, INC.

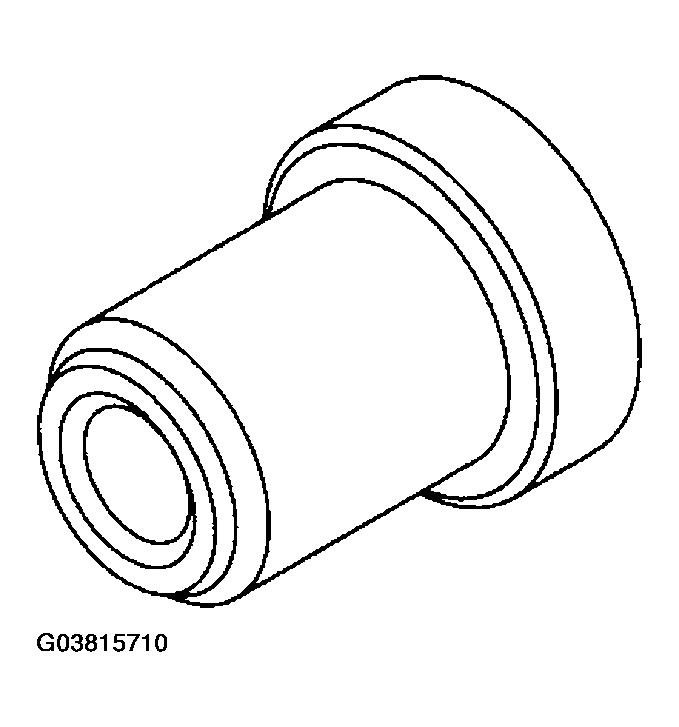

Fig 33: Identifying Special Tool ST34199FE060
G03815710Courtesy of SUBARU OF AMERICA, INC.

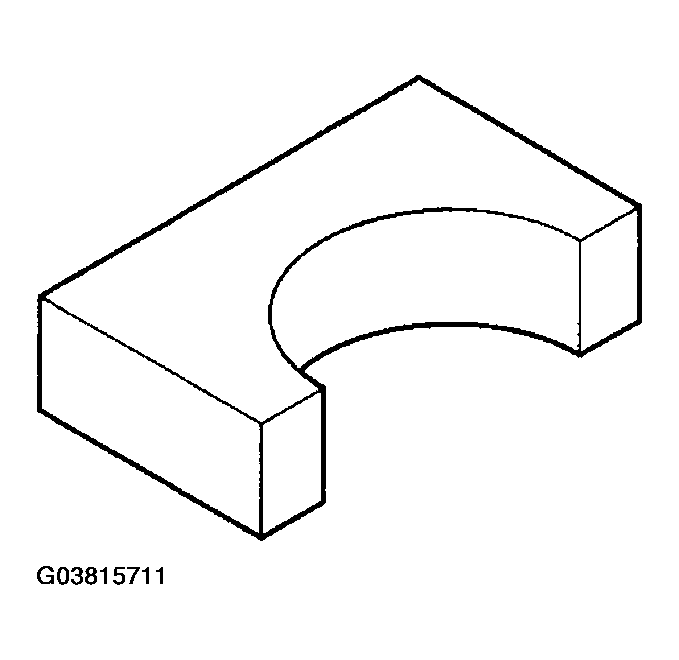

Fig 34: Identifying Special Tool ST34199FE020
G03815711Courtesy of SUBARU OF AMERICA, INC.
