Engine Controls (Diagnostics) (STI): Electrical Component Location: Location: Engine

Control module

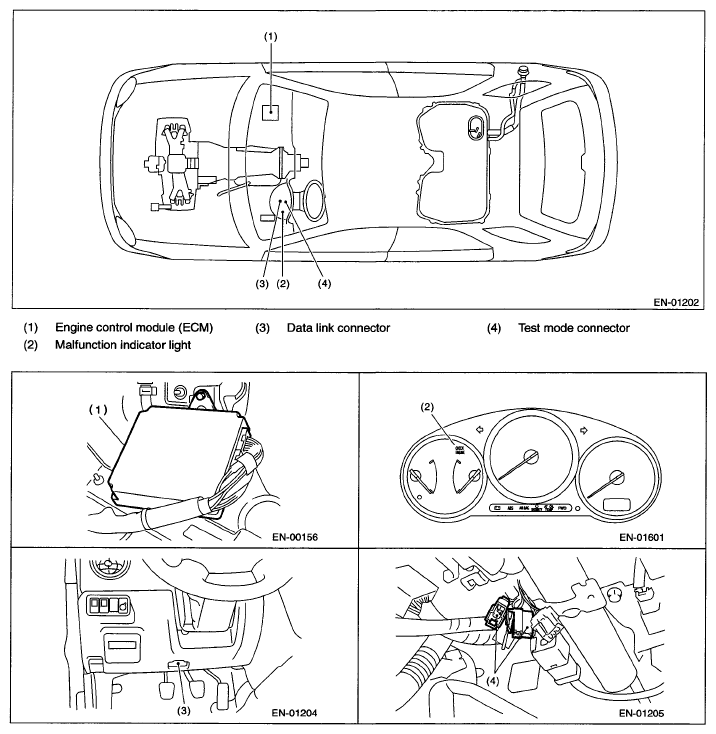

Fig 1: Identifying Engine Control Module Location

Courtesy of SUBARU OF AMERICA, INC.

Sensor

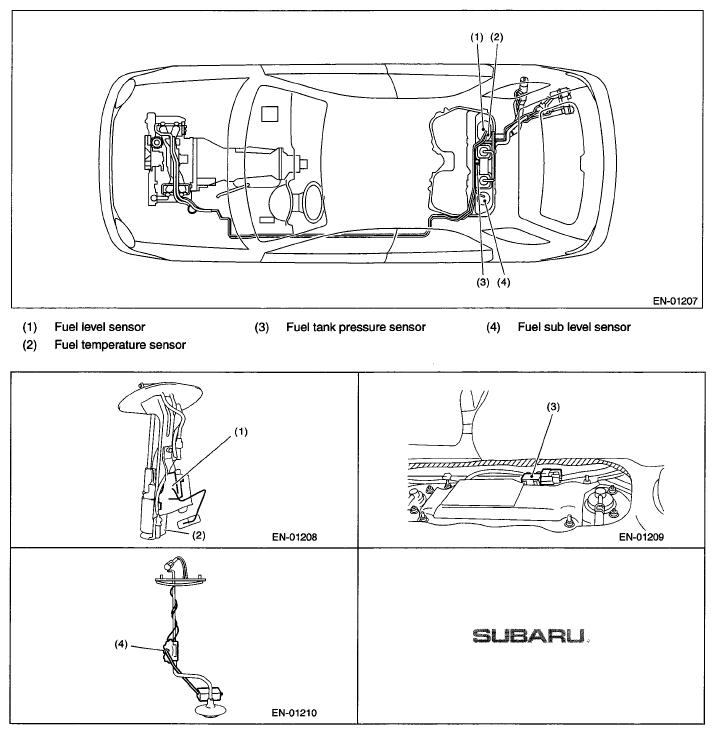

Fig 2: Identifying Sensor Locations (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

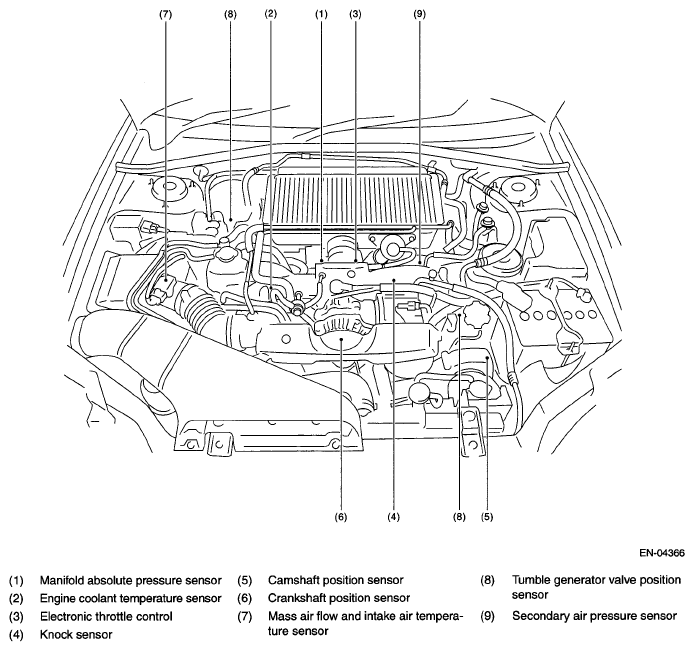

Fig 3: Identifying Sensor Locations (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

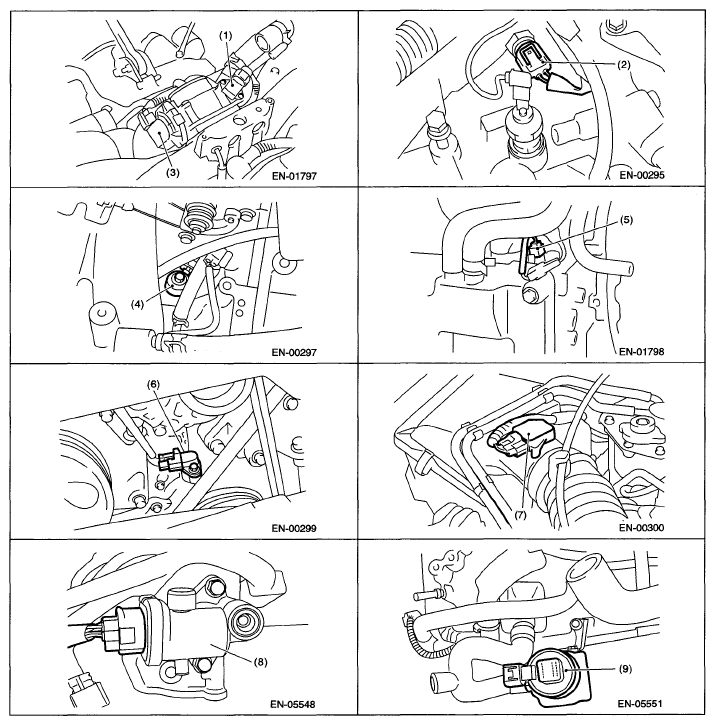

Fig 4: Identifying Sensor Locations (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Sensor Locations (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

Solenoid valve, actuator, emission control system parts and ignition system parts

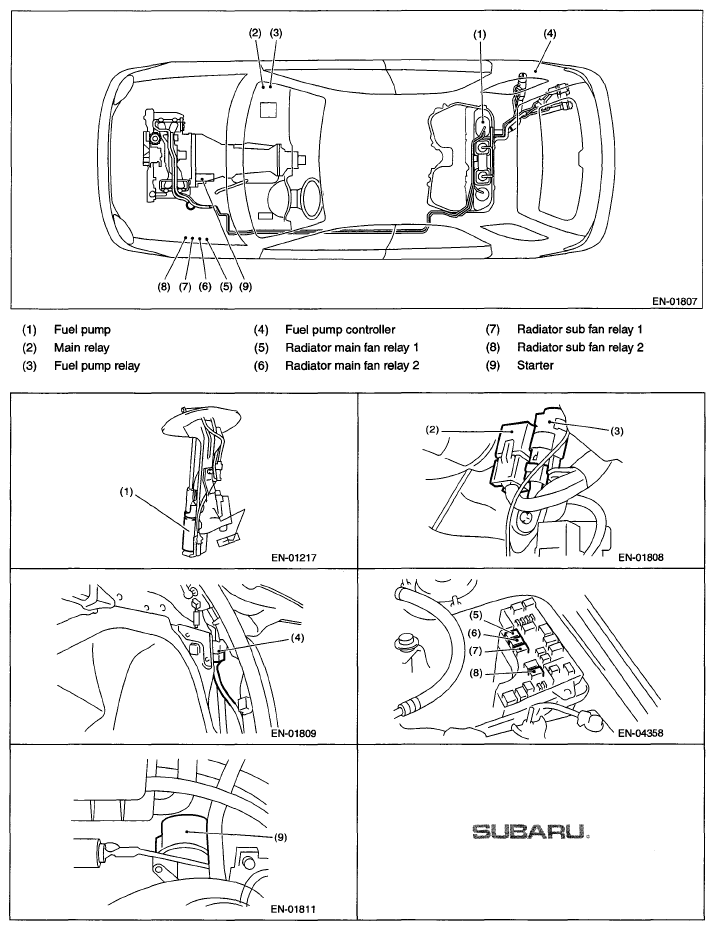

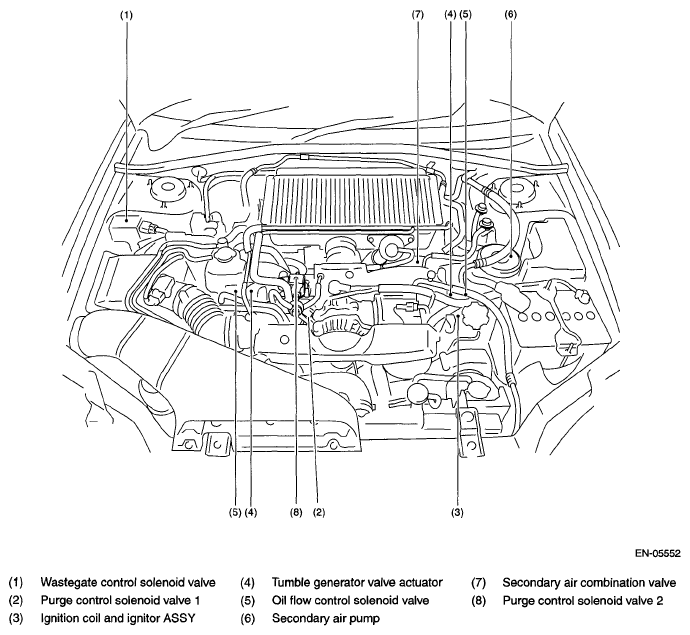

Fig 6: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Locations (1 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

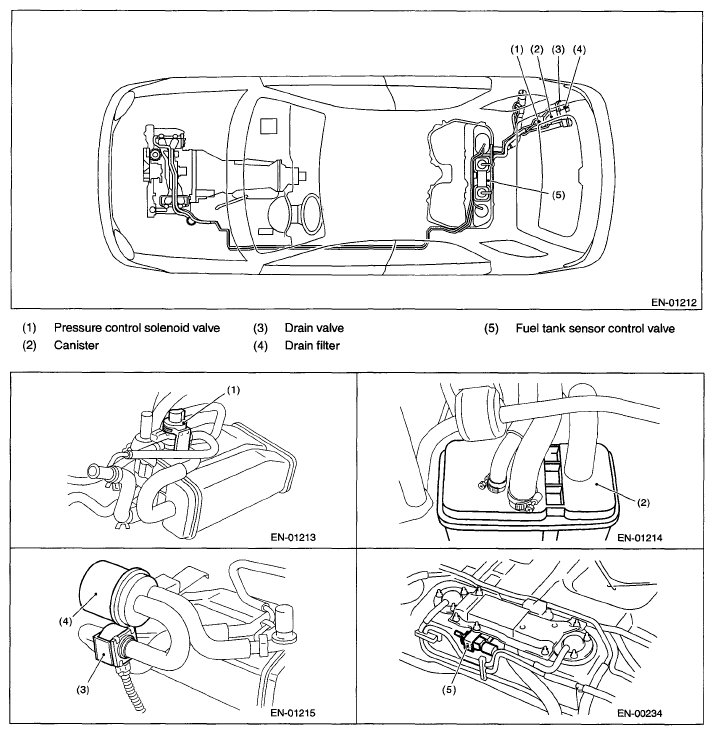

Fig 7: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Locations (2 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

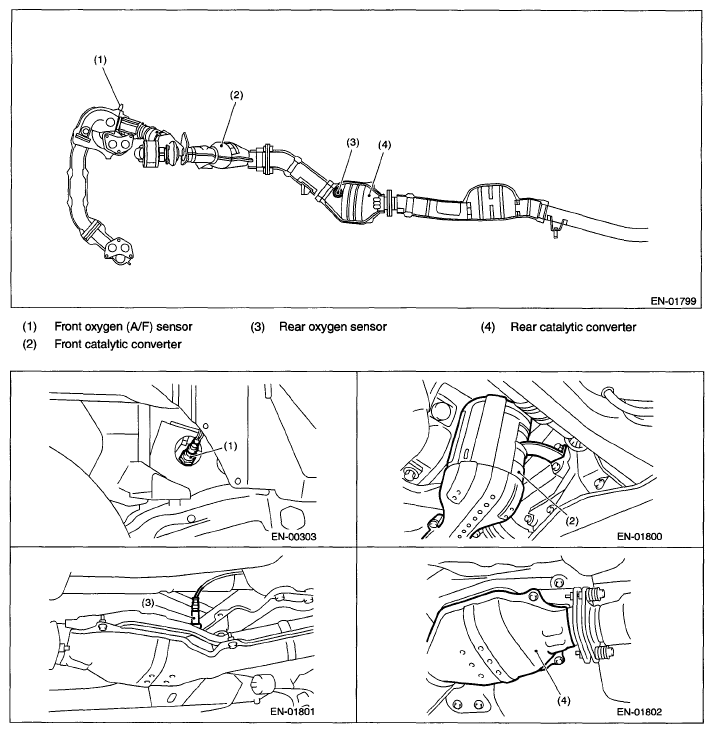

Fig 8: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Locations (3 Of 4)

Courtesy of SUBARU OF AMERICA, INC.

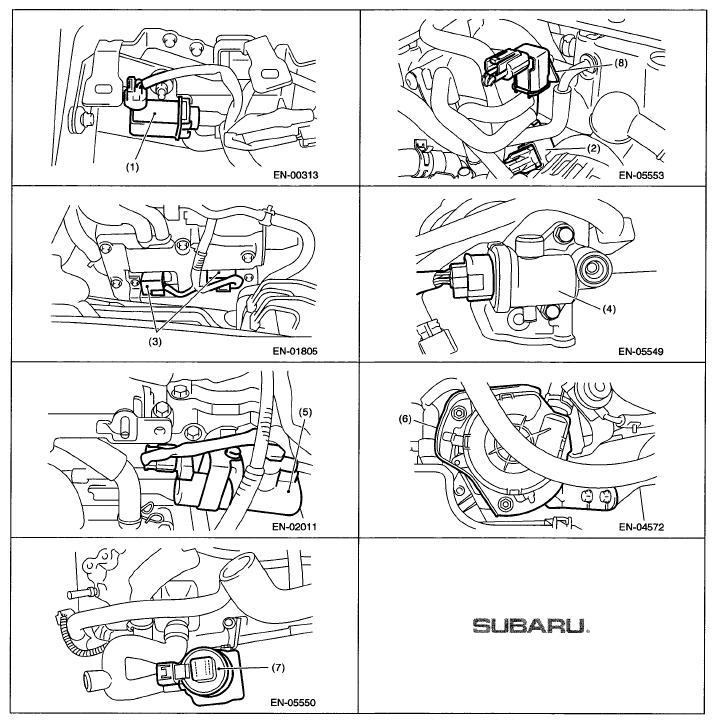

Fig 9: Identifying Solenoid Valve, Actuator, Emission Control System Parts And Ignition System Parts Locations (4 Of 4)

Courtesy of SUBARU OF AMERICA, INC.
