Home >> Subaru >> 2007 >> Impreza WRX STi Limited >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection System (H4DOTC) >> General Description >> Components With Torque Specifications >> Intake Manifold >> • STI model

• STI model

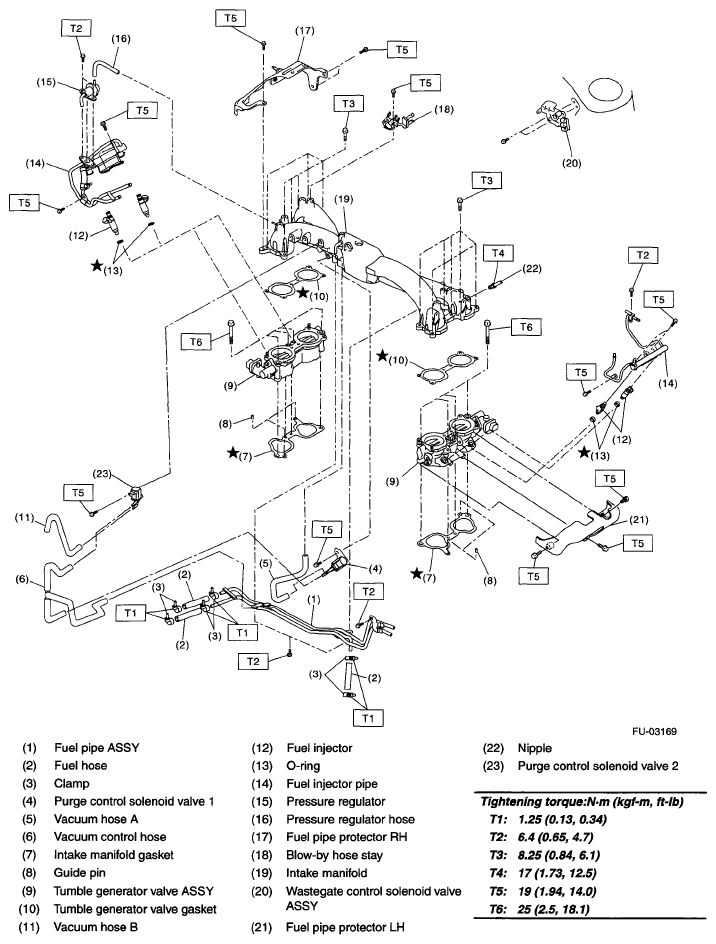

Fig 1: Intake Manifold Replacement Components (STI Model) With Torque Specifications

G05333442

Courtesy of SUBARU OF AMERICA, INC.
