Control Valve Assembly

  1. Disconnect the four pipes from gearbox.
    NOTE: Remove the pipes E and F as a single unit being fixed at clamp plate.
  2. Secure the gearbox removed from the vehicle in vise using ST.

    ST 926200000 STAND

    CAUTION: Secure the gearbox in a vise using ST as shown in Fig 1. Do not attempt to secure it without this ST.
    Fig 1: Securing Gearbox Using Special Tool
    G03815745Courtesy of SUBARU OF AMERICA, INC.
  3. Using the ST, loosen the lock nut.

    ST 926230000 SPANNER

    Fig 2: Loosening Lock Nut Using Special Tool
    G03815746Courtesy of SUBARU OF AMERICA, INC.
  4. Tighten the adjusting screw until it no longer tightens.
    Fig 3: Tightening Adjusting Screw
    G03815747Courtesy of SUBARU OF AMERICA, INC.
  5. Loosen the adjusting screw, and then remove the spring and sleeve.
  6. Remove the two bolts securing valve assembly.
    Fig 4: Identifying Two Bolts Securing Valve Assembly
    G03815748Courtesy of SUBARU OF AMERICA, INC.
  7. Carefully draw out the input shaft, and then remove the valve assembly.
    Fig 5: Removing Valve Assembly
    G03815749Courtesy of SUBARU OF AMERICA, INC.
  8. Slide the dust cover out.
    Fig 6: Sliding Dust Cover Out
    G03815750Courtesy of SUBARU OF AMERICA, INC.
  9. Using a press remove the pinion and valve assembly from valve housing.
    Fig 7: Identifying Pinion And Valve Assembly From Valve Housing
    G03815751Courtesy of SUBARU OF AMERICA, INC.
  10. Using the ST and press, remove the dust seal, oil seal and special bearing from valve housing.

    ST 34099FA120 INSTALLER & REMOVER SEAL

    CAUTION:
    • Do not apply force to the end surface of valve housing.
    • Do not reuse the oil seal after removal.
    Fig 8: Identifying Dust Seal, Oil Seal And Special Bearing Using Special Tool
    G03815752Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the snap ring using snap ring pliers.
    CAUTION: Be careful not to scratch the pinion and valve assembly.
    Fig 9: Removing Snap Ring Using Snap Ring Pliers
    G03815753Courtesy of SUBARU OF AMERICA, INC.

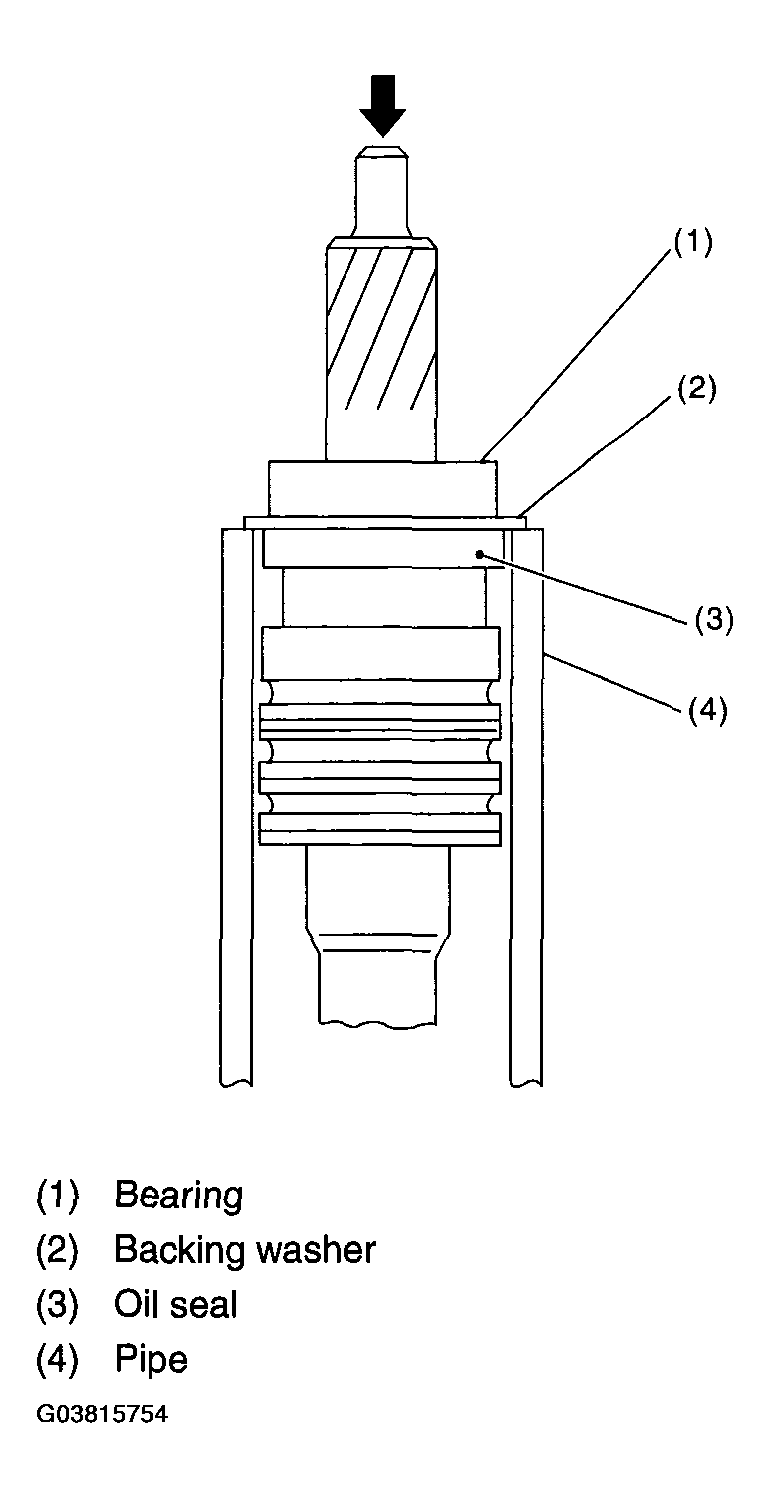

  12. Press out the bearing together with the back up washer using pipe of I.D. 38.5 to 39.5 mm (1.516 to 1.555 in) and press.
    Fig 10: Identifying Out Bearing
    G03815754Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the oil seal.
