Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

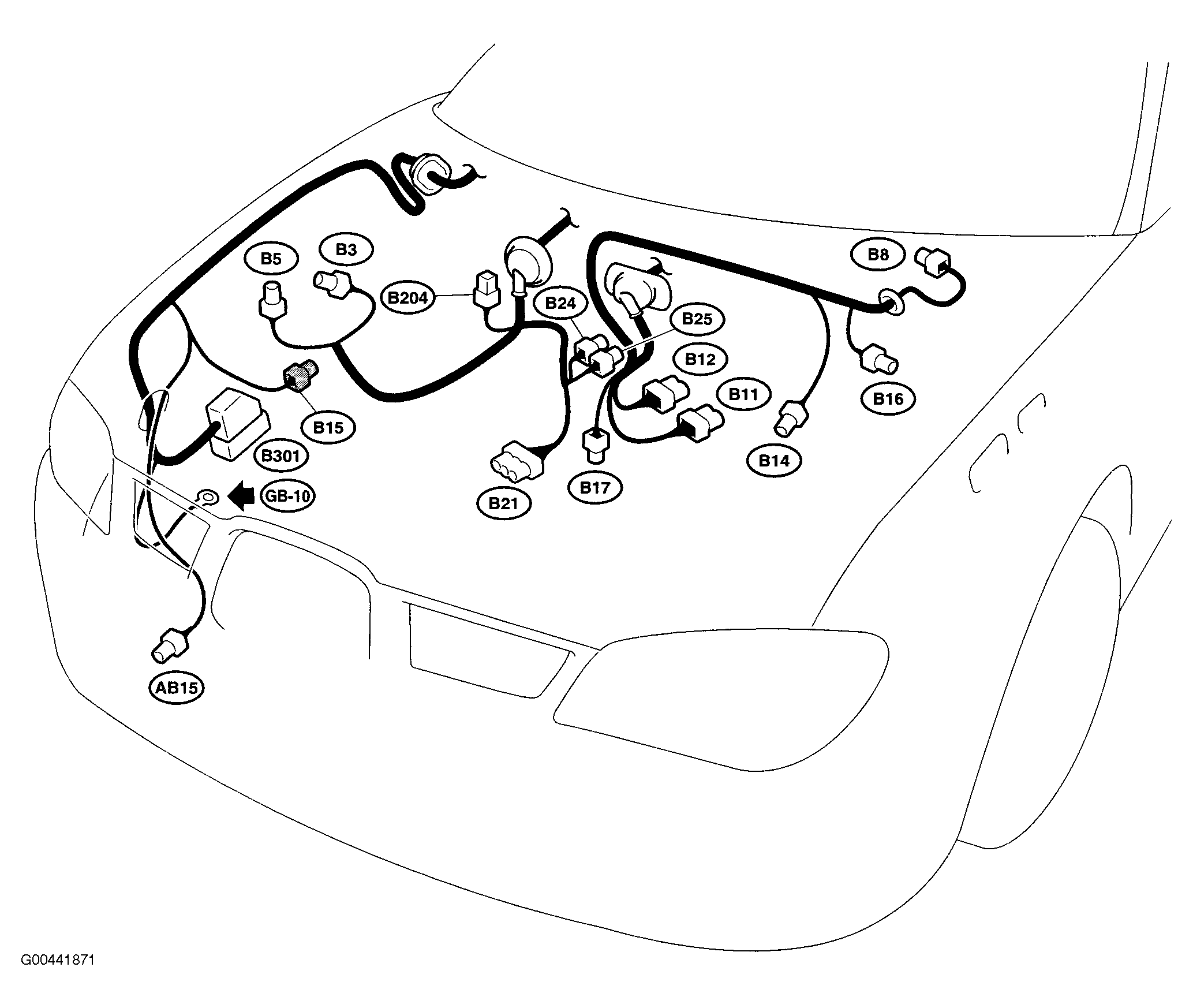

| ABS Control Module (Non-Turbo) (B301) | On right side of engine compartment. See Figure. |

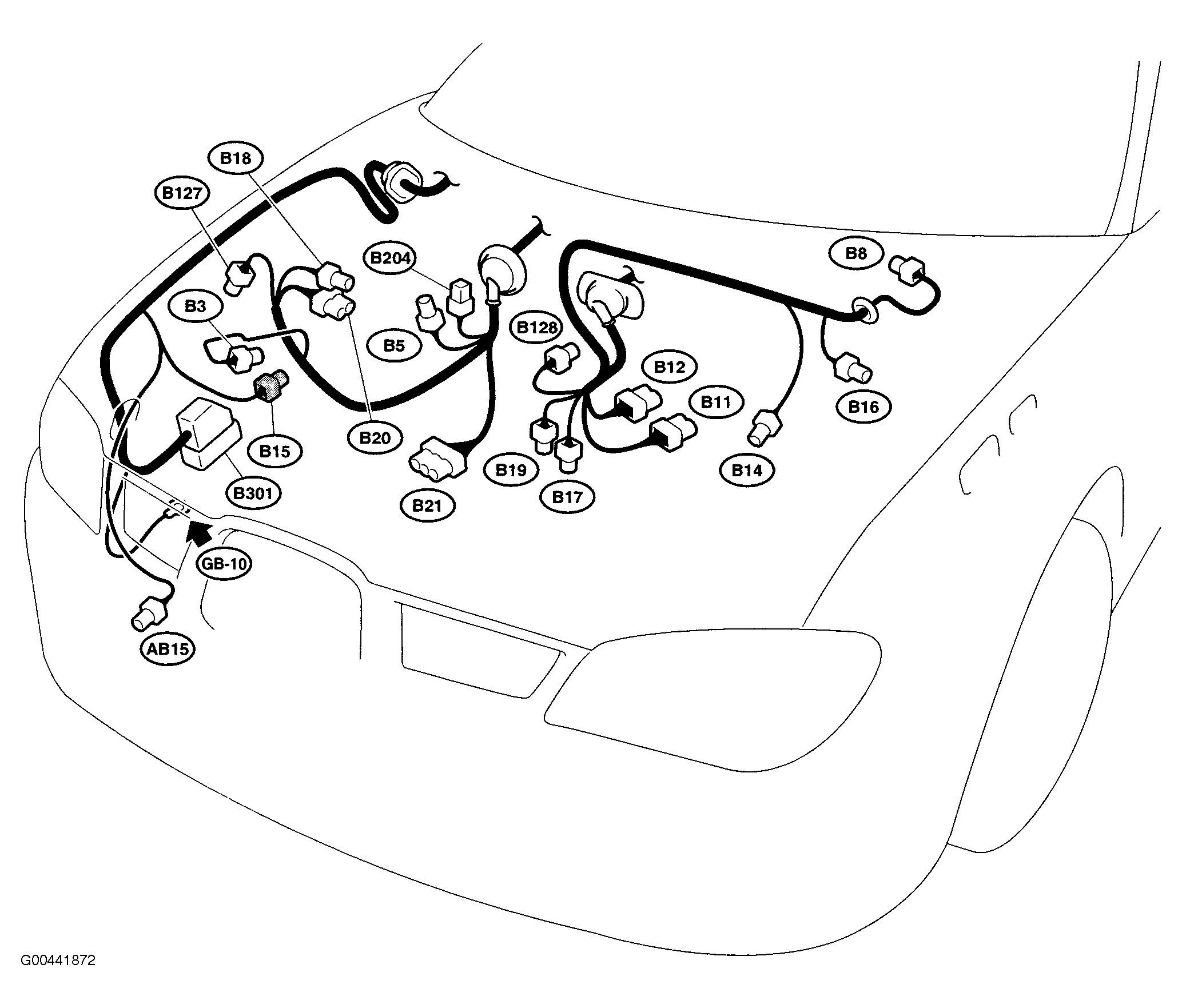

| ABS Control Module (Turbo) (B301) | On right side of engine compartment. See Figure. |
| Air Bag Control Module (AB3) | Under front of center console. See Figure. |
| Auto A/C Control Module (B282) | Below center of dash. See Figure. |
| Driver's Control Center Differential Control Module (B380 & B381) | Behind center of dash. See Figure. |
| Engine Control Module (B134) | In passenger side front footwell below carpet and protective panel. See Figure. |

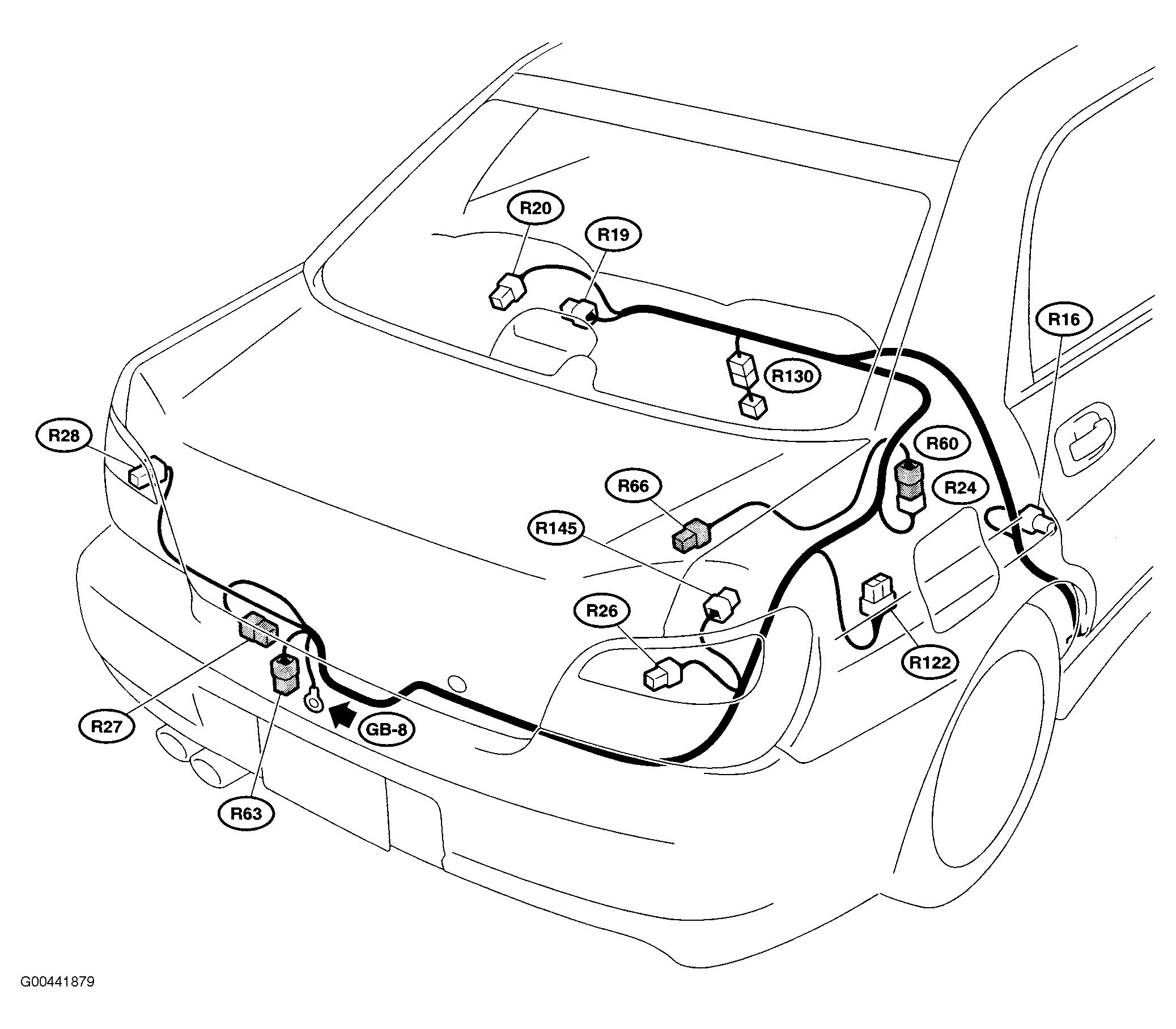

| Fuel Pump Control Module (Sedan) (R122) | At right side of trunk. See Figure. |

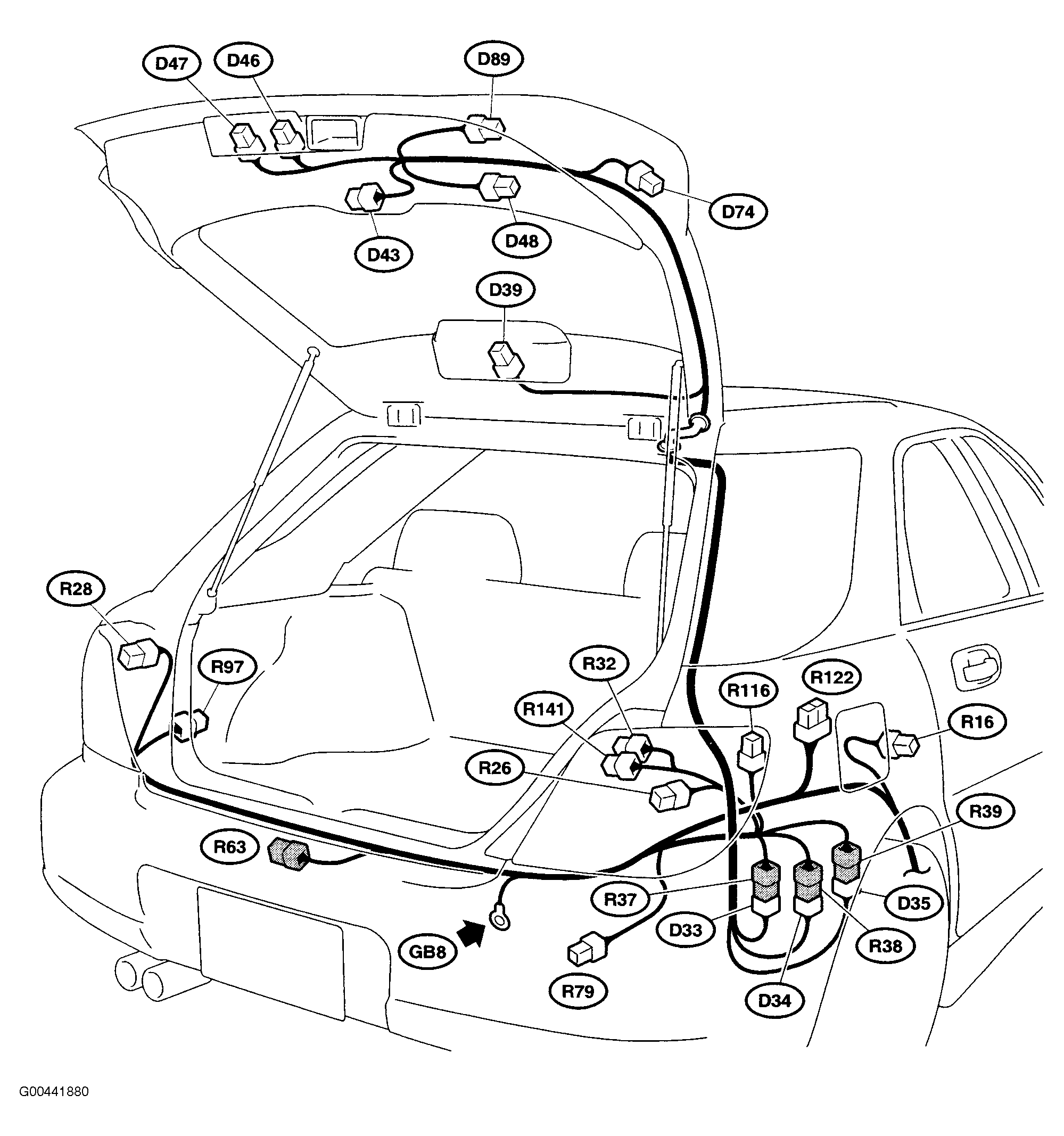

| Fuel Pump Control Module (Wagon) (R122) | Behind right rear quarterpanel. See Figure. |
| Immobilizer Control Module (B141) | Behind right side of dash. See Figure. |
| Integrated Module (B280) | Behind left side of dash. See Figure. |
| Keyless Entry Control Module (B176) | Behind left end of dash. See Figure. |

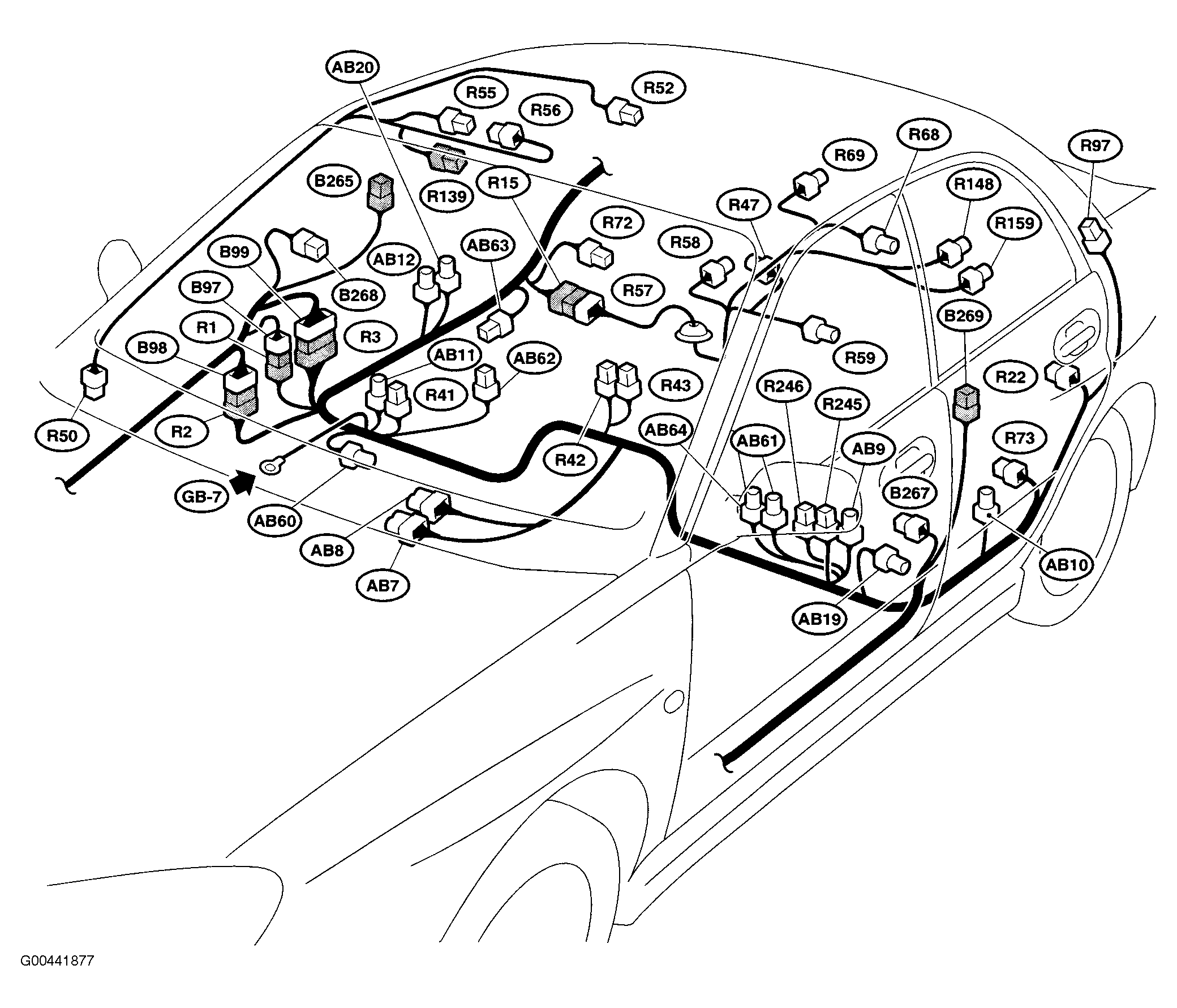

| Occupant Detection Module (AB62) | Under front passenger's seat. See Figure. |
| Rear Wiper Intermittent Module (R116) | Behind right rear quarterpanel. See Figure. |
| Seat Air Bag Module (Left) (AB9) | Under left front seat. See Figure. |
| Seat Air Bag Module (Right) (AB11) | Under right front seat. See Figure. |
| Transmission Control Module (B54, B55 & B56) | Behind left side of dash. See Figure. |
| Turn Signal & Hazard Module (B32) | Behind dash, right of steering column. See Figure. |
