Non-Turbo Model

  1. Remove the radiator fan and air conditioner fan. <Ref. to REMOVAL , Radiator Main Fan and Fan Motor.>, <Ref. to REMOVAL , Radiator Sub Fan and Fan Motor.>
  2. Protect the radiator with cardboard and blanket.
  3. Remove the V-belt covers.
    Fig 1: Identifying V-Belt Cover Bolts
    G04997242Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the V-belts. <Ref. to REMOVAL , V-belt.>
  5. Remove the A/C compressor V-belt tensioner.
  6. Use the ST to lock the crankshaft, and remove the pulley bolt.

    ST 499977100 CRANK PULLEY WRENCH

    Fig 2: Removing Pulley Bolt Using ST
    G04997243Courtesy of SUBARU OF AMERICA, INC.
  7. Remove the crank pulley.
  8. Remove the belt cover LH.
  9. Remove the front timing belt cover.
  10. Remove the timing belt guide. (MT model)
    Fig 3: Identifying Timing Belt Guide Bolt (1 Of 4)
    G04997244Courtesy of SUBARU OF AMERICA, INC.

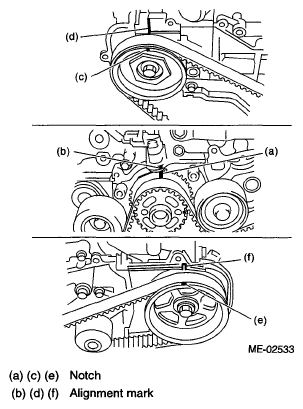

  11. Turn the crankshaft and align the alignment marks on crankshaft, and left and right cam sprockets with notches of belt cover and cylinder block.

    ST 499987500 CRANKSHAFT SOCKET

    Fig 4: Identifying Alignment Mark And Note
    G05332613Courtesy of SUBARU OF AMERICA, INC.
  12. Remove the belt idler.
    Fig 5: Removing Belt Idler
    G04997255Courtesy of SUBARU OF AMERICA, INC.
  13. Remove the belt idler (No. 2).
    Fig 6: Removing Belt Idler
    G04997246Courtesy of SUBARU OF AMERICA, INC.
  14. Remove the timing belt.
  15. Remove the automatic belt tension adjuster assembly.
    Fig 7: Removing Automatic Belt Tension Adjuster Assembly
    G04997247Courtesy of SUBARU OF AMERICA, INC.
  16. Install in the reverse order of removal. <Ref. to INSTALLATION , Timing Belt.>
