Lift And Jack

When using a lift or shop jack to raise a vehicle or using rigid rack to support a vehicle, always follow instructions concerning jack-up points and weight limits to prevent the vehicle from falling, which could result in injury. Be especially careful that the vehicle is balanced before raising it. Be sure to set the wheel stoppers when jacking-up only the front or rear side of the vehicle.

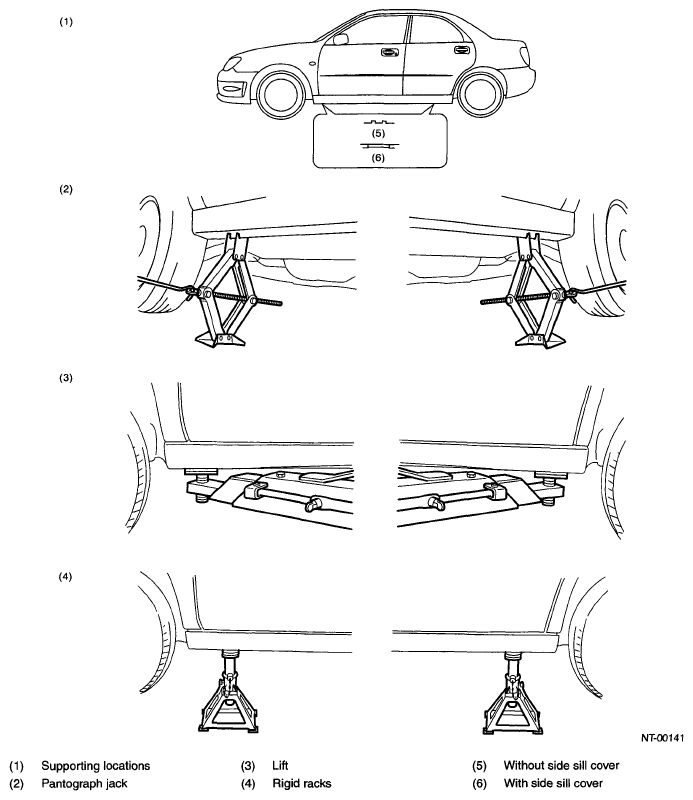

Fig 1: Identifying Vehicle Lift And Jack Position (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

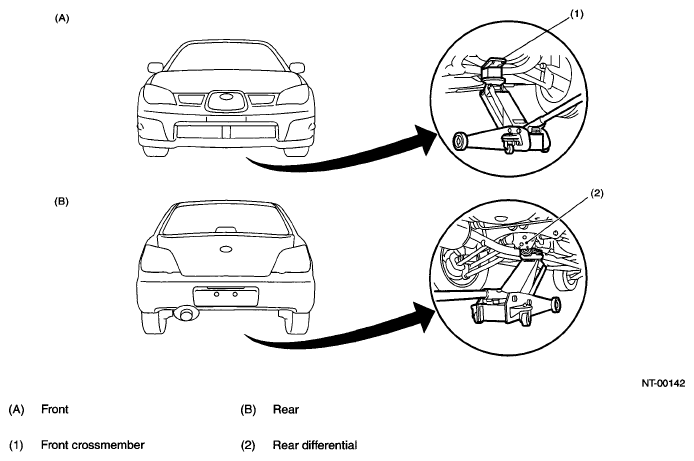

Fig 2: Identifying Vehicle Lift And Jack Position (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
