Front Hood Stay Installation

At the check and general maintenance

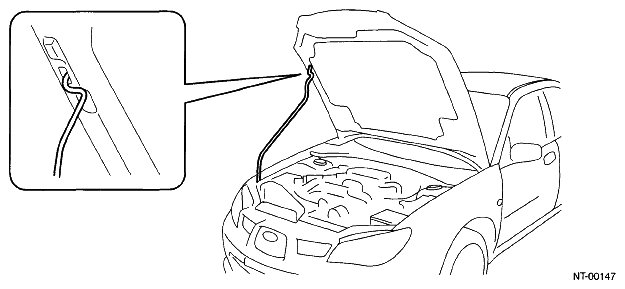

Fig 1: Identifying Hood Stay

Courtesy of SUBARU OF AMERICA, INC.

When wider hood opening is necessary

1. Remove the hood stay.
2. Set the stay into the hole of front hood inner.
3. Remove the grommet in the wheel apron, and set the lower end of stay into hole.

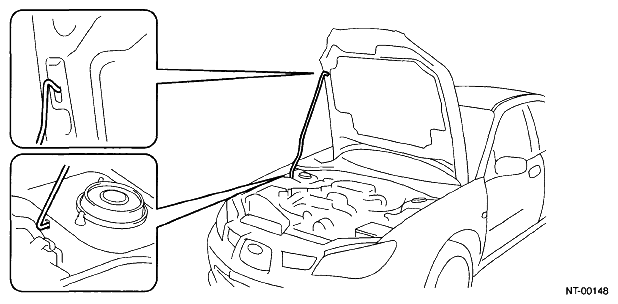

Fig 2: Identifying Hook Stay And Grommet In Wheel Apron

Courtesy of SUBARU OF AMERICA, INC.
