Engine Controls (Diagnostics) (H4SO): Electrical Component Location: Location: Engine

Control module

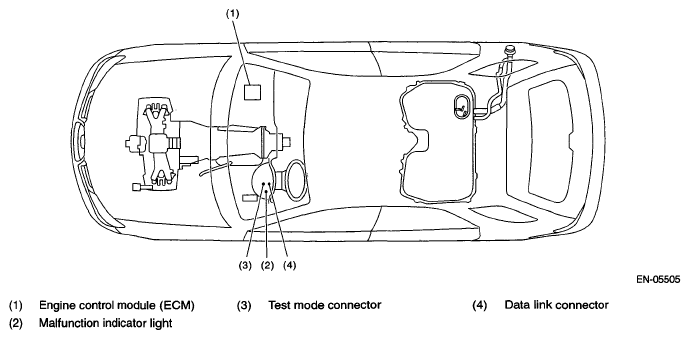

Fig 1: Identifying Engine Electrical Component Location - Control Module (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

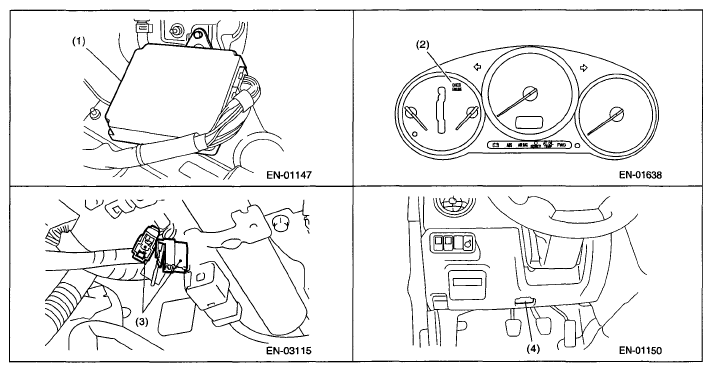

Fig 2: Identifying Engine Electrical Component Location - Control Module (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

Sensor

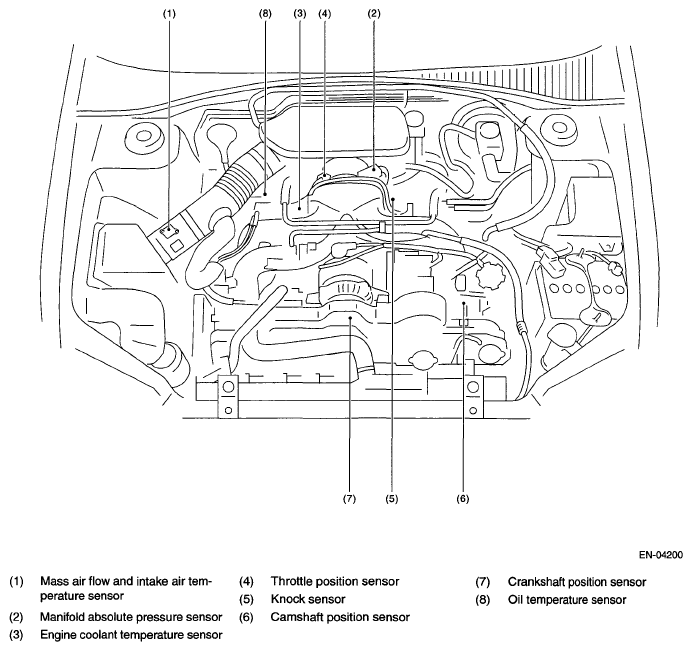

Fig 3: Identifying Engine Electrical Component Location - Sensor (1 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

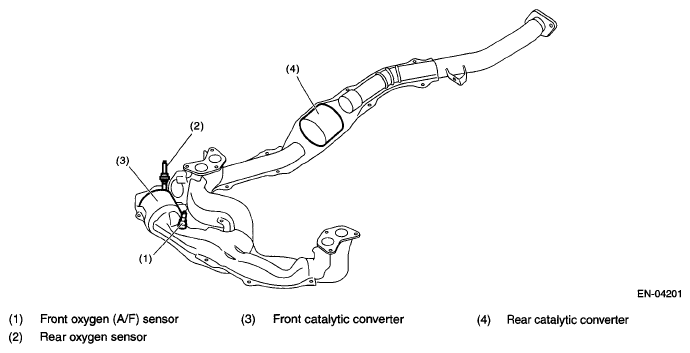

Fig 4: Identifying Engine Electrical Component Location - Sensor (2 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Identifying Engine Electrical Component Location - Sensor (3 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

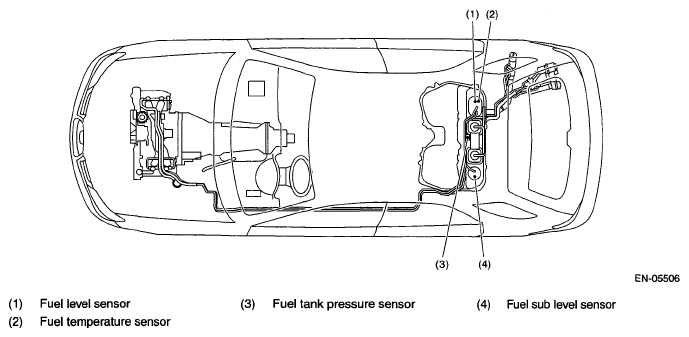

Fig 6: Identifying Engine Electrical Component Location - Sensor (4 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

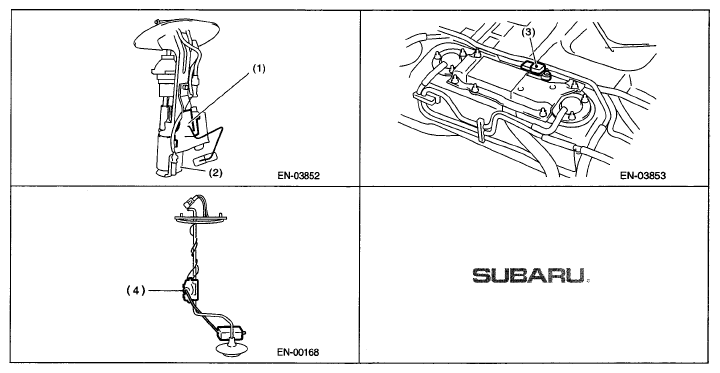

Fig 7: Identifying Engine Electrical Component Location - Sensor (5 Of 5)

Courtesy of SUBARU OF AMERICA, INC.

Solenoid valve, emission control system parts, ignition system parts

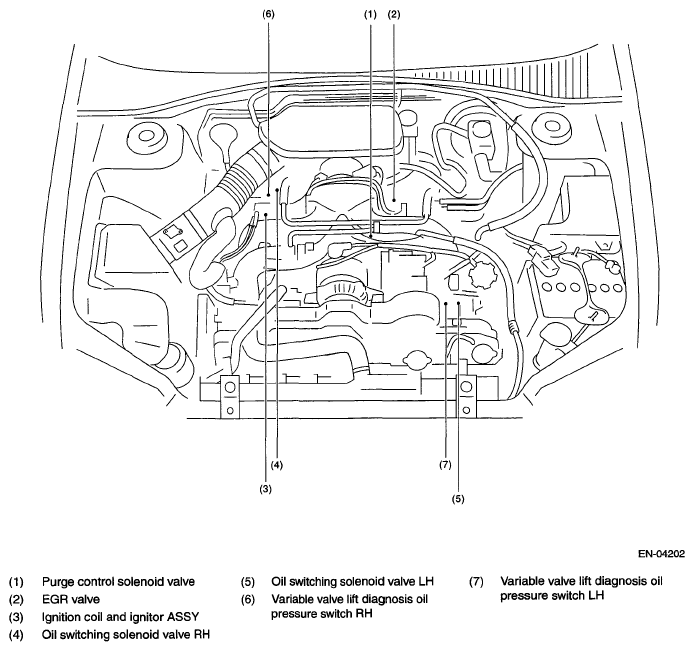

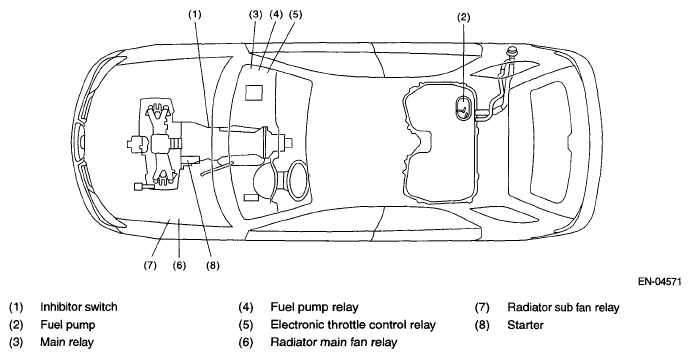

Fig 8: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Electrical Component Location (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

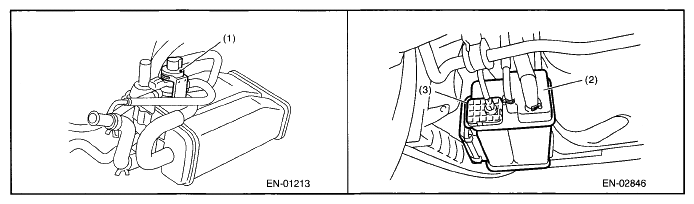

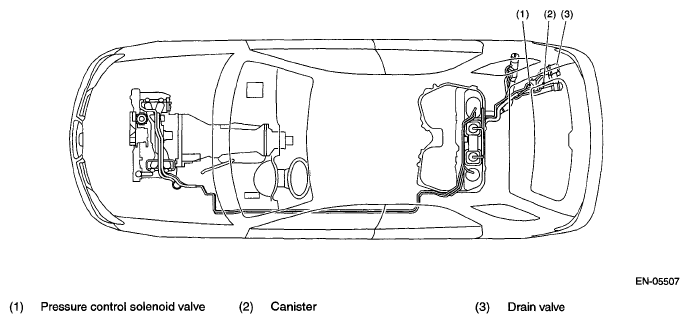

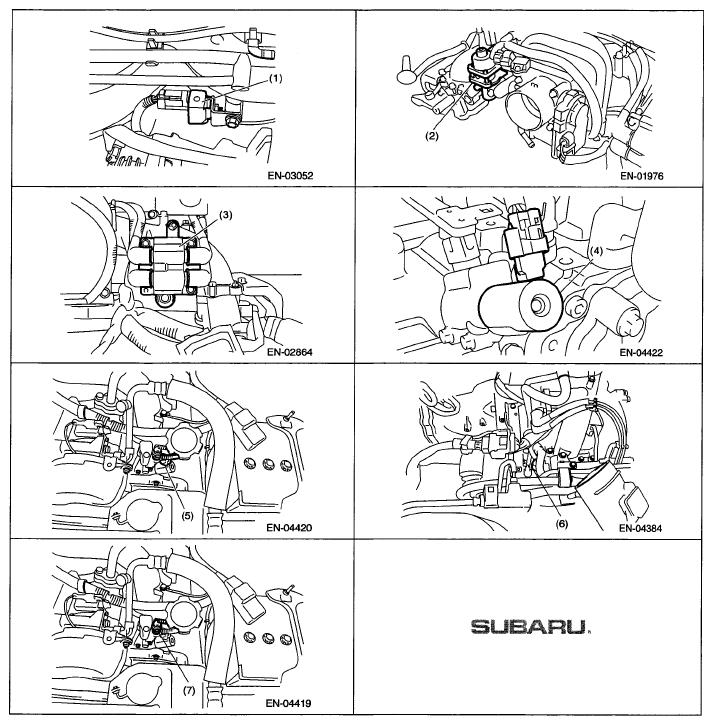

Fig 9: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Electrical Component Location (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

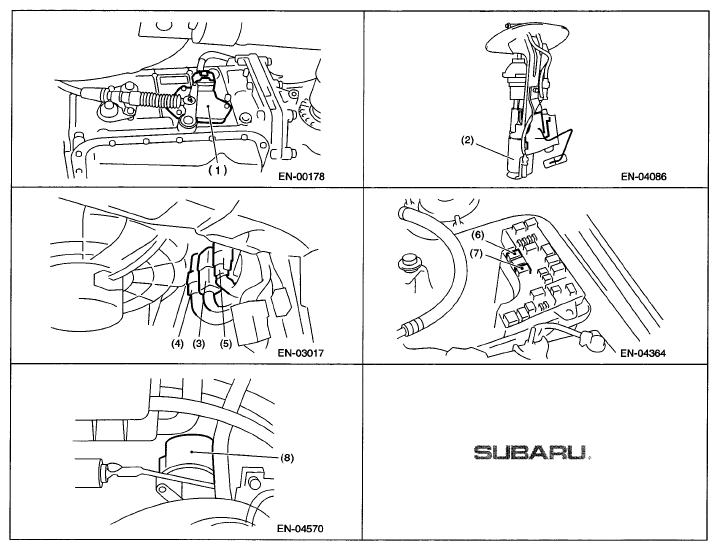

Fig 10: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Electrical Component Location (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 11: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Electrical Component Location (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 12: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Electrical Component Location (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying Solenoid Valve, Emission Control System Parts And Ignition System Electrical Component Location (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
