Rear Suspension: General Description: Specification
REAR SUSPENSION SPECIFICATION
| Model | Sedan | Wagon | OUTBACK | |||
|---|---|---|---|---|---|---|
| Non-turbo | Turbo | STi | Non-turbo | Turbo | ||
| Camber (Tolerance: +/-0°45' Adjustment standard: +/-0°30') | -1°25' | -1°30' | -1°40' | -1°15' | -1°20' | -1°10' |

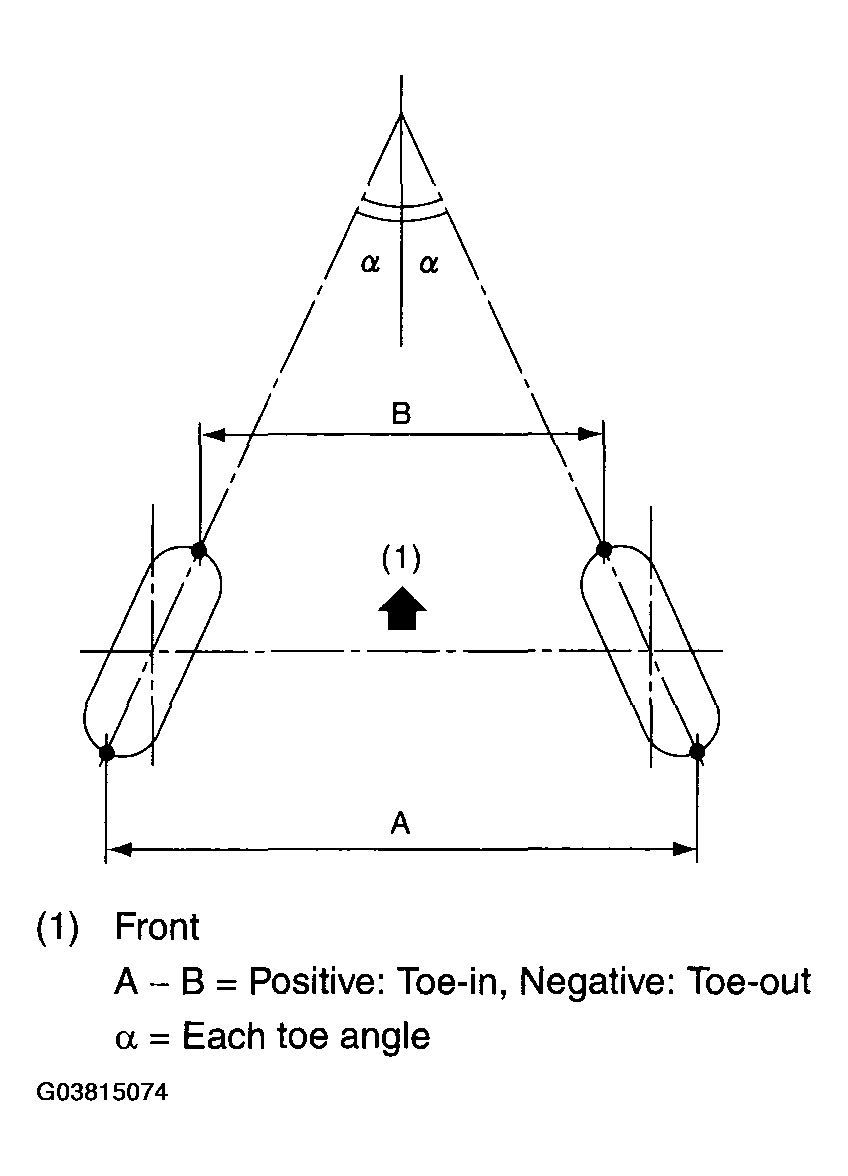

| Toe-in | Tolerance: 0+/-3 mm (0+/-0.12 in), Toe angle (The sum of both wheels): +/-0°15' Tolerance: 0+/-2 mm (0+/-0.08 in), Toe angle (The sum of both wheels): +/-0°10' |
|||||
| Wheel arch height [Tolerance: +12/-24 mm (+0.47/-0.94 in)] | 381 mm (15.0 in) | 376 mm (14.80 in) | 363 mm (14.29 in) | 381 mm (15.0 in) | 376 mm (14.80 in) | 386 mm (15.20 in) |
| Thrust angle | Tolerance: +/-0°30', Adjustment standard: +/-0°20' | |||||
| Diameter of stabilizer | 13 mm (0.51 in) | 17 mm (0.67 in) | 20 mm (0.79 in) | 13 mm (0.51 in) | 17 mm (0.67 in) | 13 mm (0.51 in) |
NOTE:
- Front and rear toe-in and front camber can be adjusted. If toe-in or camber exceeds tolerance, adjust toe-in and camber to the adjustment standard.
- The other items indicated in the specification table cannot be adjusted. If the other items exceed specifications, check suspension parts and connections for deformities; replace with new ones as required.
