Home >> Subaru >> 2007 >> Impreza Outback Sport, Automatic >> Repair and Diagnosis >> Steering >> Power Steering >> Power Steering System >> General Description >> Components With Torque Specifications >> Steering Wheel And Column

Steering Wheel And Column

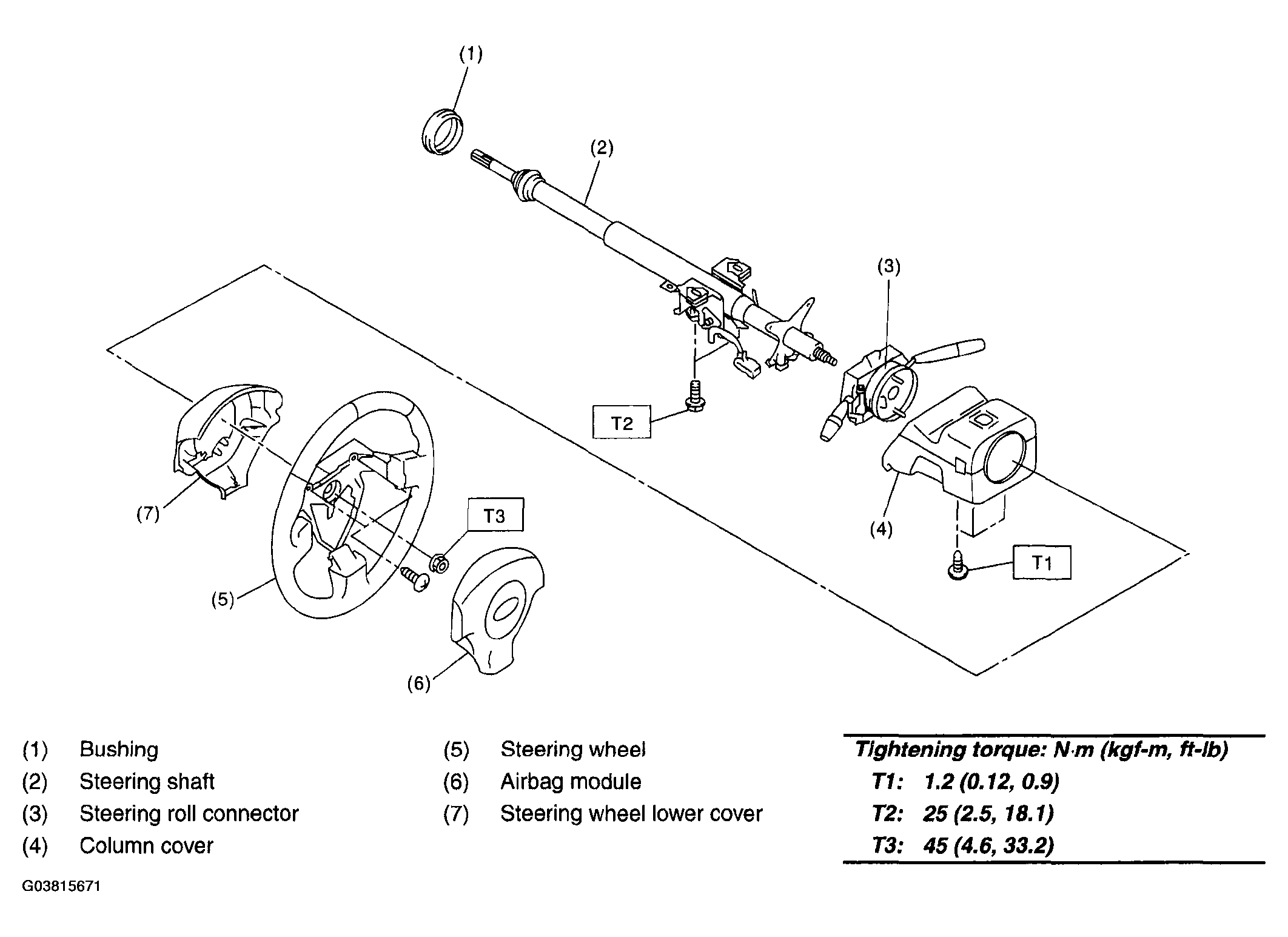

Fig 1: Exploded View Of Steering Wheel And Column With Torque Specifications

G03815671

Courtesy of SUBARU OF AMERICA, INC.
