Components With Torque Specifications

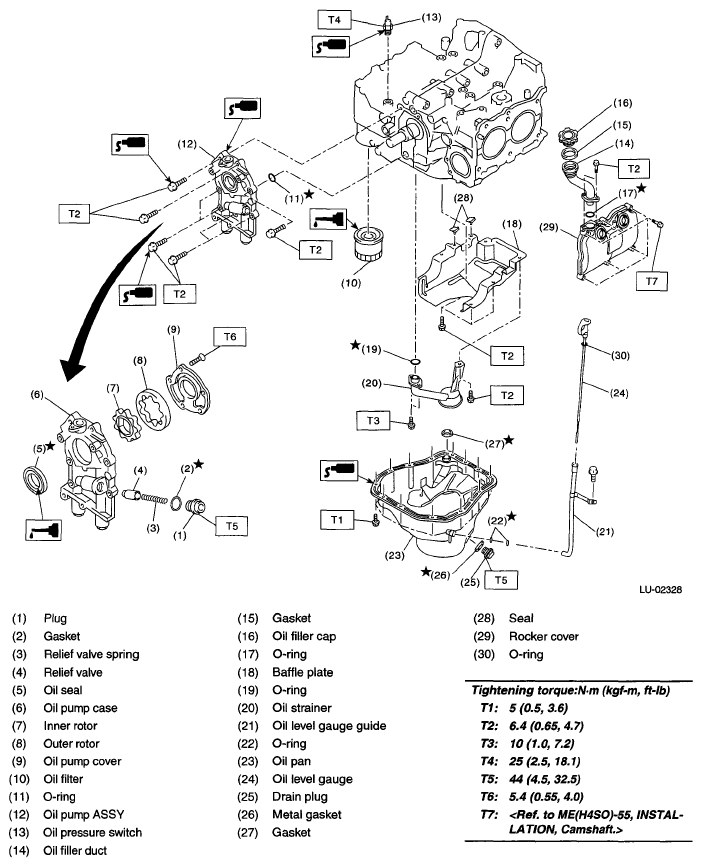

Fig 1: Engine Components With Torque Specifications

G05333145

Courtesy of SUBARU OF AMERICA, INC.
