STI Model

CAUTION:

Use gloves to avoid damage and getting fingerprints on the glass surface and meter surfaces.
Do not disassemble the meter main assembly of STI model.

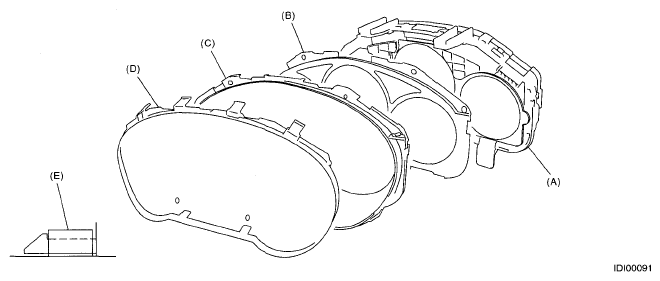

Disengage the claw (E) to remove the meter glass (D), reflector (C), and window plate (B) from the meter main assembly (A).

Fig 1: Identifying Meter Glass, Reflector, And Window Plate From Meter Main Assembly

Courtesy of SUBARU OF AMERICA, INC.
