Components With Torque Specifications: Sensor

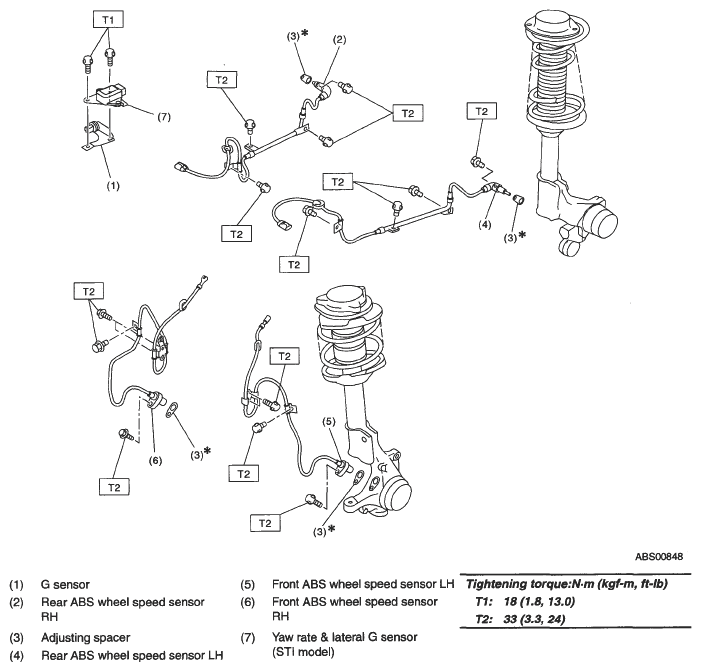

Fig 1: ABS Sensor Replacement Components With Torque Specifications

G05336477

Courtesy of SUBARU OF AMERICA, INC.
