Conditions For Abs Sequence Control

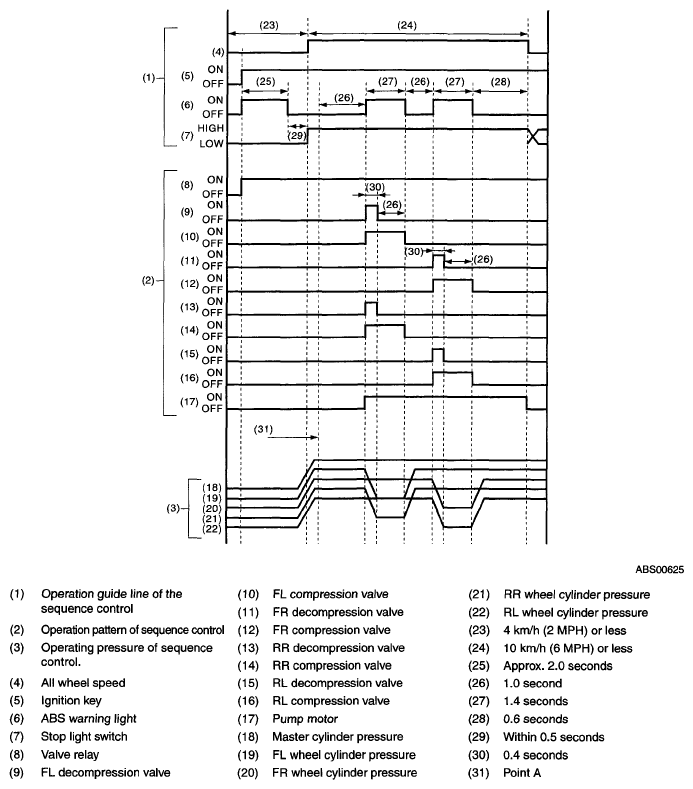

Fig 1: Identifying ABS Sequence Control Timing Chart

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

When using the Subaru Select Monitor, the control operation starts from point A. (However it is necessary to turn the stop light switch to ON before point A.)
HIGH indicates high voltage.
LOW indicates low voltage.
