Driver's Control Center Differential Control Module I/O Signal Connector End Views (6-Speed M/T)

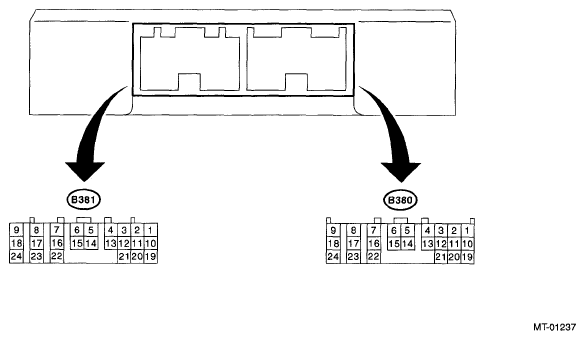

Fig 1: Driver's Control Center Differential Control Module I/O Signal Connector End Views (6-Speed M/T)
G05003602Courtesy of SUBARU OF AMERICA, INC.
