AT Shift Lock Control System: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

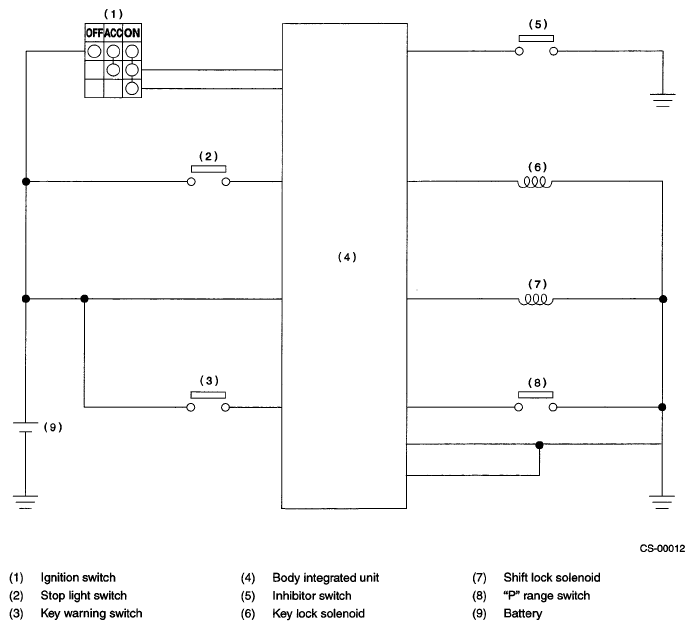

Fig 1: Identifying AT Shift Lock Control System - Wiring Diagram
G05335493Courtesy of SUBARU OF AMERICA, INC.
