Hood Lock And Remote Openers

WARNING: This page is about a different car, the 2006 Subaru Impreza. However, it is still accessible from the selected car via links, so may be relevant.

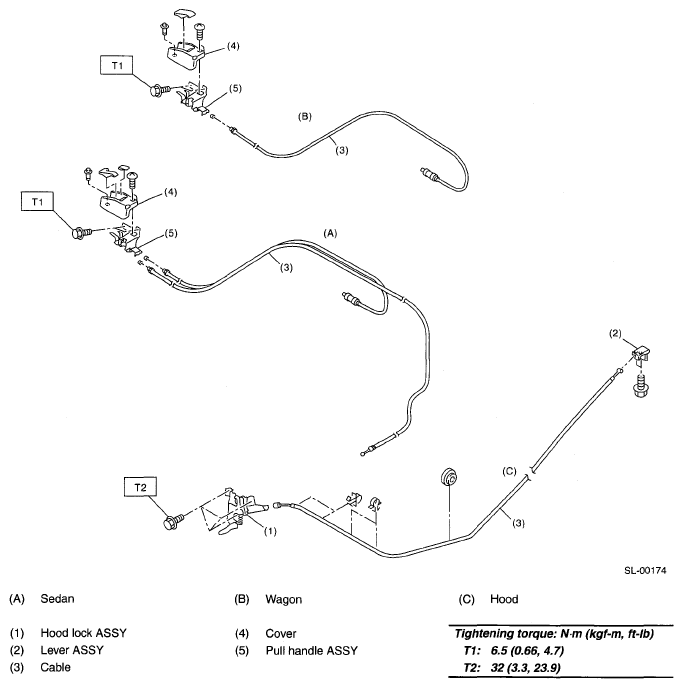

Fig 1: Exploded View Of Hood Lock And Remote Openers With Torque Specifications
G05004366
