Front Bushing

Using the ST, press the front bushing out of place. ST 927720000 INSTALLER & REMOVER SET

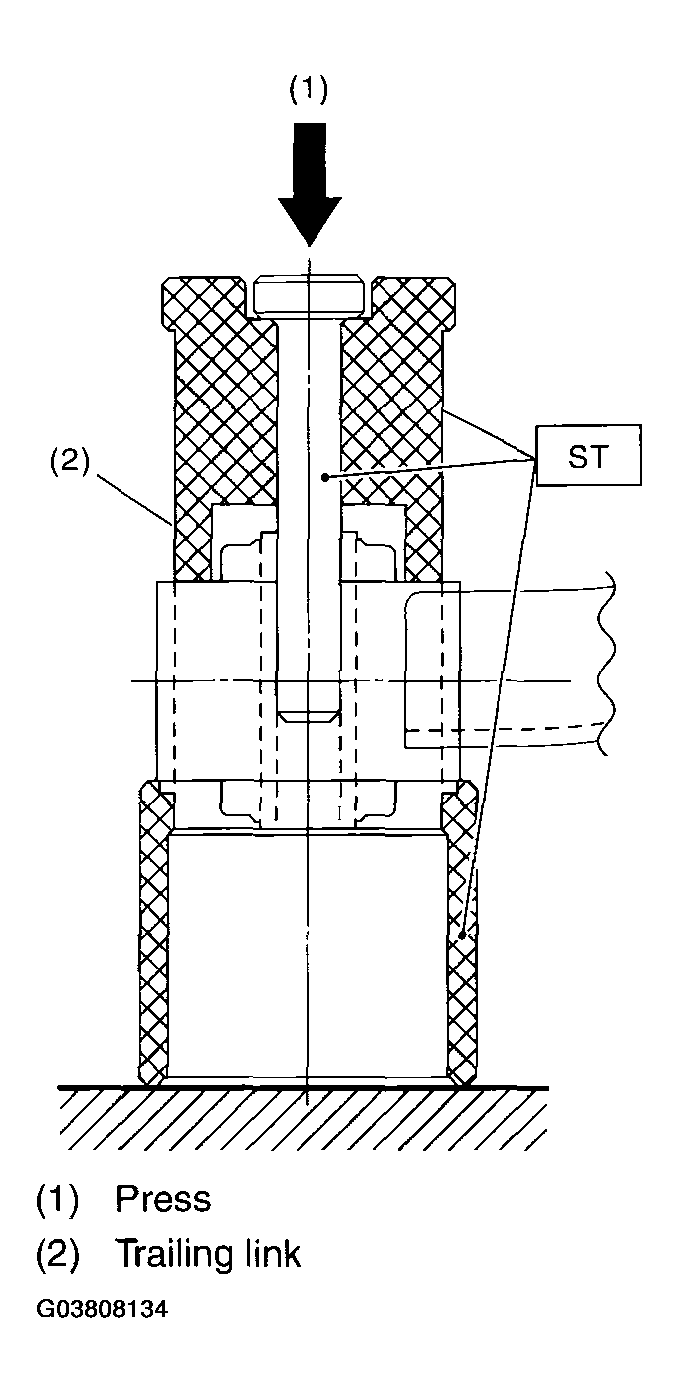

Fig 1: Identifying Front Bushing Using Installer And Remover Set ST 927720000
G03808134Courtesy of SUBARU OF AMERICA, INC.
