Reservoir Tank: Removal

  1. Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct. >
  2. Drain fluid from the reservoir tank.
  3. Disconnect the pipe D from return hose and suction hose from oil pump.
    CAUTION:
    • Do not allow fluid from the hose end to come into contact with pulley belt.
    • To prevent foreign matter from entering the hose and pipe, cover the open ends of them with a clean cloth.

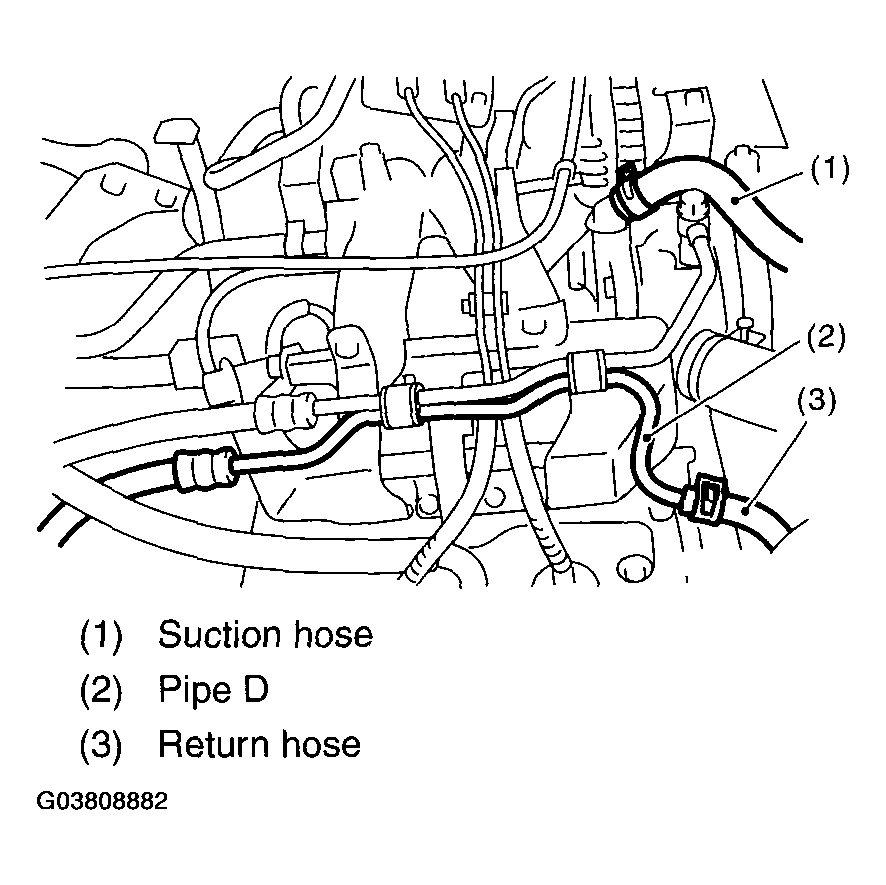

      Fig 1: Identifying Pipe From Return Hose
      G03808882Courtesy of SUBARU OF AMERICA, INC.
  4. Remove the reservoir tank from bracket by pulling it upwards.
