Turbo Model

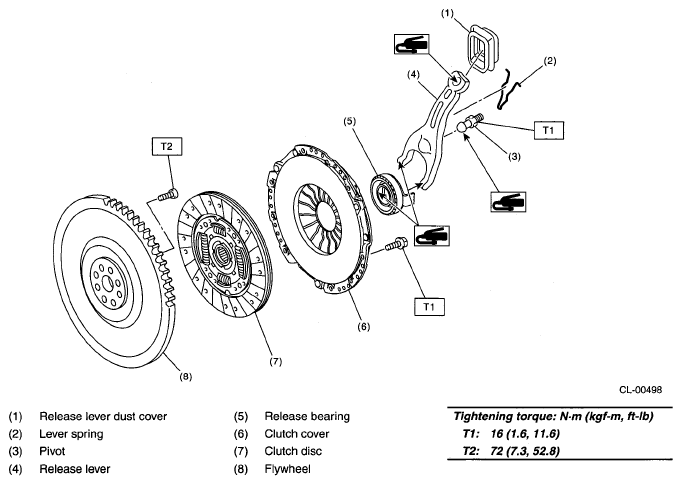

Fig 1: Clutch Assembly Replacement Components (Turbo Model) With Torque Specifications

G05327174

Courtesy of SUBARU OF AMERICA, INC.
