Non-Turbo Model

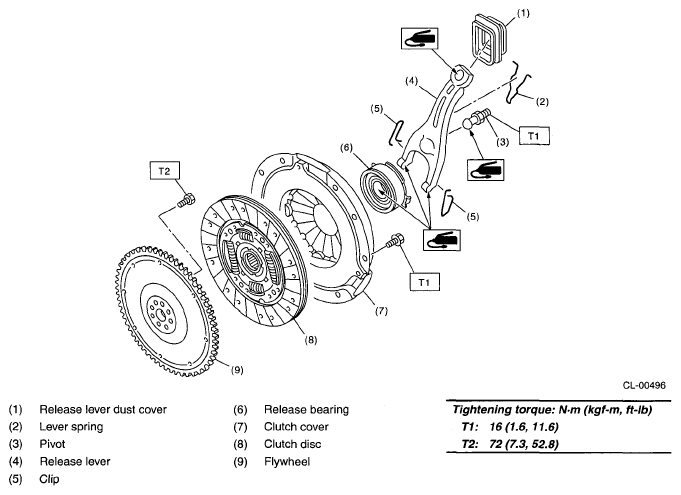

Fig 1: Clutch Assembly Replacement Components (Non-Turbo Model) With Torque Specifications

G05327173

Courtesy of SUBARU OF AMERICA, INC.
