Steering Wheel: Removal

  1. Disconnect the ground cable from battery.
  2. Set the tires to straight-ahead position.
  3. Remove the airbag module. < Ref. to REMOVAL , Driver's Airbag Module. >
    WARNING: Always refer to "Airbag System" before performing airbag module service. < Ref. to CAUTION , General Description. >
  4. Make matching marks on the steering wheel and steering shaft.

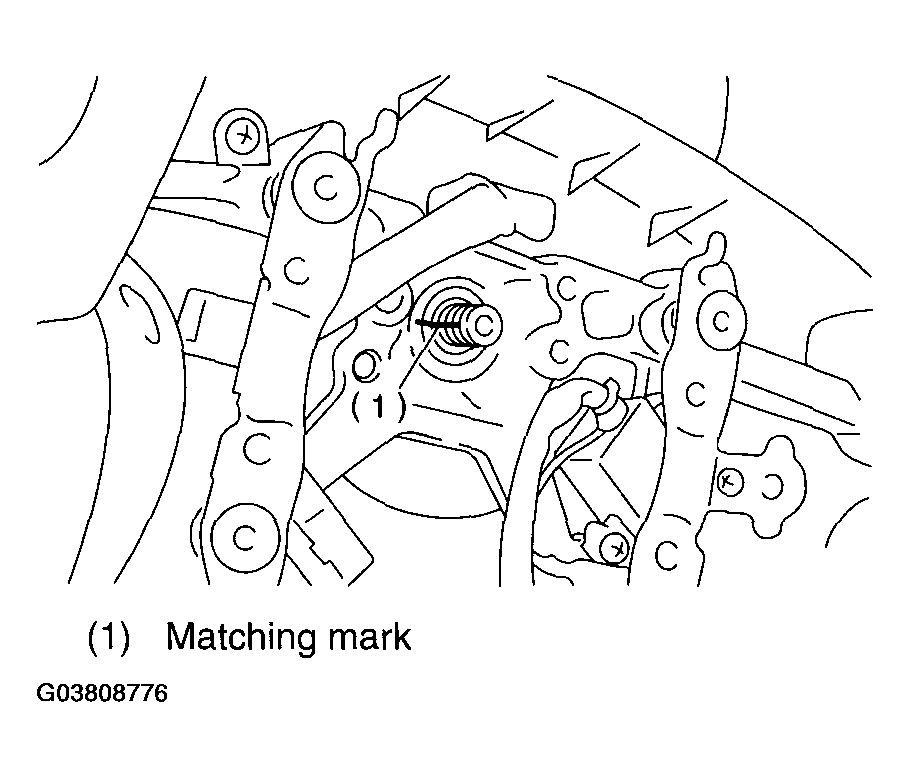

    Fig 1: Identifying Matching Marks
    G03808776Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the steering wheel nut, and then draw out the steering wheel from shaft using steering puller.
