Special Tool

SPECIAL TOOL DESCRIPTION

ILLUSTRATION	TOOL NUMBER	DESCRIPTION	REMARKS
Fig 1	925700000-	WRENCH	Used for removing and installing tie-rod. Apply this tool to rack.
Fig 2	925711000	PRESSURE GAUGE	Used for measuring oil pump pressure.
Fig 3	926200000	STAND	Used for disassembling gearbox assembly and inspecting characteristic of it.
Fig 4	34099AC010	ADAPTER HOSE A	Used with PRESSURE GAUGE (925711000).
Fig 5	34099AC020	ADAPTER HOSE B	Used with PRESSURE GAUGE (925711000).
Fig 6	926230000	SPANNER	For the lock nut when adjusting backlash of gearbox.
Fig 7	34099PA100	SPANNER	Used for measurement of rotating resistance of gearbox assembly.
Fig 8	34199AE040	OIL CHARGE GUIDE	Used for charging power steering fluid.
Fig 9	926250000	GUIDE	Used for installing holder ASSY into rack housing.
Fig 10	927490000	INSTALLER A, B, C	Used for installing oil seal into rack assembly.
Fig 11	927580000	REMOVER	Used for removing back-up ring and oil seal.
Fig 12	34199AE000	GUIDE	Used for installing rack and seal into housing assembly.
Fig 13	34099FA030	INSTALLER & REMOVER	Used for removing and installing rack oil seal (outer & inner).
Fig 14	34199AE010	INSTALLER	Used for installing rack oil seal (outer).
Fig 15	34099FA060	PUNCH HOLDER	Used for caulking.
Fig 16	34099FA070	BASE	Used for supporting housing assembly.
Fig 17	34099FA080	PUNCH	Used for removing caulking.
Fig 18	34199AE090	PLUG WRENCH	Used for removing plug.
Fig 19	34199AE100	OIL SEAL PLUG REMOVER	Used for removing oil seal plug.
Fig 20	34199AE110	OIL SEAL PLUG INSTALLER	Used for installing oil seal plug.
Fig 21	34199AE120	GEARBOX OIL SEAL REMOVER	Used for removing gearbox oil seal.
Fig 22	34199AE130	GEARBOX OIL SEAL INSTALLER	Used for installing gearbox oil seal.

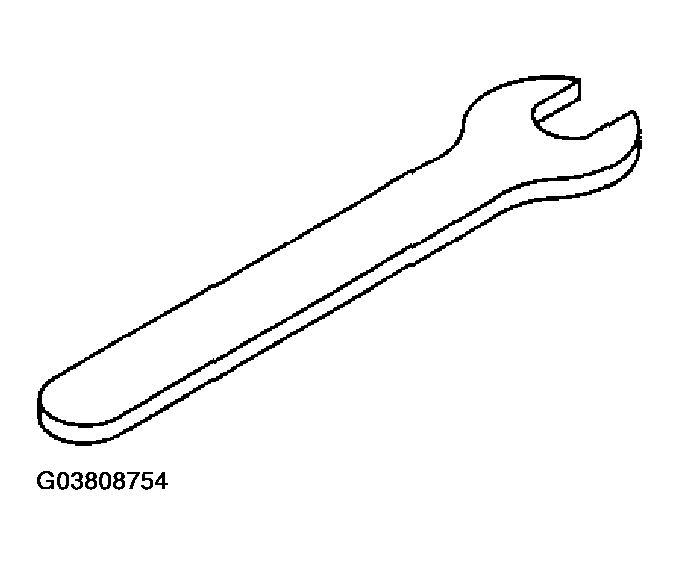

Fig 1: Identifying ST-925700000

G03808754

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Identifying ST-925711000

G03808755

Courtesy of SUBARU OF AMERICA, INC.

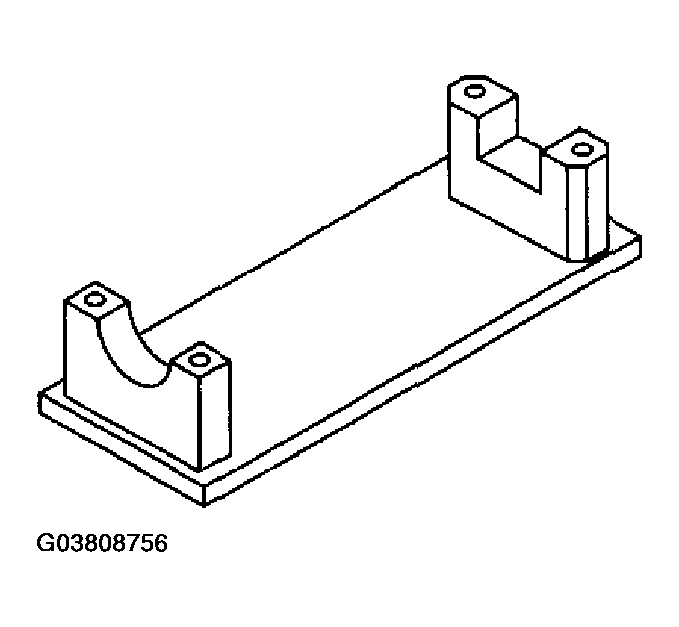

Fig 3: Identifying ST-926200000

G03808756

Courtesy of SUBARU OF AMERICA, INC.

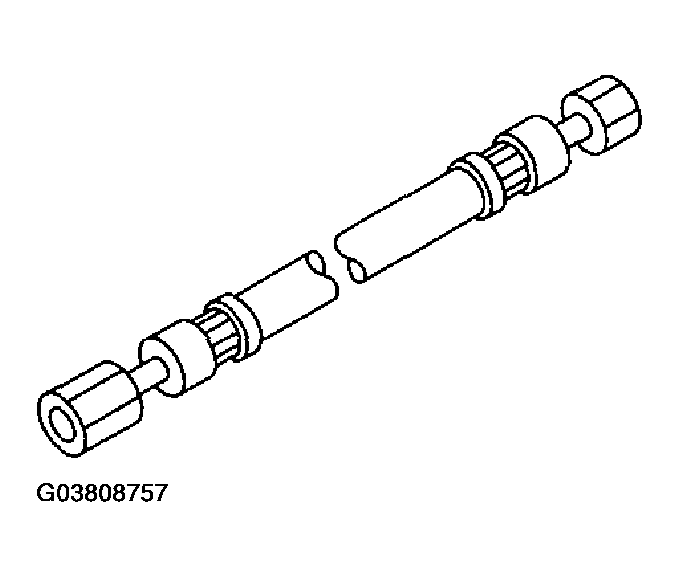

Fig 4: Identifying ST-34099AC010

G03808757

Courtesy of SUBARU OF AMERICA, INC.

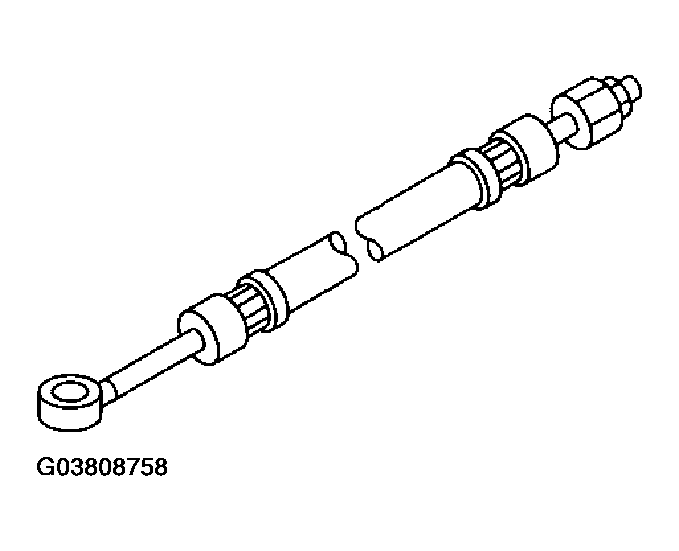

Fig 5: Identifying ST34099AC020

G03808758

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Identifying ST-926230000

G03808759

Courtesy of SUBARU OF AMERICA, INC.

Fig 7: Identifying ST34099PA100

G03808760

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying ST34199AE040

G03808761

Courtesy of SUBARU OF AMERICA, INC.

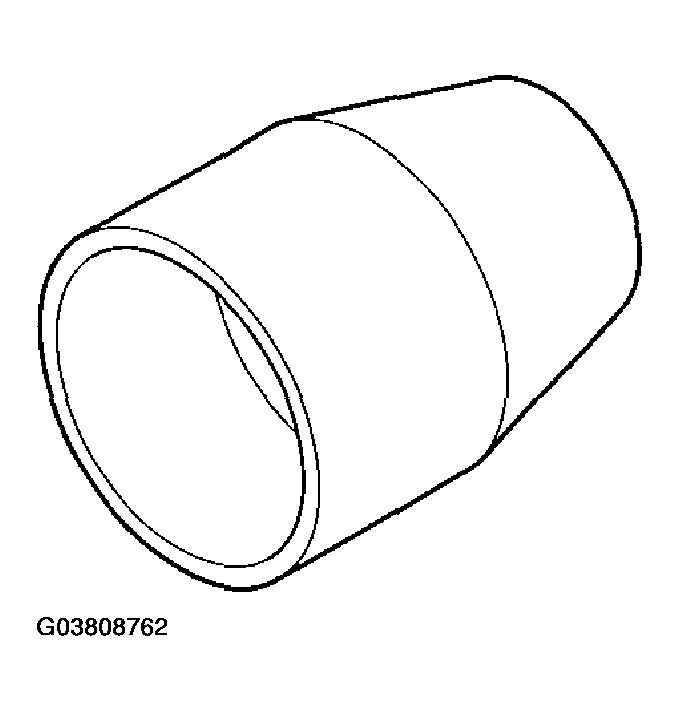

Fig 9: Identifying ST-926250000

G03808762

Courtesy of SUBARU OF AMERICA, INC.

Fig 10: Identifying ST-927490000

G03808763

Courtesy of SUBARU OF AMERICA, INC.

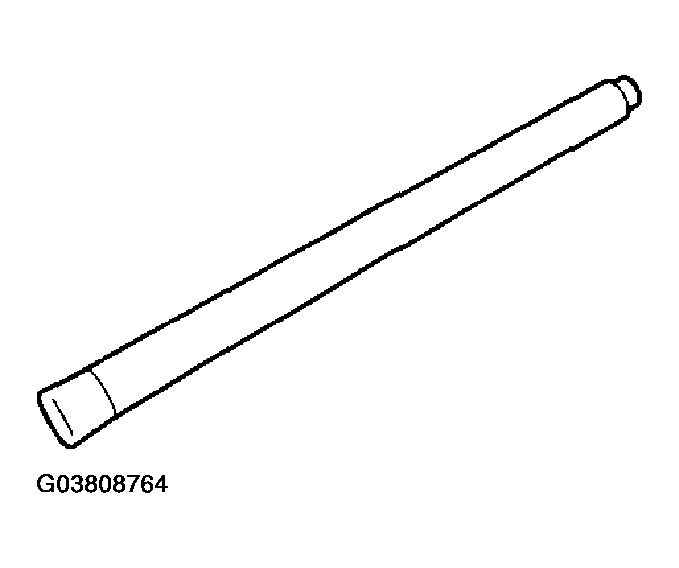

Fig 11: Identifying ST-927580000

G03808764

Courtesy of SUBARU OF AMERICA, INC.

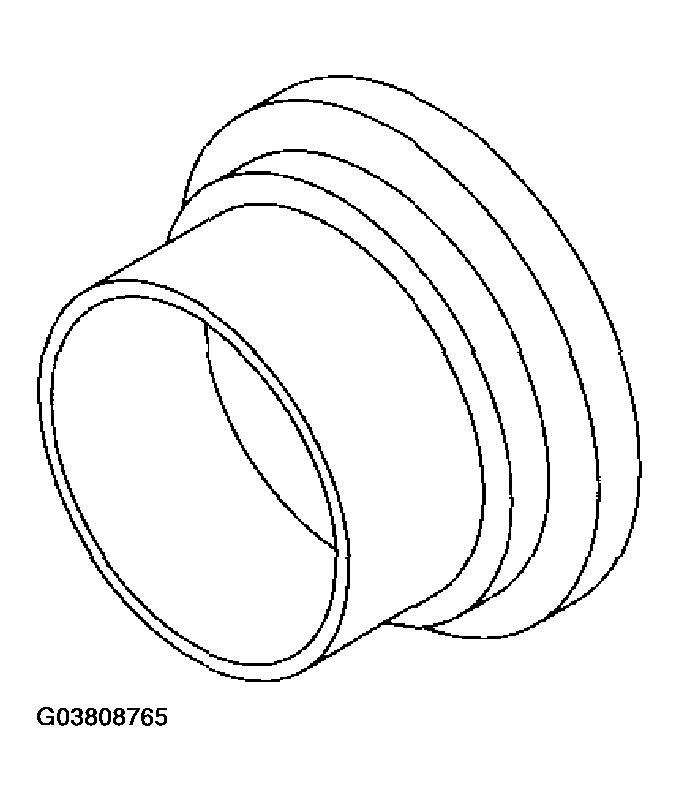

Fig 12: Identifying ST34199AE000

G03808765

Courtesy of SUBARU OF AMERICA, INC.

Fig 13: Identifying ST34099FA030

G03808766

Courtesy of SUBARU OF AMERICA, INC.

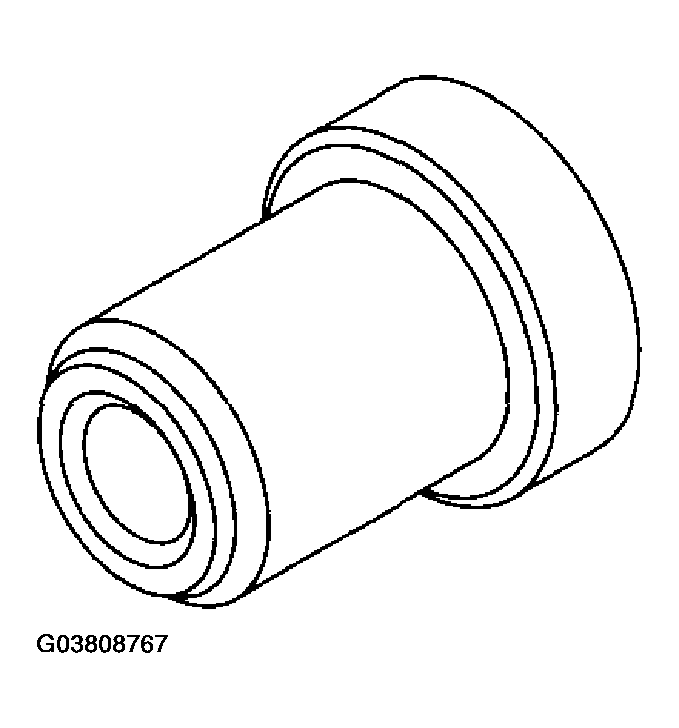

Fig 14: Identifying ST34199AE010

G03808767

Courtesy of SUBARU OF AMERICA, INC.

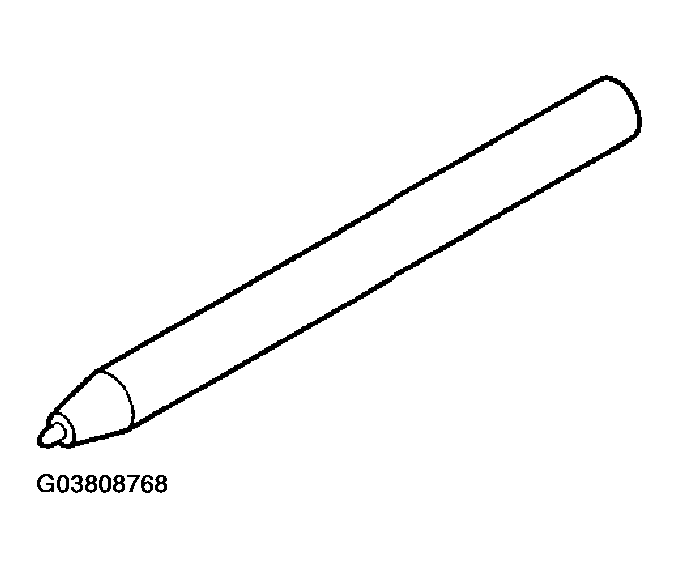

Fig 15: Identifying ST34099FA060

G03808768

Courtesy of SUBARU OF AMERICA, INC.

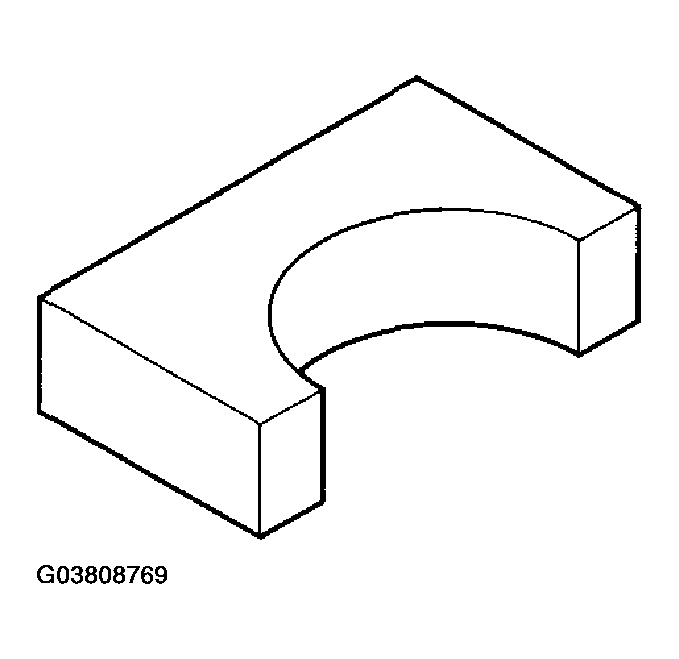

Fig 16: Identifying ST34099FA070

G03808769

Courtesy of SUBARU OF AMERICA, INC.

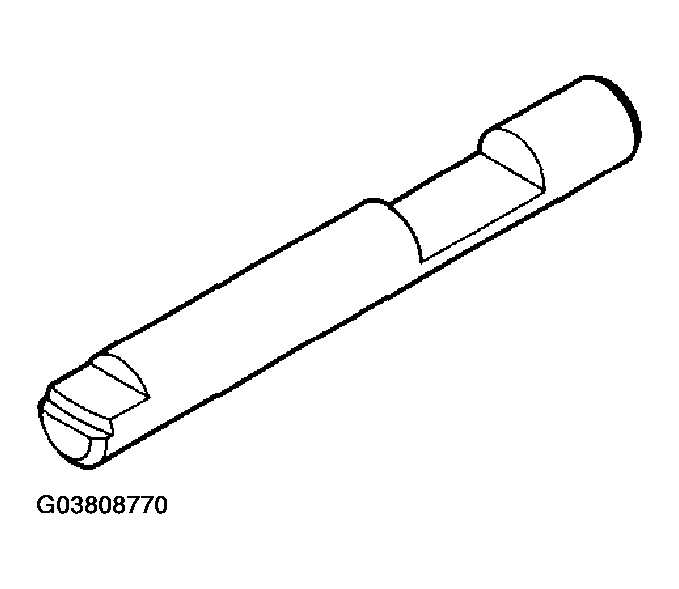

Fig 17: Identifying ST34099FA080

G03808770

Courtesy of SUBARU OF AMERICA, INC.

Fig 18: Identifying ST34199AE090

G03808771

Courtesy of SUBARU OF AMERICA, INC.

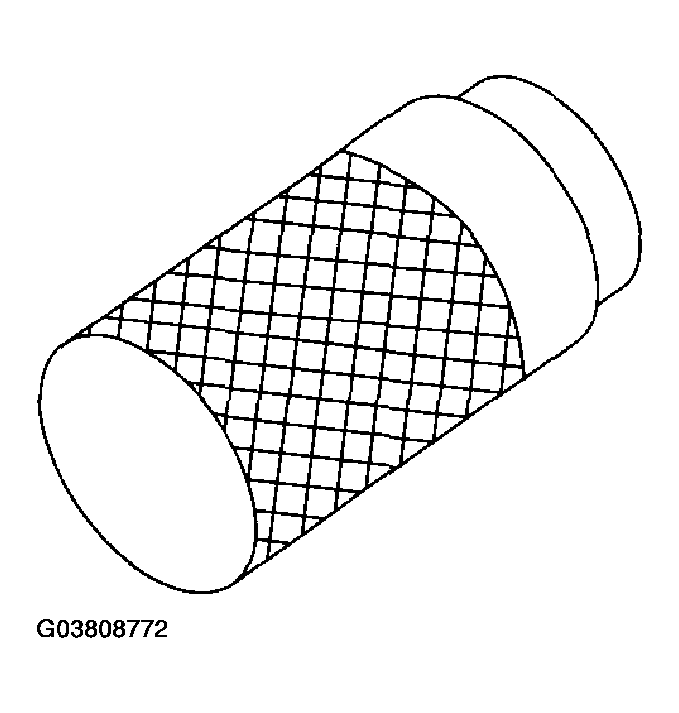

Fig 19: Identifying ST34199AE100

G03808772

Courtesy of SUBARU OF AMERICA, INC.

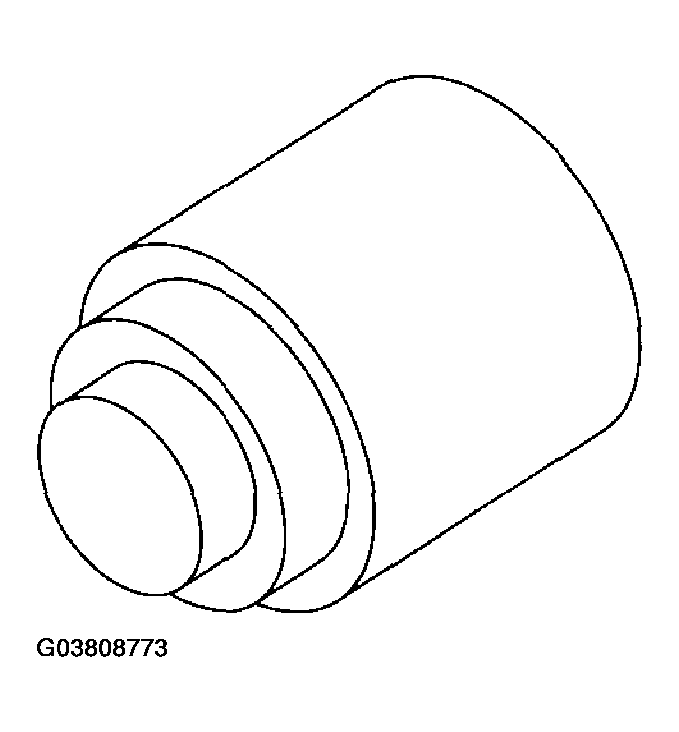

Fig 20: Identifying ST34199AE110

G03808773

Courtesy of SUBARU OF AMERICA, INC.

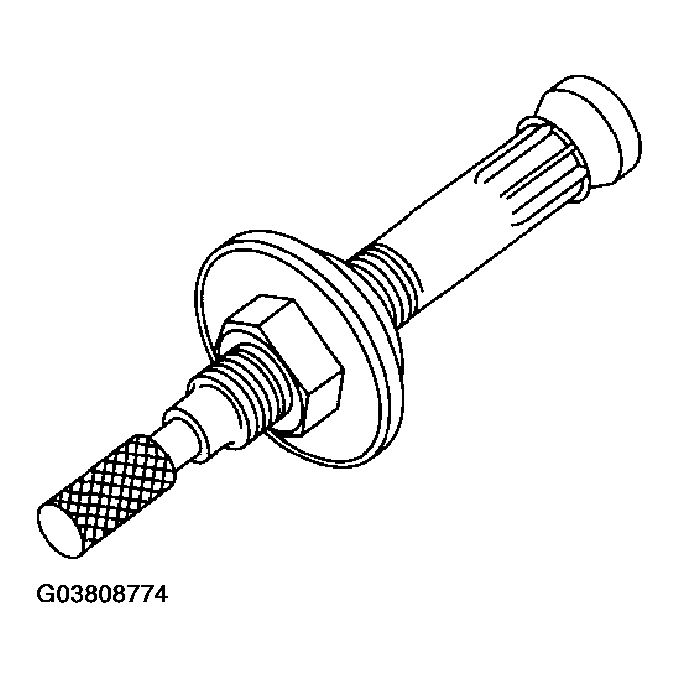

Fig 21: Identifying ST34199AE120

G03808774

Courtesy of SUBARU OF AMERICA, INC.

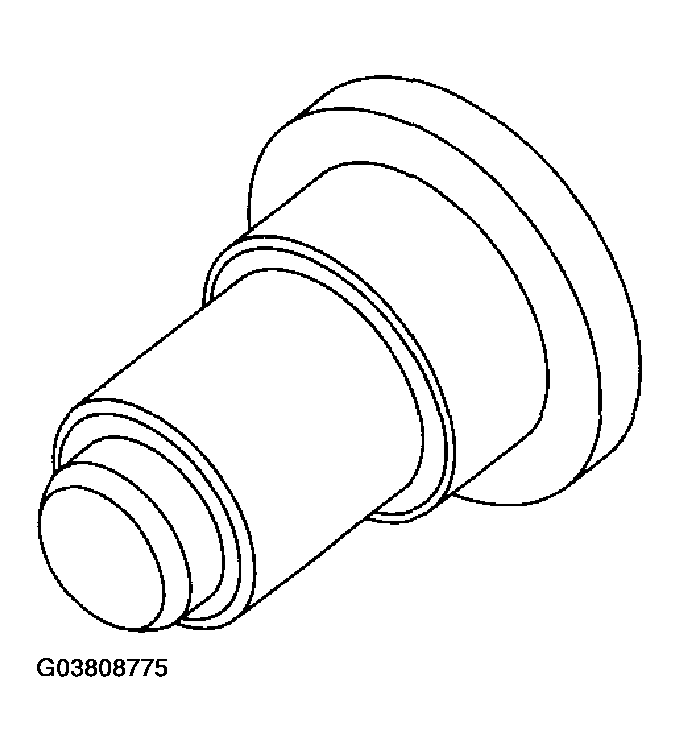

Fig 22: Identifying ST34199AE130

G03808775

Courtesy of SUBARU OF AMERICA, INC.
