Home >> Subaru >> 2007 >> Forester X, Standard >> Repair and Diagnosis (Single Page) >> Engine Mechanical >> Lubrication System >> Engine Lubrication System (H4SO) >> General Description >> Components With Torque Specifications >> Turbo Model

Turbo Model

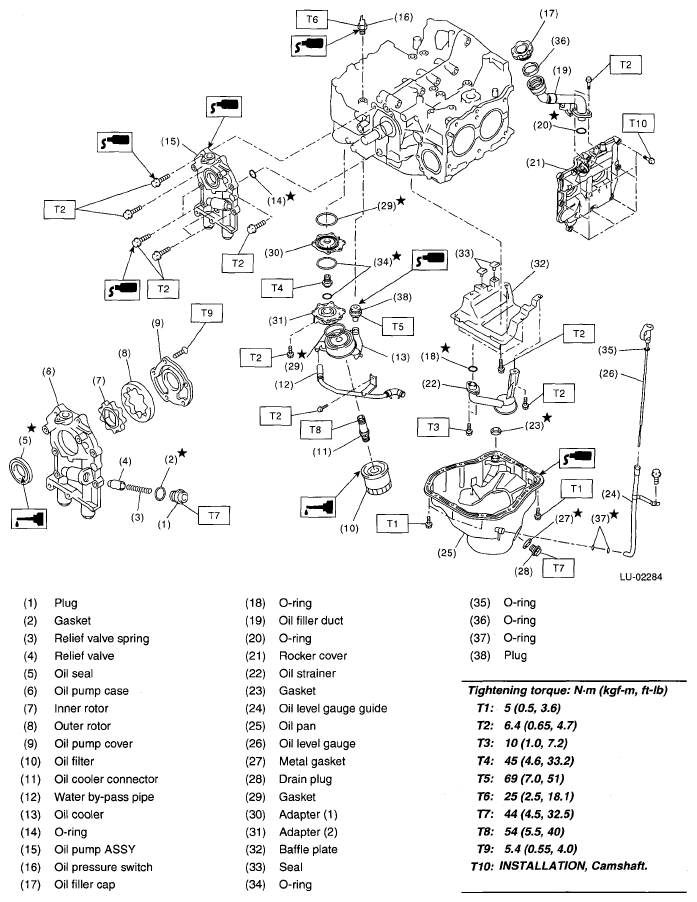

Fig 1: Turbo Model Components With Torque Specifications
G05323925Courtesy of SUBARU OF AMERICA, INC.
