Automatic Transmission (4AT)
>>
General Description
>>
Components With Torque Specifications
>>
Reduction Gear
Reduction Gear

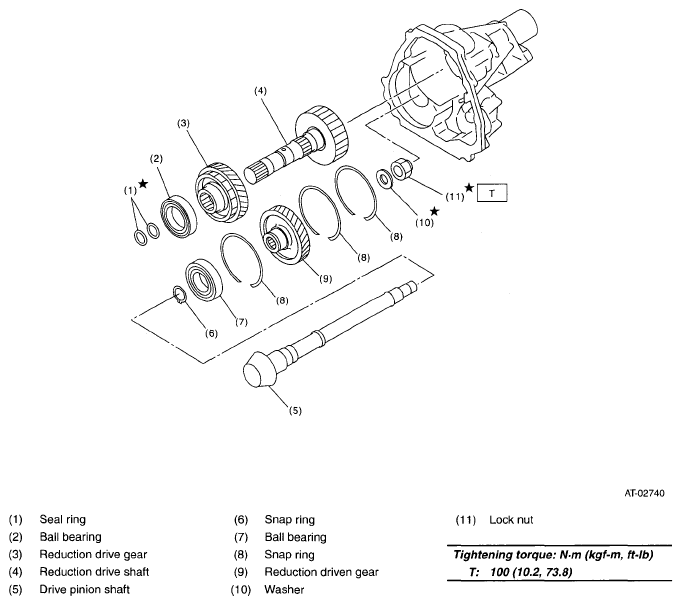

Fig 1: Identifying Reduction Gear Components With torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
