Intake Manifold Modification (02-104-08)
Publication date: 2008-02-19Reference number: 02-104-08
INTAKE MANIFOLD MODIFICATION
TECHNICAL SERVICE BULLETIN
Reference Number(s): 02-104-08, Date of Issue:
February 19, 2008
| SUBARU: | 2006-2007MY Impreza and Forester 2.5L NA |
INTRODUCTION

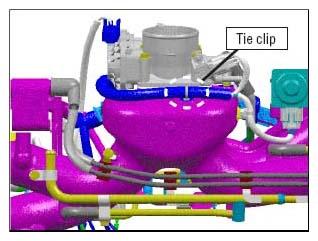

The purpose of this bulletin is to inform you of a modification which was made to the intake manifold. The boss and tie clip that secured the engine harness to the intake manifold was removed.
In addition, on Forester models the mounting position of the purge control solenoid valve bracket was slightly moved to the right. Due to the modification the shape of the bracket was changed. Therefore, if the intake manifold is replaced, the purge control solenoid valve will also need to be replaced.
COUNTERMEASURE IN PRODUCTION
The countermeasure in production started in November, 2006 with the following VIN's:
VIN NUMBER
| MODEL | STARTING VIN (APPROXIMATE) |
|---|---|
| Impreza Sedan | 7*512675 |
| Impreza Wagon | 7*809895 |
| Forester | 7*732206 |
REPAIR PROCEDURE/INFORMATION

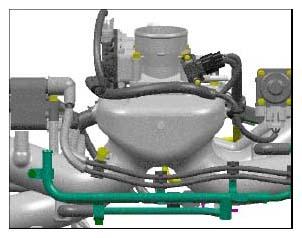

Impreza and Forester
Forester
PART INFORMATION AND INTERCHANGEABILITY
06 & 07 MY Impreza 2.5L NA
INFORMATION AND INTERCHANGEABILITY
| PART NAME | PART NUMBER | INTERCHANGEABILITY | |
|---|---|---|---|
| Manifold Complete - Intake | New | Old | New style part to Older vehicle: Yes Old style part to Newer vehicle: NO |
| 14001AB762 | 14001AB761 14001AB760 |
||
06 & 07 MY Forester 2.5L NA
INFORMATION AND INTERCHANGEABILITY
| PART NAME | PART NUMBER | INTERCHANGEABILITY | |
|---|---|---|---|
| Manifold Complete - Intake | New | Old | New style part to Older vehicle: Yes Old style part to Newer vehicle: NO |
| 14001AB793 | 14001AB790 14001AB791 14001AB792 |
||
| Valve Assembly - Duty Solenoid | 16102AA490 | 16102AA400 | New style part to Older vehicle: Yes Old style part to Newer vehicle: NO |
