Room Light: Removal

WARNING: This page is about a different car, the 2005 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the ground cable from battery.
  2. Remove the lens (A) and room light mounting screws (B).

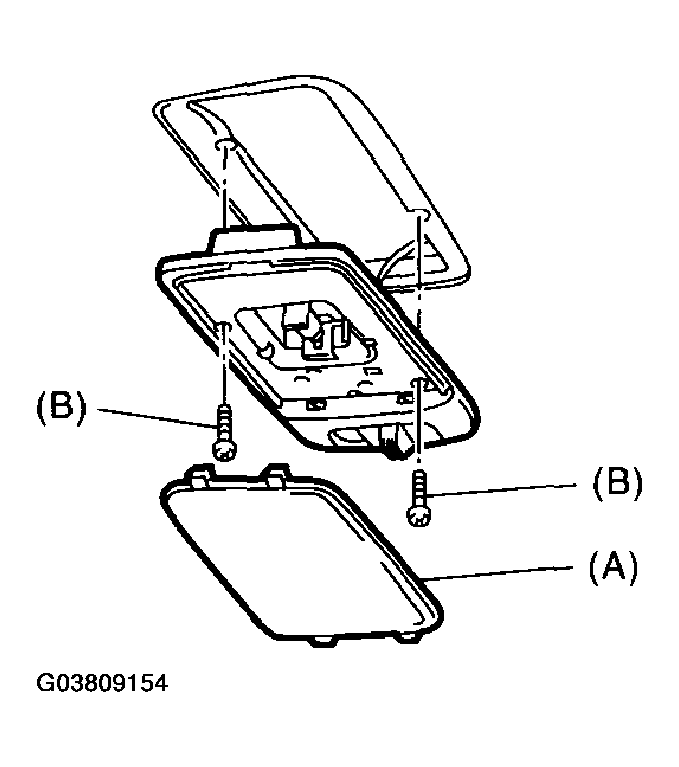

    Fig 1: Removing Lens (A) And Room Light Mounting Screws (B)
    G03809154Courtesy of SUBARU OF AMERICA, INC.
  3. Disconnect the harness connectors and remove the light.
