Front Axle

WARNING: This page is about a different car, the 2006 Subaru Forester. However, it is still accessible from the selected car via links, so may be relevant.

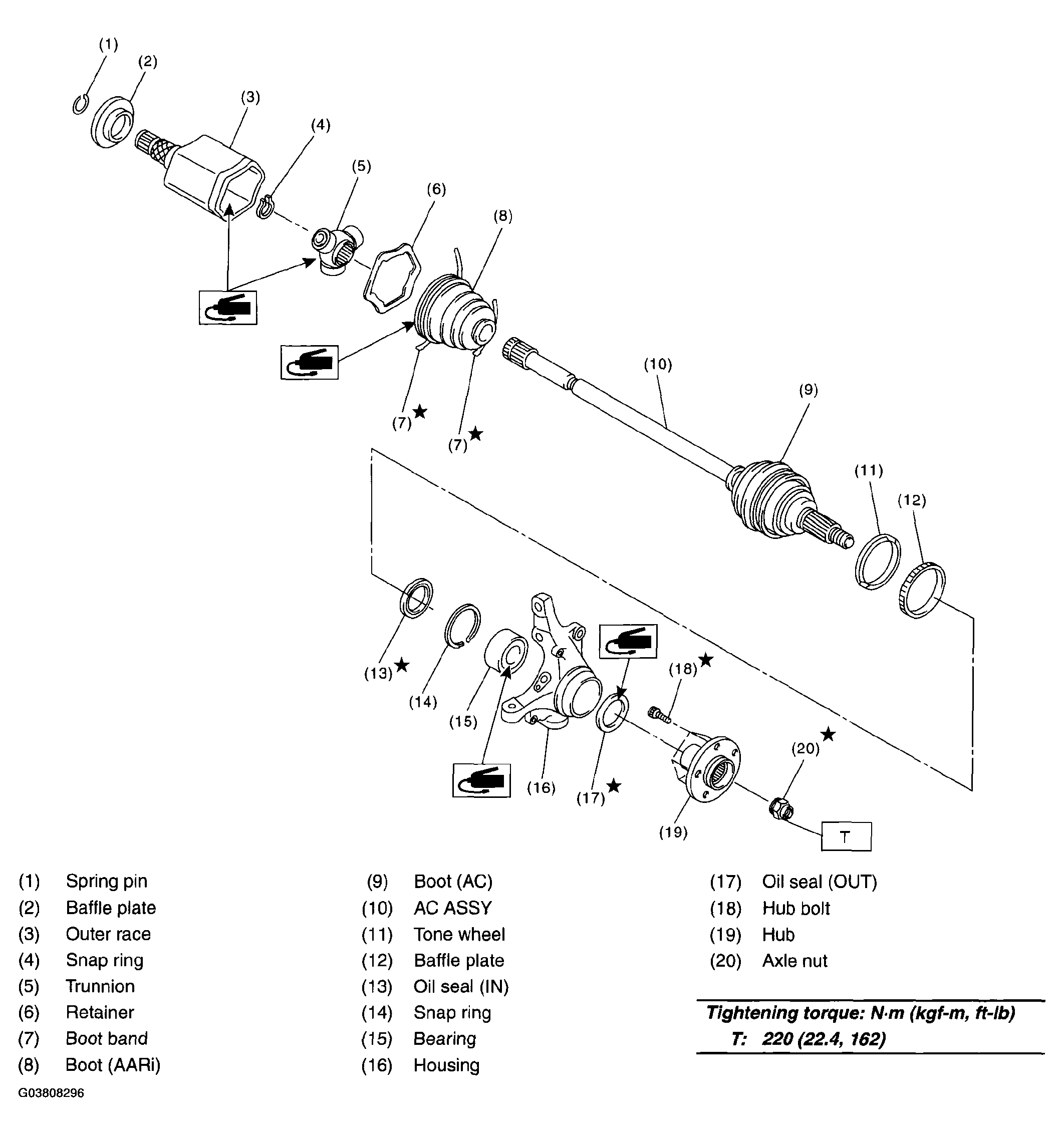

Fig 1: Exploded View Of Front Axle Shaft With Torque Specifications
G03808296Courtesy of SUBARU OF AMERICA, INC.
