Components With Torque Specifications

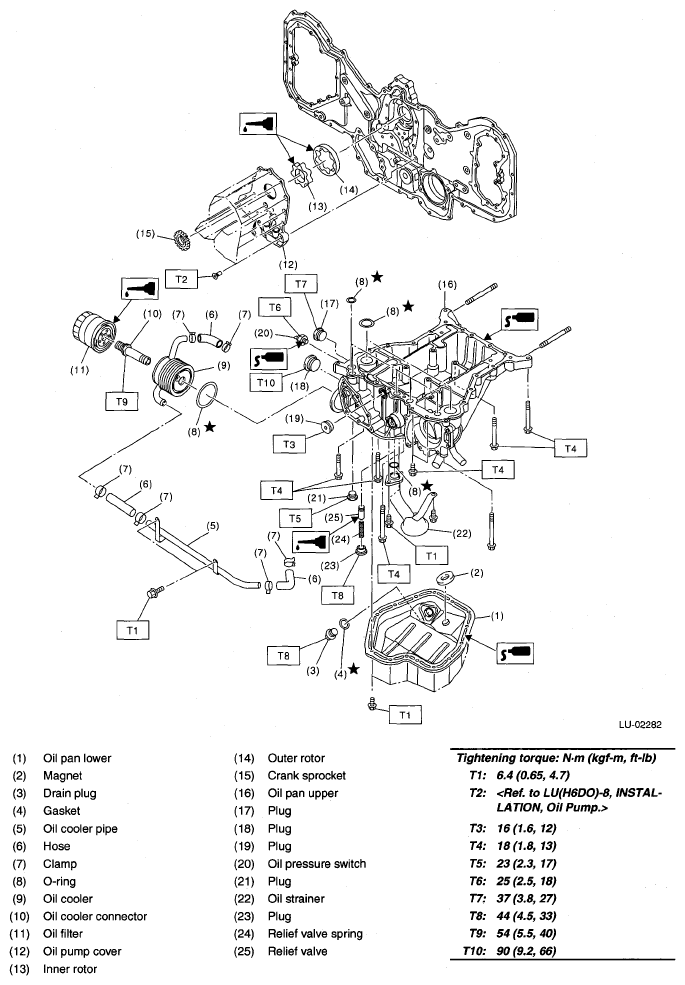

Fig 1: Oil Pan Replacement Components With Torque Specifications

G05345923

Courtesy of SUBARU OF AMERICA, INC.
