Home >> Subaru >> 2007 >> B9 Tribeca Base >> Repair and Diagnosis >> Electrical >> Charging Systems >> Starting System & Charging System (H6DO) >> General Description >> Components With Torque Specifications >> Generator

Components With Torque Specifications: Generator

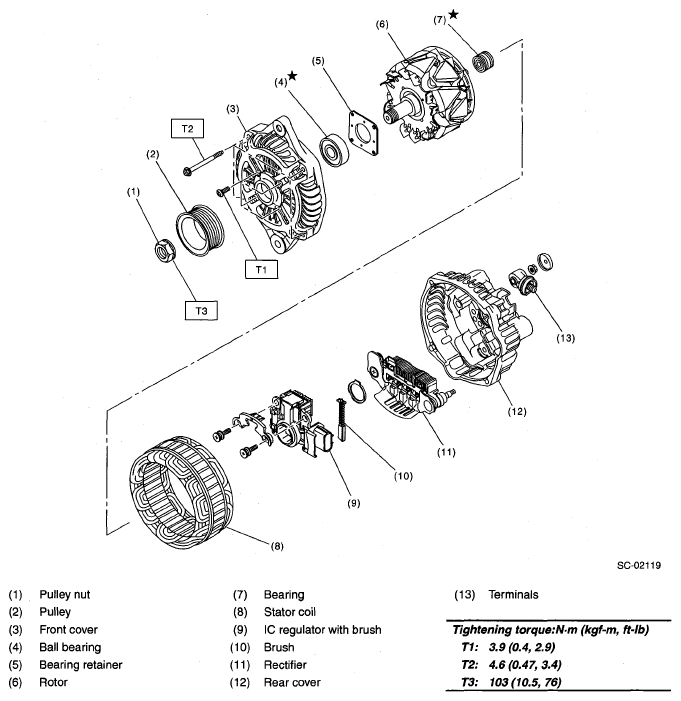

Fig 1: Generator Replacement Components With Torque Specifications

G05345976

Courtesy of SUBARU OF AMERICA, INC.
