Front Drive Shaft Assembly

FRONT DRIVE SHAFT ASSEMBLY SPECIFICATION

Type of drive shaft Axle diameter D mm (in) Axle length L mm (in)
EBJ+PTJ 26 (1.0) 388.5(15.30)

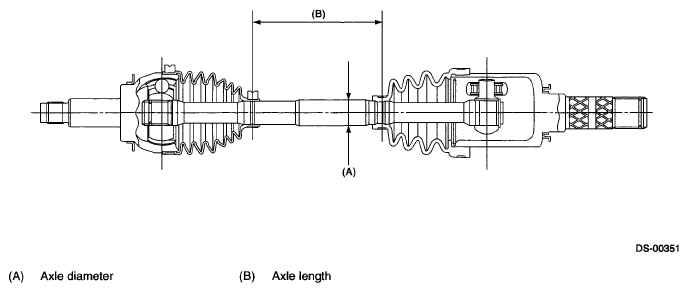

Fig 1: Identifying Front Drive Shaft Assembly Specification
G05032564Courtesy of SUBARU OF AMERICA, INC.
