Under Coat: Specification

Repair material:

Three bond 6115

1. Take care that under coat does not become attached to other locations than shown in the figures and the following locations.
   • High-temperature parts related to the exhaust pipe
   • Hoses, tubes, and harness parts
   • Installation surfaces of rear suspension, transmission, sub frame, etc.
2. Application area and application thickness

Fig 1: Application Thickness Chart

Courtesy of SUBARU OF AMERICA, INC.

• Side view

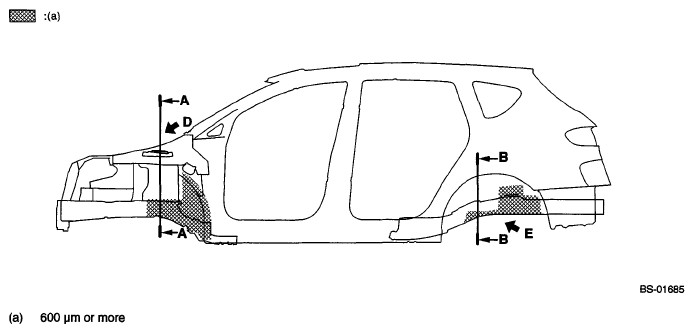

  Fig 2: Identifying Anticorrosion Wax Application Area - Side View

  Courtesy of SUBARU OF AMERICA, INC.
• Bottom view

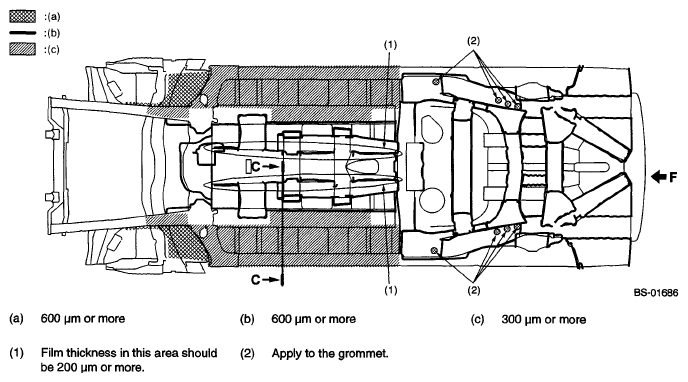

Fig 3: Identifying Anticorrosion Wax Application Area - Bottom View (1 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

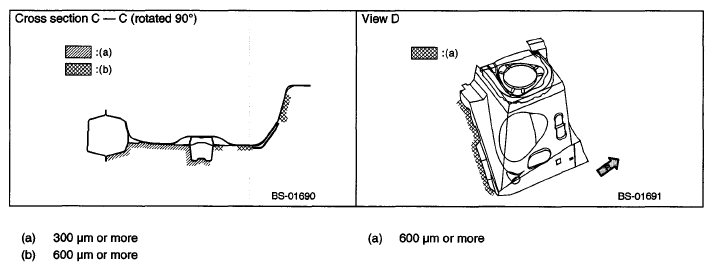

Fig 4: Identifying Anticorrosion Wax Application Area - Bottom View (2 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

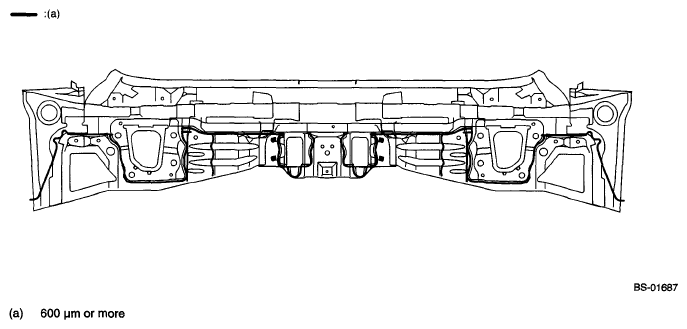

Fig 5: Identifying Anticorrosion Wax Application Area - Bottom View (3 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

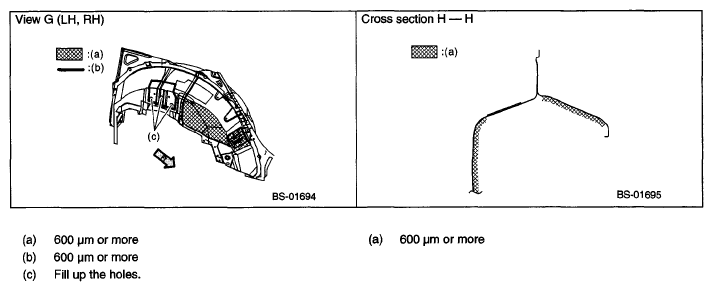

Fig 6: Identifying Anticorrosion Wax Application Area - Bottom View (4 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

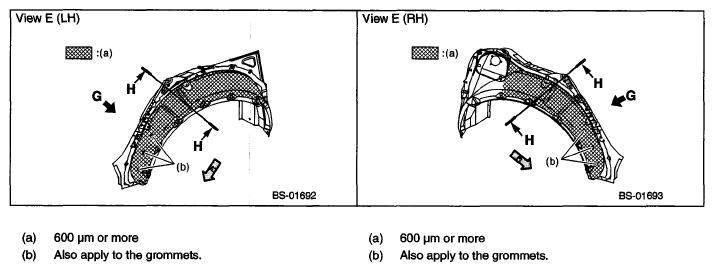

Fig 7: Identifying Anticorrosion Wax Application Area - Bottom View (5 Of 6)

Courtesy of SUBARU OF AMERICA, INC.

Fig 8: Identifying Anticorrosion Wax Application Area - Bottom View (6 Of 6)

Courtesy of SUBARU OF AMERICA, INC.
