Datum Dimensions: Measurement: Inside

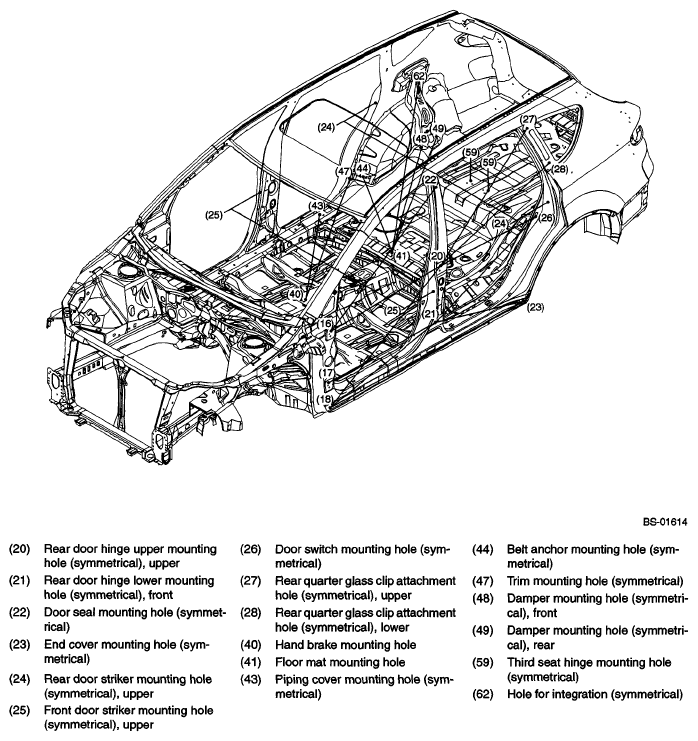

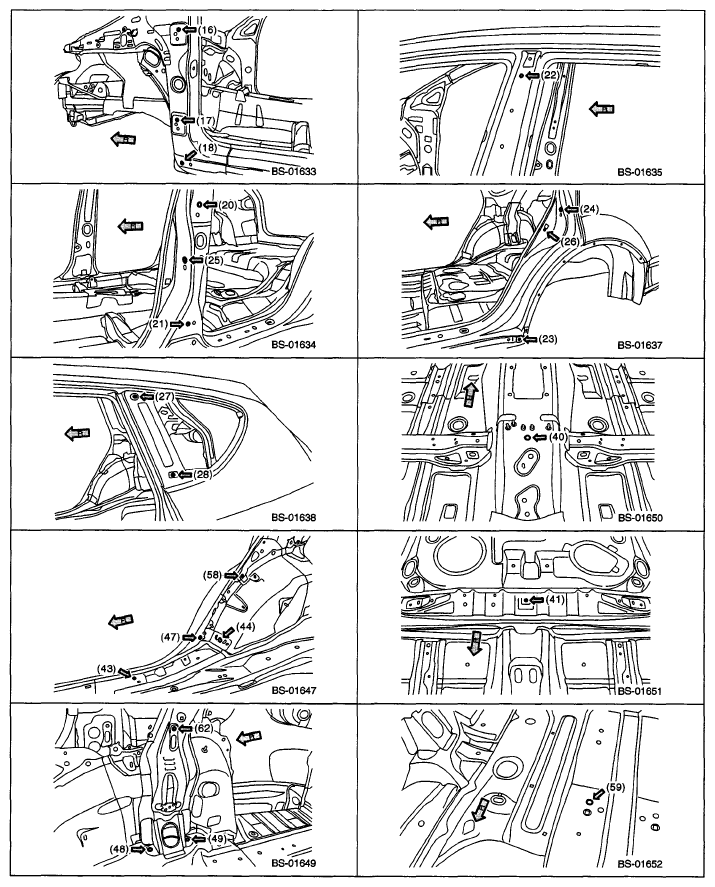

- View 1
DIMENSIONS CHART
| Point of measurement | Datum Dimension mm (in) |
|---|---|
| (16) LH - (20) LH | 1,017 (40.04) |
| (16) LH - (22) LH | 1,242 (48.90) |
| (17) LH - (21) LH | 990 (38.98) |
| (18) LH - (20) LH | 1,212 (47.72) |
| (18) LH - (21) LH | 997 (39.25) |
| (18) LH - (23) LH | 1,771 (69.72) |
| (20) LH - (26) LH | 954 (37.56) |
| (20) LH - (27) LH | 1,124 (44.25) |
| (20) LH - (28) LH | 1,111 (43.74) |
| (21) LH - (23) LH | 825 (32.48) |
| (21) LH - (26) LH | 1,049 (41.30) |
| (24) - (24) | 1,610 (63.39) |
| (25) - (25) | 1,612 (63.46) |
| (40) - (43) RH | 1,125 (44.29) |
| (40) - (47) RH | 1,375 (54.13) |
| (41) - (44) RH | 822 (32.36) |
| (41) - (48) RH | 1,031 (40.59) |
| (41) - (49) RH | 1,150 (45.28) |
| (41) - (62) RH | 1,309 (51.54) |
| (59) - (59) | 163 (6.24) |
NOTE:
- The reference points (40) and (41) are at the body center, while other points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.

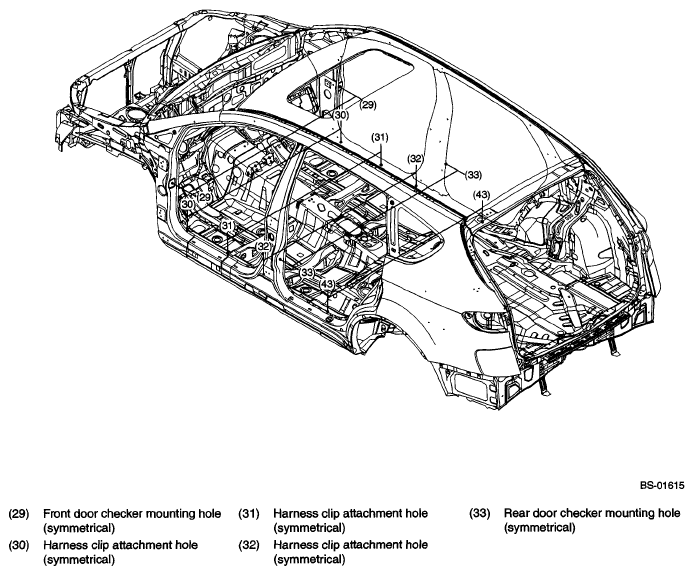

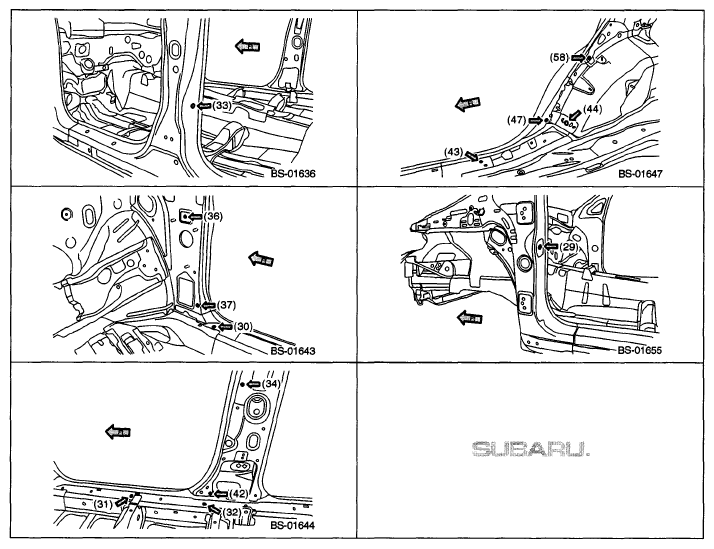

- View 2
DIMENSIONS CHART
| Point of measurement | Datum Dimension mm (in) |
|---|---|
| (29) - (29) | 1,566 (61.65) |
| (30) - (30) | 1,439 (56.65) |
| (31) - (31) | 1,439 (56.65) |
| (32) - (32) | 1,429 (56.26) |
| (33) - (33) | 1,553 (61.14) |
| (43) - (43) | 1,452 (57.17) |
NOTE:
- All reference points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.

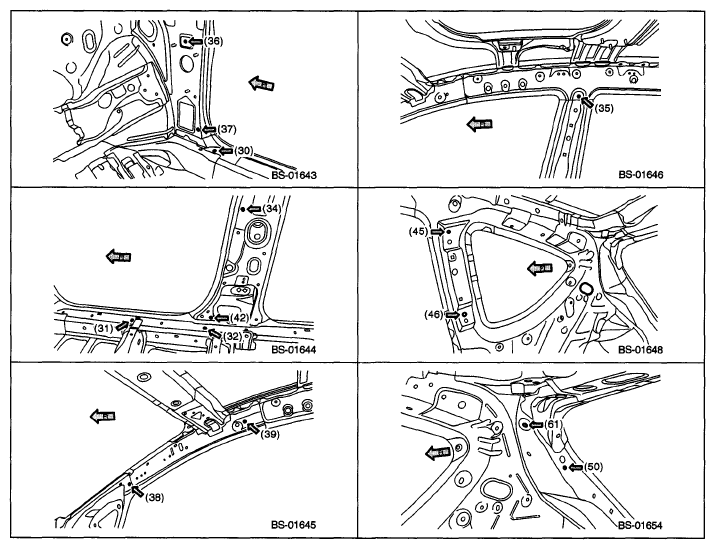

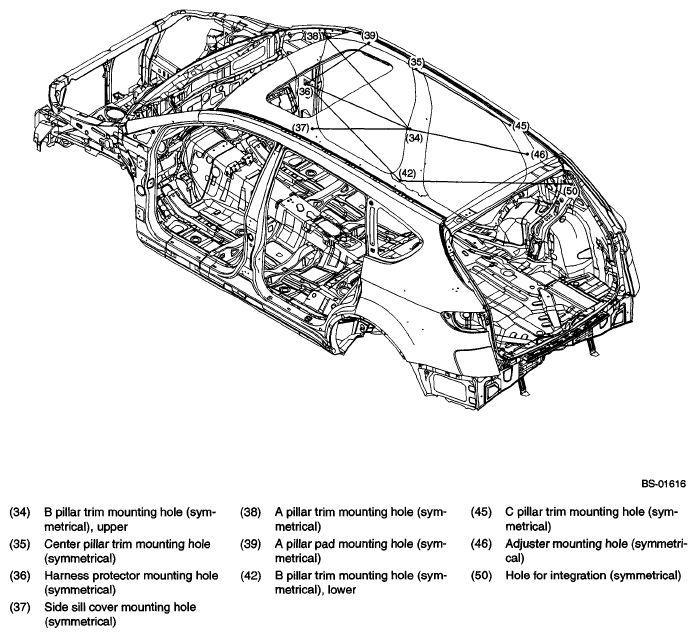

- View 3
DIMENSIONS CHART
| Point of measurement | Datum Dimension mm (in) |
|---|---|
| (34) RH - (36) RH | 979 (38.54) |
| (34) RH - (37) RH | 1,018 (40.08) |
| (34) RH - (38) RH | 871 (34.29) |
| (34) RH - (46) RH | 1,154 (45.43) |
| (35) RH - (45) RH | 860 (33.86) |
| (36) RH - (39) RH | 999 (39.33) |
| (36) RH - (42) RH | 941 (37.05) |
| (42) RH - (50) RH | 2,030 (79.92) |
NOTE:
- All reference points are left-right symmetrical.
- The dimensions are the actual dimensions between the reference points.
