Home >> Subaru >> 2006 >> Outback i, Standard >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Fuel Injection (Fuel Systems) (H4SO) >> 1. General Description >> B: Component >> 1. Intake Manifold

1. Intake Manifold

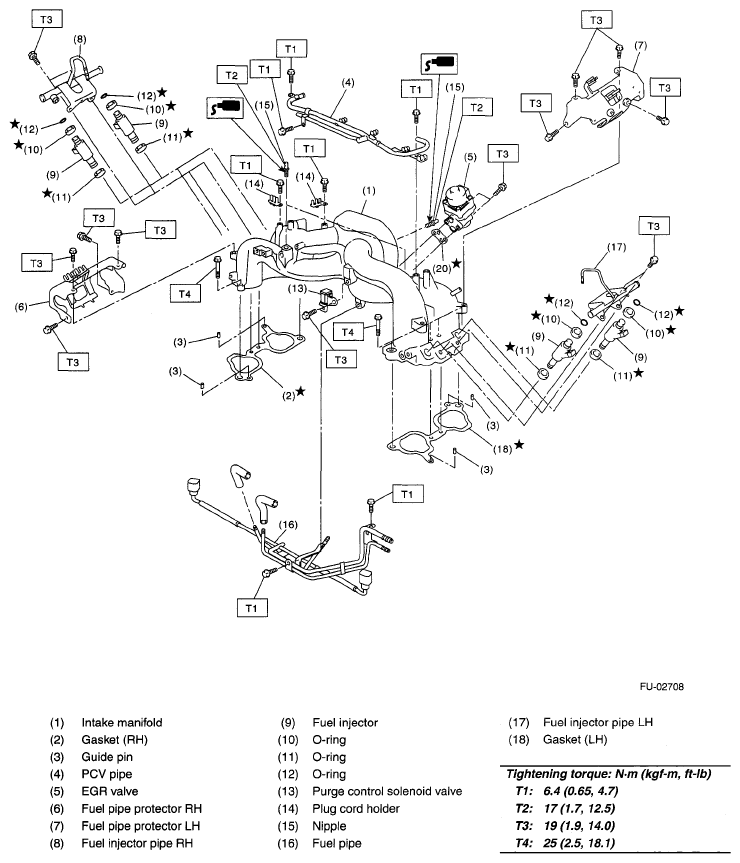

Fig 1: Intake Manifold Replacement Components With Torque Specifications

G05016735
