Transmission Case

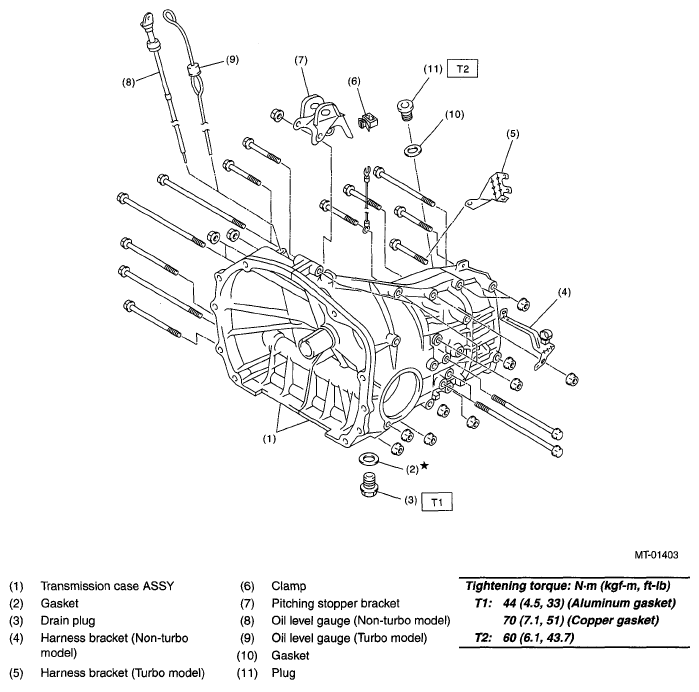

Fig 1: Transmission Case Replacement Components With Torque Specifications

Transmission case tightening torque

TRANSMISSION CASE TIGHTENING TORQUE SPECIFICATIONS

Bolt No.	Bolt size mm	Tightening torque: N.m (kgf-m, ft-lb)
(5) - (15)	8	25 (2.6, 18.5)
(1) - (4)
(16) - (17)	10	39 (4.0, 28.9)
